Small rectangular 1.47inch LCD development board with colour display and pin headers

LORDWORLD

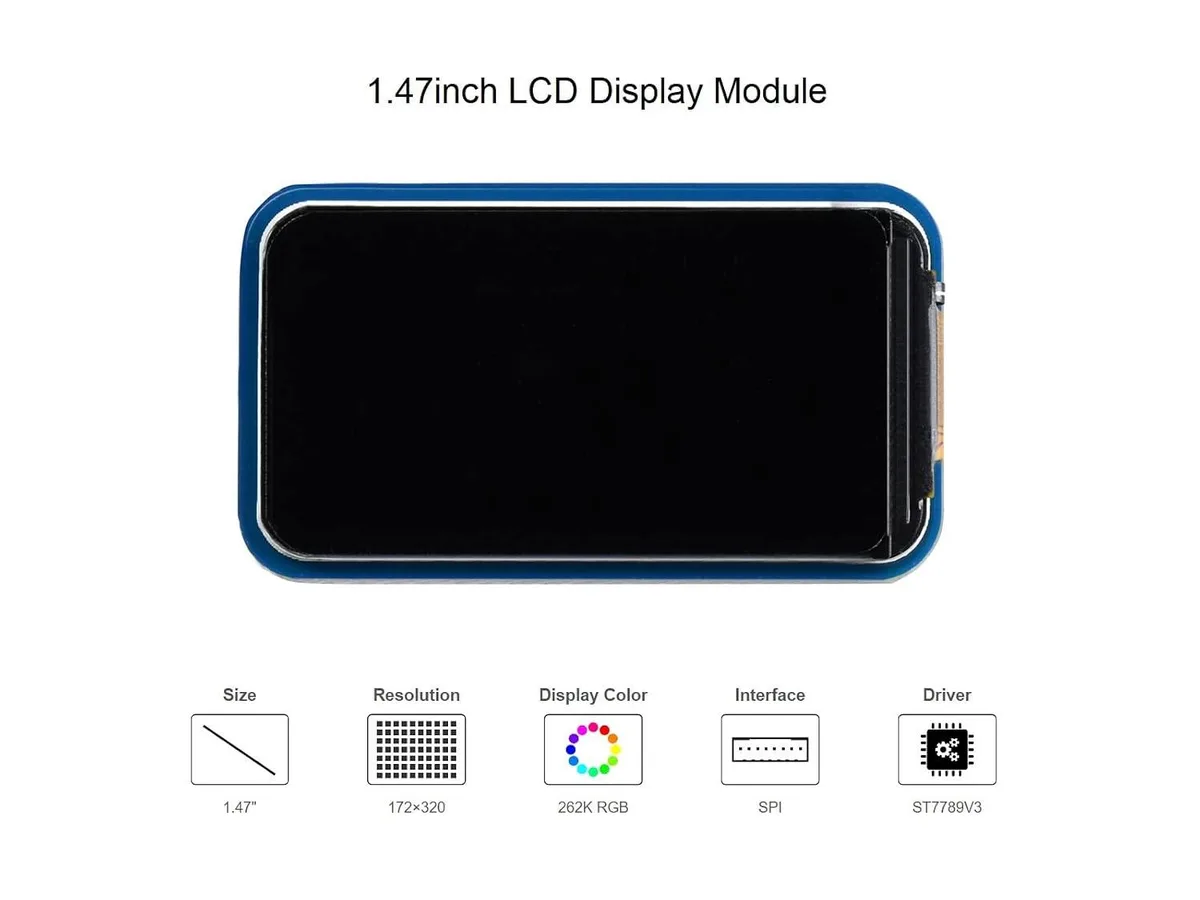

LORDWORLD 1.47inch LCD Module 172×320 262K RGB ST7789V3 SPI development board

SKU CH-H93T-5TGS8

1.47 inch LCD module shows 172×320 pixels in 262K colours over SPI with an embedded ST7789V3 driver for Raspberry Pi, Arduino and STM32 boards

  • 47 inch compact display fits tight enclosures
  • 172 by 320 pixel resolution renders sharp graphics
  • 262K RGB colours deliver vivid visual output
  • SPI interface reduces GPIO pin usage on host boards
  • Embedded ST7789V3 driver simplifies firmware integration

Compact SPI Display for Embedded Projects

This 1.47inch LCD module provides a 172×320 pixel IPS panel with 262K RGB colour depth. It targets hobbyists and engineers adding a small visual interface to Raspberry Pi, Arduino or STM32 boards. The embedded ST7789V3 driver handles pixel timing so the host only needs a standard SPI bus.

Resolution and Colour Headroom

The 172×320 grid suits status read-outs, simple graphics or text menus with clear, colourful rendering. Projects needing detailed maps, video playback or fine icon work will exceed the available pixel count and colour palette. Larger dashboards or photo previews are not practical on this canvas.

SPI Bus Constraints

Communication runs over a four-wire SPI link, minimising GPIO usage on the host controller. Refresh rate and frame latency are bounded by the serial clock speed the host can sustain; high-frame-rate animation is limited by this bandwidth. The interface does not support parallel RGB or MIPI data paths.

Besonderheiten

  • 47 inch compact display fits tight enclosures
  • 172 by 320 pixel resolution renders sharp graphics
  • 262K RGB colours deliver vivid visual output
  • SPI interface reduces GPIO pin usage on host boards
  • Embedded ST7789V3 driver simplifies firmware integration

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

Will the 1.47inch 172×320 SPI display share pins cleanly with my older Raspberry Pi HAT?

The SPI bus uses only a few GPIO lines, leaving most pins free for a HAT; check your HAT's pinout for conflicts on the SPI pins.

How can I verify the ST7789V3 driver is initialised correctly on first power-up?

Run a simple test script that fills the 172×320 panel with red, green and blue; if all 262K colours appear without artefacts the driver is working.

Does the module ship with a header or cable, or must I source Dupont wires separately?

The board arrives as a bare PCB with through-hole pads; you will need to solder a header or connect Dupont wires yourself.
