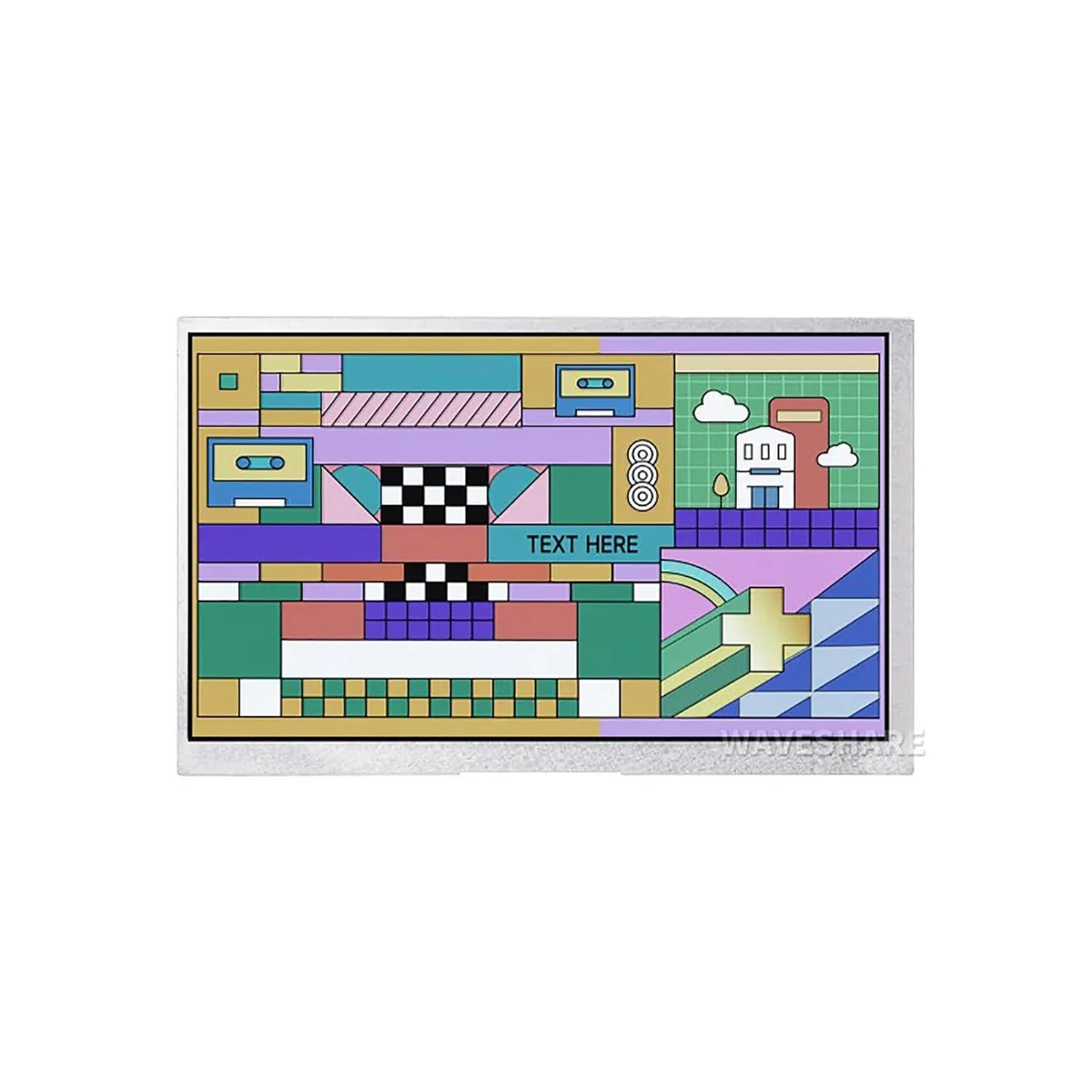

7 inch IPS display module with 40 pin header and DVI connector

LORDWORLD

LORDWORLD 7 Inch DVI IPS Display Module 1024×600 40PIN

SKU CH-9RJJ-JR3YS

A 7-inch IPS panel with a 1024×600 resolution and a 170° viewing angle connects via DVI with an onboard 40-pin header for Raspberry Pi Pico development

  • IPS panel gives wide 170° viewing angles
  • 1024×600 resolution delivers sharp visuals on 7 inch screen
  • DVI interface enables faster data communication
  • Onboard 40PIN header fits Raspberry Pi Pico directly
  • Built-in OSD menu allows quick brightness and contrast adjustment

7 Inch DVI Display for Raspberry Pi Pico

This 7 inch DVI display module uses an IPS panel with a 1024×600 resolution and a 170° viewing angle. It is designed for makers and developers building Raspberry Pi Pico projects that need a compact visual output. The onboard 40PIN header allows direct connection to the microcontroller board. Online resources and C/C++ examples support rapid development.

DVI Interface with Onboard 40PIN Header

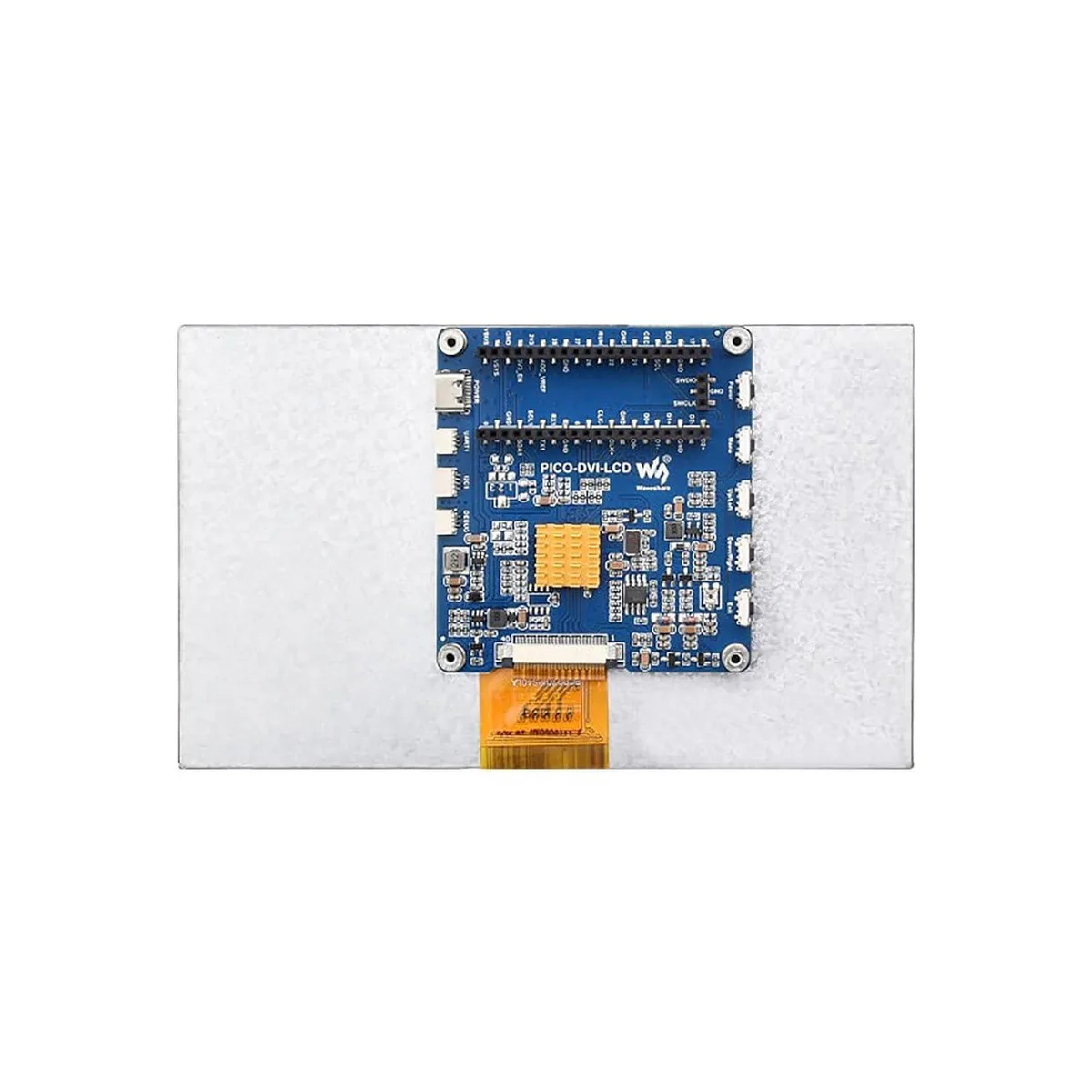

The DVI interface provides higher communication speed for the display signal. A 40PIN header is soldered onto the module to match the Raspberry Pi Pico pinout. This specific connector and interface combination determines whether the screen fits your Pico-based design without adapters or extra wiring.

Integration into Pico Projects

The module mounts directly onto a Raspberry Pi Pico via the 40PIN header, freeing up GPIO pins that would otherwise drive a parallel display. An onboard OSD menu handles brightness and contrast adjustment without software overhead. The panel suits advertisement picture display and similar embedded applications where a self-contained screen is required.

Besonderheiten

  • IPS panel gives wide 170° viewing angles
  • 1024×600 resolution delivers sharp visuals on 7 inch screen
  • DVI interface enables faster data communication
  • Onboard 40PIN header fits Raspberry Pi Pico directly
  • Built-in OSD menu allows quick brightness and contrast adjustment

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

What does the 1024×600 resolution actually look like on a 7 inch IPS panel in a real project?

The 1024×600 pixel count on a 7 inch IPS panel gives a readable desktop or custom UI with the 170° viewing angle keeping colours consistent from the side.

How does the DVI interface limit what I can drive this display with?

The DVI connection carries the video signal at higher communication speed than older parallel links, but the onboard 40PIN header ties the module directly to a Raspberry Pi Pico pinout.

What physical space and mounting does the 40PIN header need on my board?

The module mounts on a Raspberry Pi Pico through its 40PIN header, so the Pico footprint plus the 7 inch screen outline defines the required keep-out area.
