LORDWORLD binocular camera base board for CM4 with expander board and FFC cable, dual 8MP cameras, green PCB

LORDWORLD

LORDWORLD Binocular Camera Base Board for CM4 with Expander & FFC Cable

SKU CH-77ZJ-KX47E

Dual 8 MP camera board for Raspberry Pi Compute Module 4 with Ethernet, HDMI, microSD, USB, GPIO and M.2 M-key expansion

  • Dual 8MP cameras capture 3280 × 2464 resolution per sensor
  • Standard CM4 socket accepts both Lite and eMMC variants
  • Base board supplies ETH, HDMI, micro SD and USB ports
  • Included expander adds GPIO, second HDMI, USB and M.2 M-key slot
  • Ready for CM4 evaluation or direct integration into finished products

Binocular Camera Base for CM4

This LORDWORLD base board hosts a Raspberry Pi Compute Module 4 Lite or eMMC variant in a standard CM4 socket. It is designed for evaluating the CM4 or integrating the module into finished edge-computing products. The board exposes Ethernet, HDMI, microSD and USB interfaces for rapid prototyping.

Included Expander Board and FFC Cable

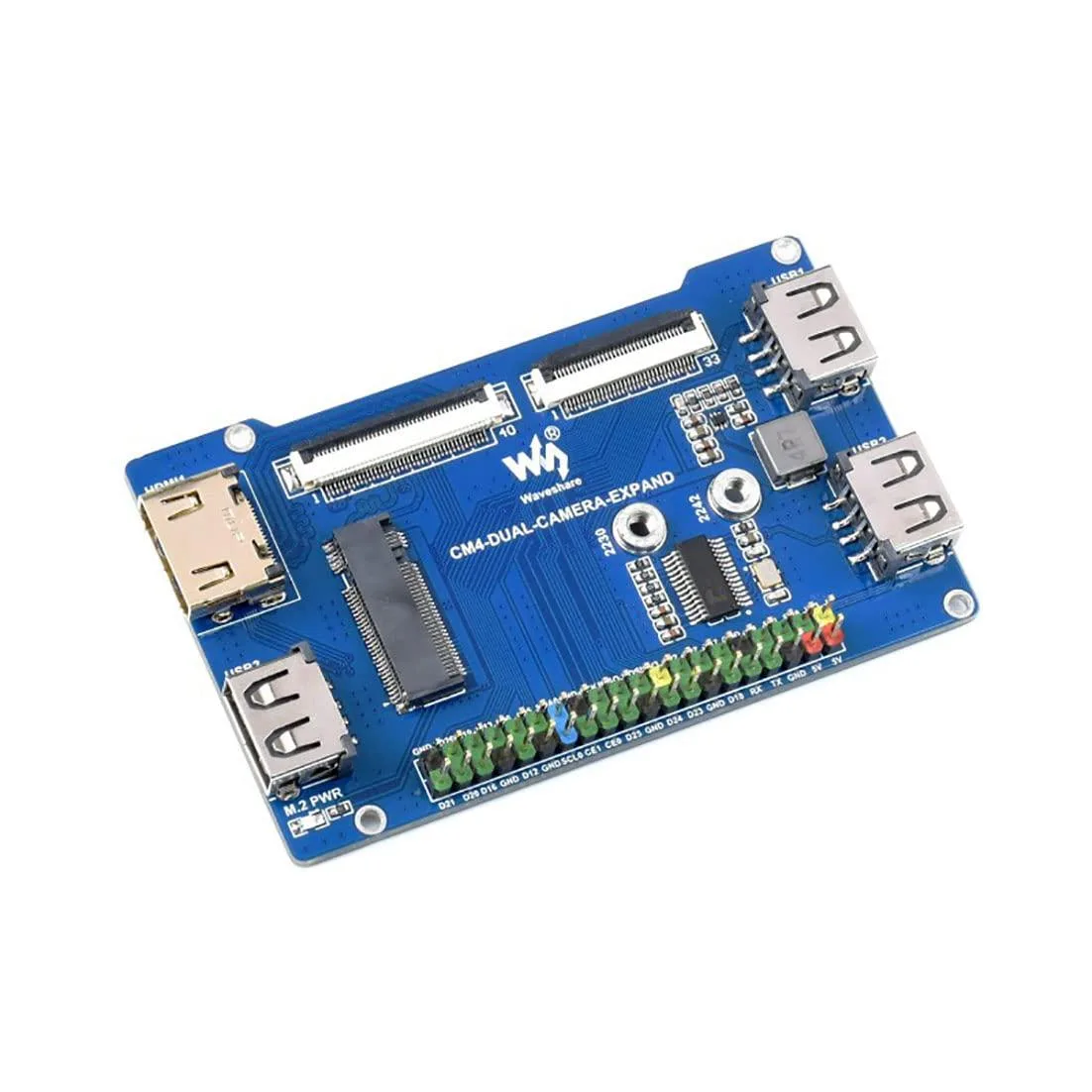

The bundled interface expander adds GPIO, a second HDMI port, additional USB and an M.2 M-key slot for storage or accelerator modules. A flexible flat cable connects the expander to the base board, allowing the two PCBs to be positioned separately inside an enclosure or test fixture.

Suited to Stereo-Vision Prototyping

Makers and engineers building dual-camera vision systems can use the paired 8 MP sensors, each capable of 3280 × 2464 resolution, for depth mapping or object recognition. Developers who need a single-camera carrier board or a different module form factor should consider alternative base boards.

Besonderheiten

  • Dual 8MP cameras capture 3280 × 2464 resolution per sensor
  • Standard CM4 socket accepts both Lite and eMMC variants
  • Base board supplies ETH, HDMI, micro SD and USB ports
  • Included expander adds GPIO, second HDMI, USB and M.2 M-key slot
  • Ready for CM4 evaluation or direct integration into finished products

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

Will the dual 8MP cameras or the CM4 socket need replacement after extended use?

The board uses a standard CM4 socket compatible with Lite and eMMC variants, and dual 8MP cameras rated at 3280 × 2464 resolution; both are solid-state components with no moving parts, so no scheduled replacement is required.

What is the first limit reached when recording dual 8MP video continuously?

Each camera captures up to 3280 × 2464 resolution; sustained recording is typically constrained by the CM4's memory bandwidth and storage write speed rather than the sensor itself.

How much heat and power does the board draw when both cameras and the M.2 expander run all day?

The base board adds ETH, HDMI, microSD and USB interfaces, while the expander provides GPIO, HDMI, USB and M.2 M-key; total heat and power depend on the CM4 module and any attached M.2 drive.
