Green rectangular circuit board with silver ports, black fan, and mounting holes

LORDWORLD

LORDWORLD CM5-PoE-BASE-A Development Board

SKU CH-VW8M-HTDWD

A Compute Module 5 carrier board with PoE power, NVMe SSD support, HDMI, USB, Ethernet, MIPI and TF card slot plus a built-in cooling fan

  • Powers and connects via a single Ethernet cable with PoE support
  • Accepts M.2 NVMe SSD for faster storage than TF cards
  • Compatible with every Raspberry Pi Compute Module 5 variant
  • Provides MIPI, HDMI, USB, Ethernet and TF card connectors
  • Includes a cooling fan and wall-mount holes for compact installation

CM5 Evaluation Board with PoE

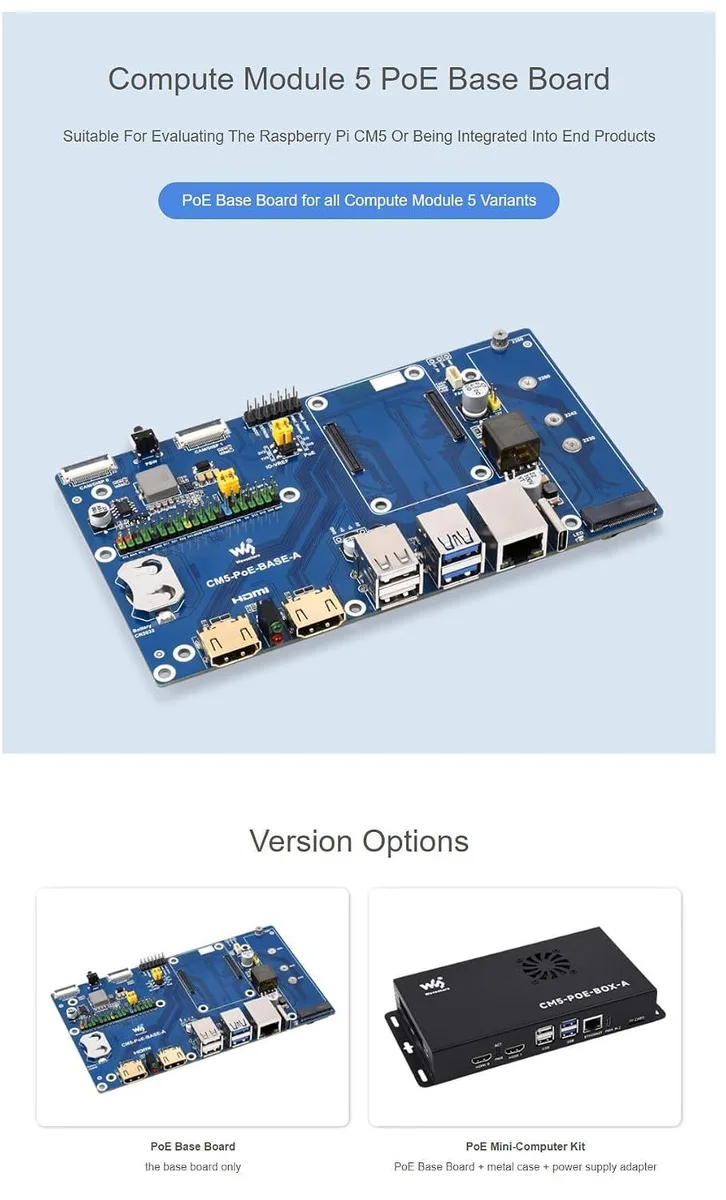

The LORDWORLD CM5-PoE-BASE-A is a development carrier board built for the Raspberry Pi Compute Module 5. It accepts every CM5 variant, giving engineers and makers a stable platform for prototyping or deploying edge-computing projects without designing a custom PCB.

PoE Power and M.2 NVMe Storage

Power over Ethernet delivers both data and electricity through one cable, cutting the need for a separate supply in cabinet or remote installs. An onboard M.2 slot takes an NVMe drive for faster boot and I/O than a TF card, while MIPI, HDMI, USB, Ethernet and TF connectors cover display, storage and peripheral needs. A fitted cooling fan and wall-mount holes keep thermals managed in tight enclosures.

Replaces Ad-Hoc Carrier Boards

This board removes the effort of spinning a custom baseboard when moving a CM5 from bench test to field trial. The jump is worth it when you need PoE simplicity, NVMe speed and a rugged mountable form factor in one validated design; it is not for buyers who only need a basic breakout or who plan to integrate the module into an existing proprietary carrier.

Besonderheiten

  • Powers and connects via a single Ethernet cable with PoE support
  • Accepts M.2 NVMe SSD for faster storage than TF cards
  • Compatible with every Raspberry Pi Compute Module 5 variant
  • Provides MIPI, HDMI, USB, Ethernet and TF card connectors
  • Includes a cooling fan and wall-mount holes for compact installation

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

Does the Ethernet port on this board provide both data and power to the Compute Module 5?

Yes, the board includes Power over Ethernet so a single Ethernet cable delivers network connectivity and power to the CM5.

What mounting holes are provided for securing the board in an enclosure?

The board has wall-mount holes for fixed installation in space-constrained environments.

How is the Compute Module 5 fitted onto this base board, and what common mistake should be avoided?

Align the CM5 with the high-density connector and press evenly until it clicks; the common error is seating it at an angle which bends connector pins.
