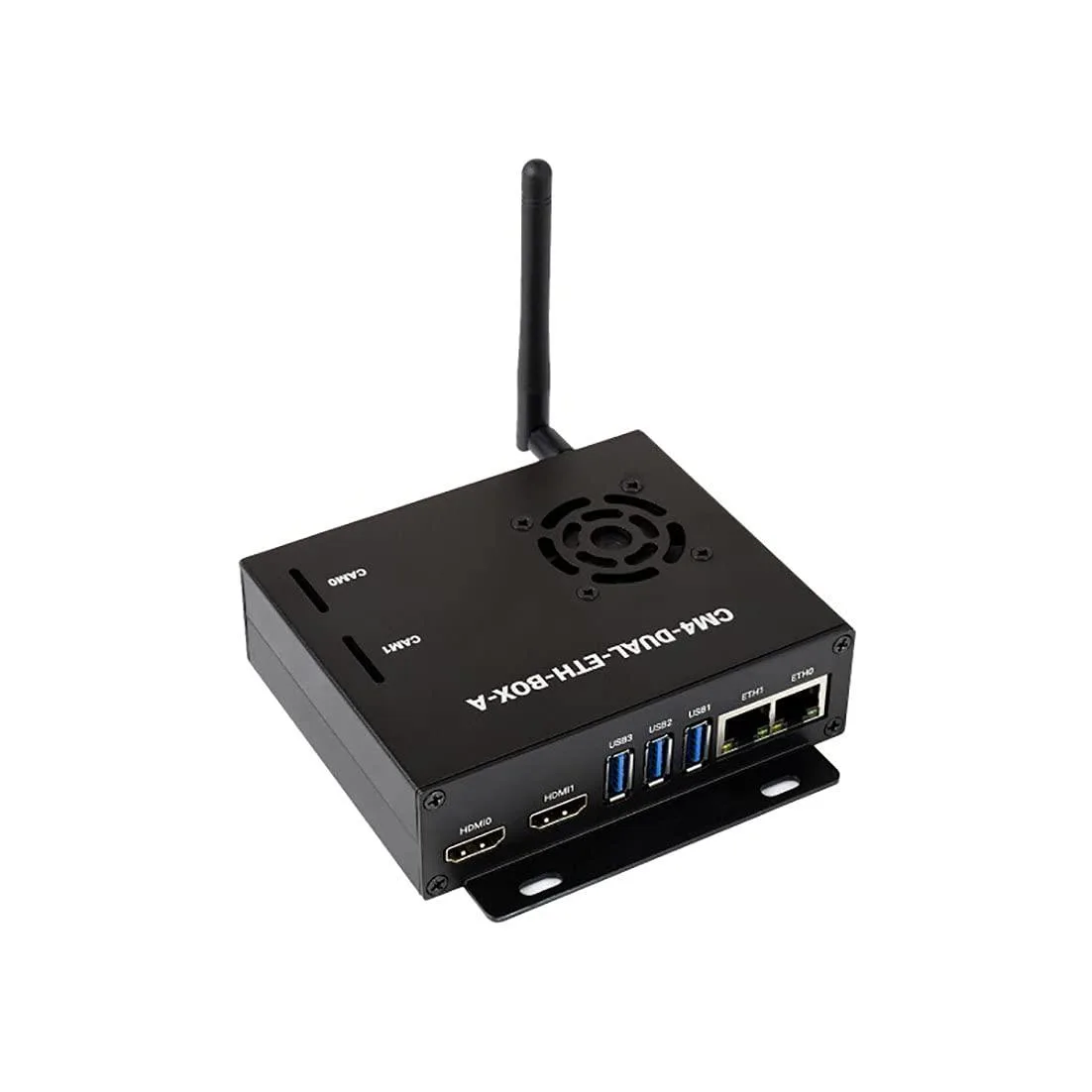

Metal case mini computer with dual Ethernet ports, cooling fan and wall mount holes

LORDWORLD

LORDWORLD Dual Gigabit Ethernet Mini-Computer for CM4 with Fan Metal Case

SKU CH-A8XC-6KREJ

A metal-cased carrier board for Raspberry Pi Compute Module 4 adds dual Gigabit Ethernet, CSI, DSI, RTC, HDMI, microSD and USB ports plus a cooling fan and wall-mount holes

  • Ready for Compute Module 4 with Waveshare CM4-DUAL-ETH-BASE inside
  • Dual Gigabit Ethernet ports for high-speed wired networking
  • Rich I/O including CSI, DSI, HDMI, microSD and USB
  • Active cooling fan plus vented metal case for heat dissipation
  • Wall-mount holes on two sides for flexible installation

LORDWORLD CM4 Dual Ethernet Base

This LORDWORLD mini-computer integrates the Waveshare CM4-DUAL-ETH-BASE board inside a metal enclosure. It accepts a Raspberry Pi Compute Module 4, which must be purchased separately. A cooling fan and airflow vents are included for thermal management. The case features precise cut-outs with clear labels for every exposed connector.

Makers building binocular vision

The rich interface set covers dual Ethernet, CSI, DSI, RTC, HDMI, micro SD and USB, suiting camera-heavy or networked projects. Wall-mount holes on two sides simplify fixed installations. Buyers who need a Compute Module 4 included in the package should look elsewhere, as the module is not supplied.

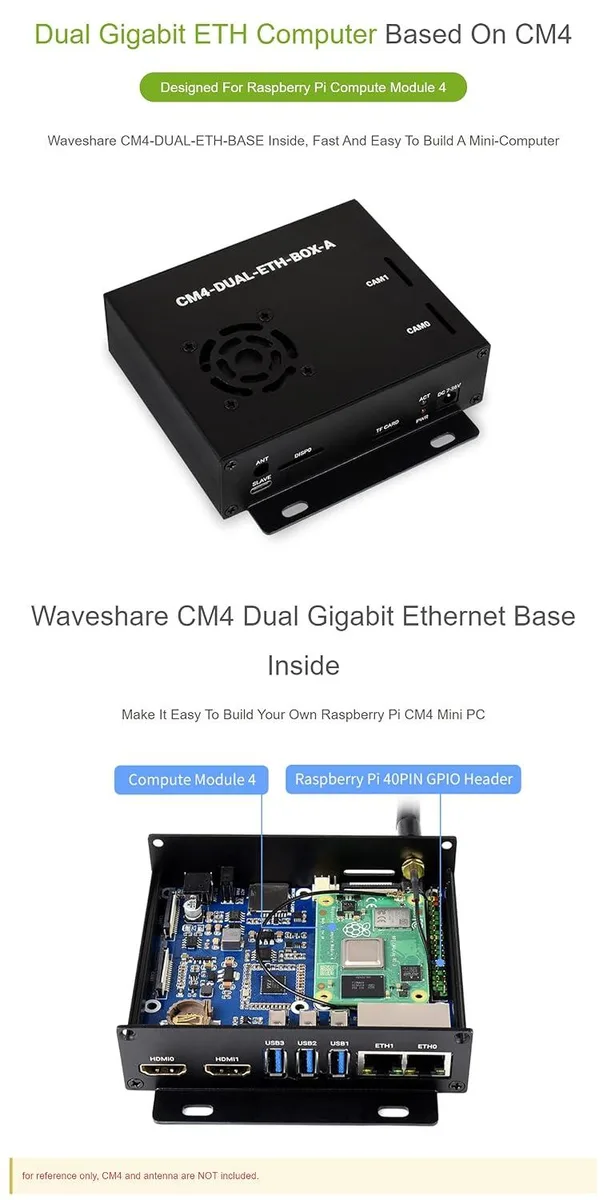

Waveshare CM4-DUAL-ETH-BASE carrier board inside

The carrier board determines every available port and the physical layout of the finished unit. Because the Compute Module 4 is not included, the board choice is the single specification that defines whether this enclosure matches the intended application.

Besonderheiten

  • Ready for Compute Module 4 with Waveshare CM4-DUAL-ETH-BASE inside
  • Dual Gigabit Ethernet ports for high-speed wired networking
  • Rich I/O including CSI, DSI, HDMI, microSD and USB
  • Active cooling fan plus vented metal case for heat dissipation
  • Wall-mount holes on two sides for flexible installation

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

Which Compute Module 4 variants does the Waveshare CM4-DUAL-ETH-BASE board inside this metal case accept?

The carrier board is built for any Raspberry Pi Compute Module 4, with or without on-board eMMC, and any RAM size; simply plug the module into the onboard socket.

How loud does the included cooling fan get when the system runs continuously inside the closed metal enclosure?

The supplied fan spins at a low, steady speed that stays barely audible in a quiet room even after hours of sustained load, while the vented aluminium case keeps surface temperatures comfortable to touch.

What additional hardware must I already have to boot this unit as a working mini-computer?

You need a Raspberry Pi Compute Module 4, a micro-SD card (or a CM4 with eMMC) for the operating system, a 5 V USB-C power supply rated at least 3 A, and an HDMI display if you want local video output.
