Small green circuit board with silver camera module and gold connector

LORDWORLD

LORDWORLD OV5647-70 5MP OIS Camera Module 1080p

SKU CH-Z891-F7FAW

A 5-megapixel camera module with dual-axis optical image stabilisation for steady 1080p video on Raspberry Pi boards

  • Optical image stabilisation keeps footage steady with dual-axis compensation ± 5°
  • 5 MP OV5647 sensor captures 1080p HD video for clear recordings
  • Compact module integrates directly into Raspberry Pi projects without extra bulk
  • Compatible with Pi 4B, 3B+, 3A+, Zero and Zero 2 W out of the box
  • Works with Compute Module 3, 3+ and 4 when an adapter board is added

5MP OIS camera for Raspberry Pi projects

The LORDWORLD OV5647-70 module adds optical image stabilisation to a five-megapixel sensor, recording 1080p video with dual-axis shake correction of up to five degrees. It targets makers building sports cameras, robotics vision or wearable devices that need steadier footage in a tiny footprint.

Check Pi model and adapter needs

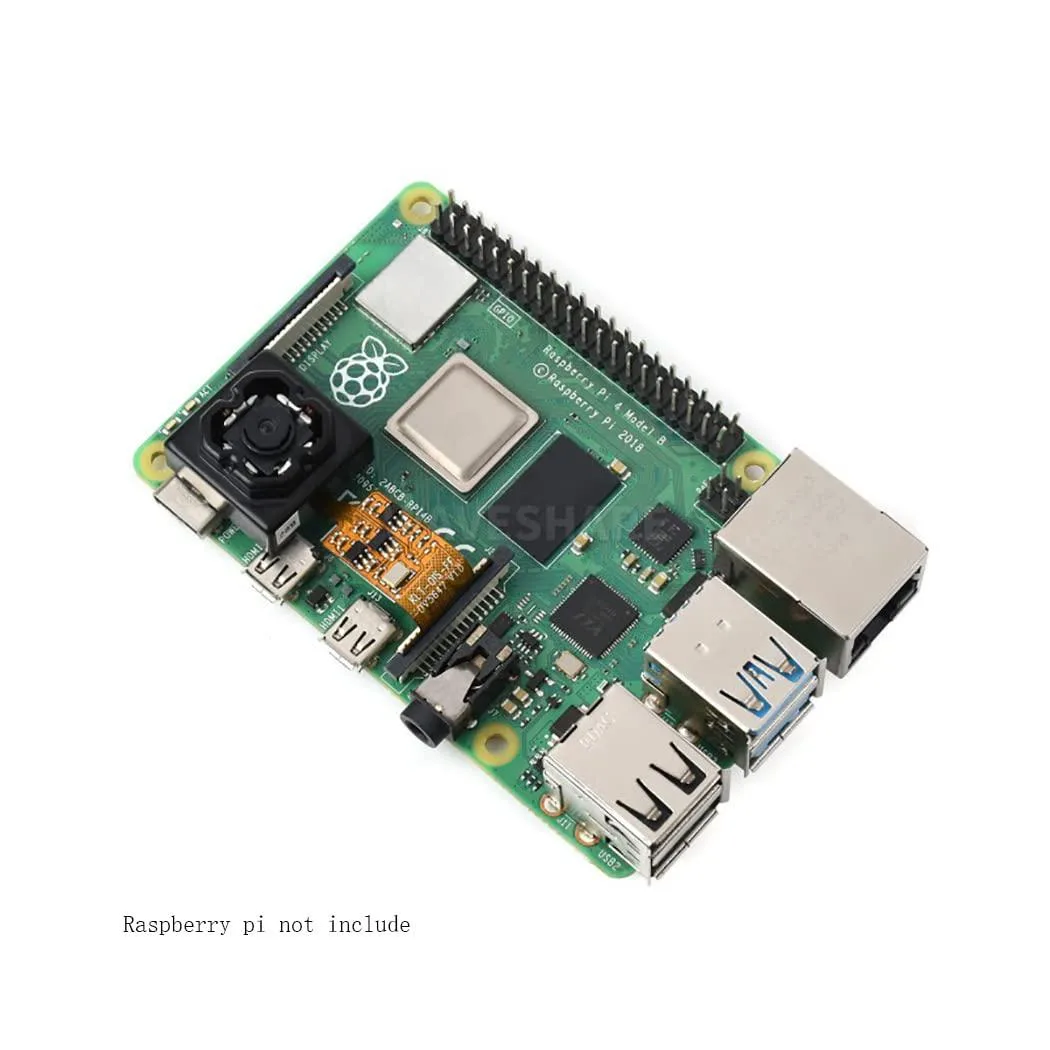

The board connects directly to Raspberry Pi 4B, 3B+ and 3A+ CSI ports. Zero, Zero 2 W and Compute Module 3, 3+ or 4 require an extra adapter board not included here. Verify your specific Pi variant and CSI cable length before ordering.

Compact build with direct CSI mount

The miniature PCB plugs straight into the Pi camera connector, keeping the assembly thin enough for tight enclosures. No separate power or data cables are needed, so the module stays secure on moving platforms such as drones or handheld rigs.

Besonderheiten

  • Optical image stabilisation keeps footage steady with dual-axis compensation ± 5°
  • 5 MP OV5647 sensor captures 1080p HD video for clear recordings
  • Compact module integrates directly into Raspberry Pi projects without extra bulk
  • Compatible with Pi 4B, 3B+, 3A+, Zero and Zero 2 W out of the box
  • Works with Compute Module 3, 3+ and 4 when an adapter board is added

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

Does the LORDWORLD OV5647-70 module ship with a ribbon cable or adapter board for the Raspberry Pi Zero?

The module connects directly to standard Raspberry Pi CSI ports on models 4B, 3B+ and 3A+. For Zero, Zero 2 W and Compute Modules an extra adapter board is required and is not included.

Should I choose this 5MP OIS module or a fixed-focus alternative for a handheld sports camera?

Choose this module when you need dual-axis optical image stabilisation with ±5° compensation to reduce blur from hand shake during 1080P recording. A fixed-focus module lacks that stabilisation.

What does the 1080P video spec mean for frame rate when the camera is mounted on a Raspberry Pi 4B?

The sensor supports 1080P HD video recording; the achievable frame rate depends on the Pi 4B’s CSI bandwidth and the encoding pipeline you configure in software.
