Small green circuit board with two flat flexible cable connectors and a 16-pin ribbon cable attached

LORDWORLD

LORDWORLD PCIe to 2-CH PCIe HAT Adapter for Raspberry Pi 5 Gen2 FFC Board

SKU CH-3FCR-C9TGD

Adds two PCIe FFC channels to a Raspberry Pi 5, enabling dual HATs at 2.0 speeds with included 16-pin cable

  • Dual PCIe HATs run simultaneously from one 16-pin port
  • PCIe 2.0 lanes deliver up to 5 Gbps for NVMe drives
  • Stack multiple HATs for robotics or server builds
  • Included 16-pin cable enables plug-and-play setup with no soldering
  • Reinforced FFC connectors ensure long-term reliability in compact projects

Pi 5 PCIe Expansion Board

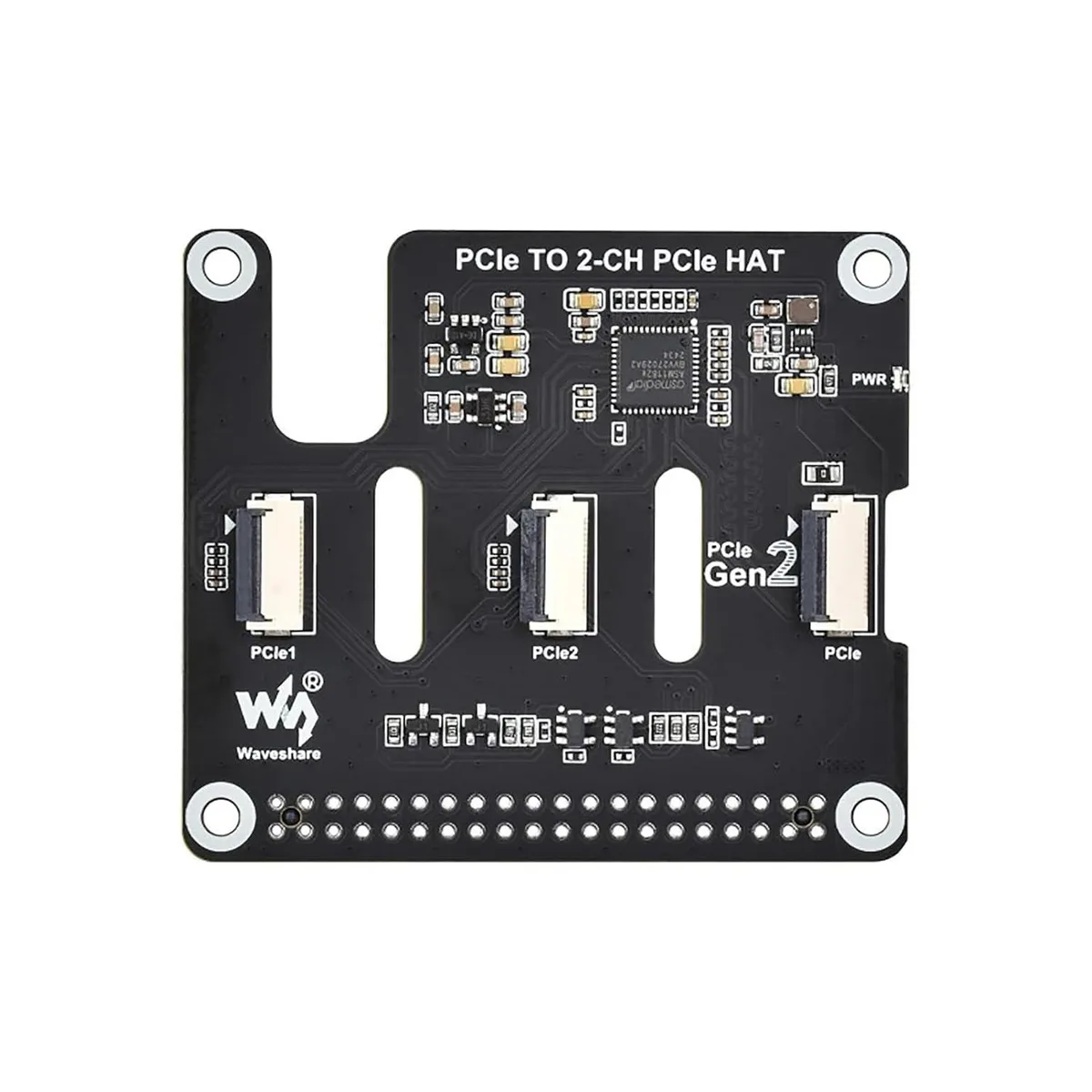

This adapter converts the Raspberry Pi 5's 16-pin PCIe port into two FFC connectors, allowing two PCIe HATs to operate at once. It targets makers and developers who need more high-speed I/O than the single native slot provides.

Build Integration Requirements

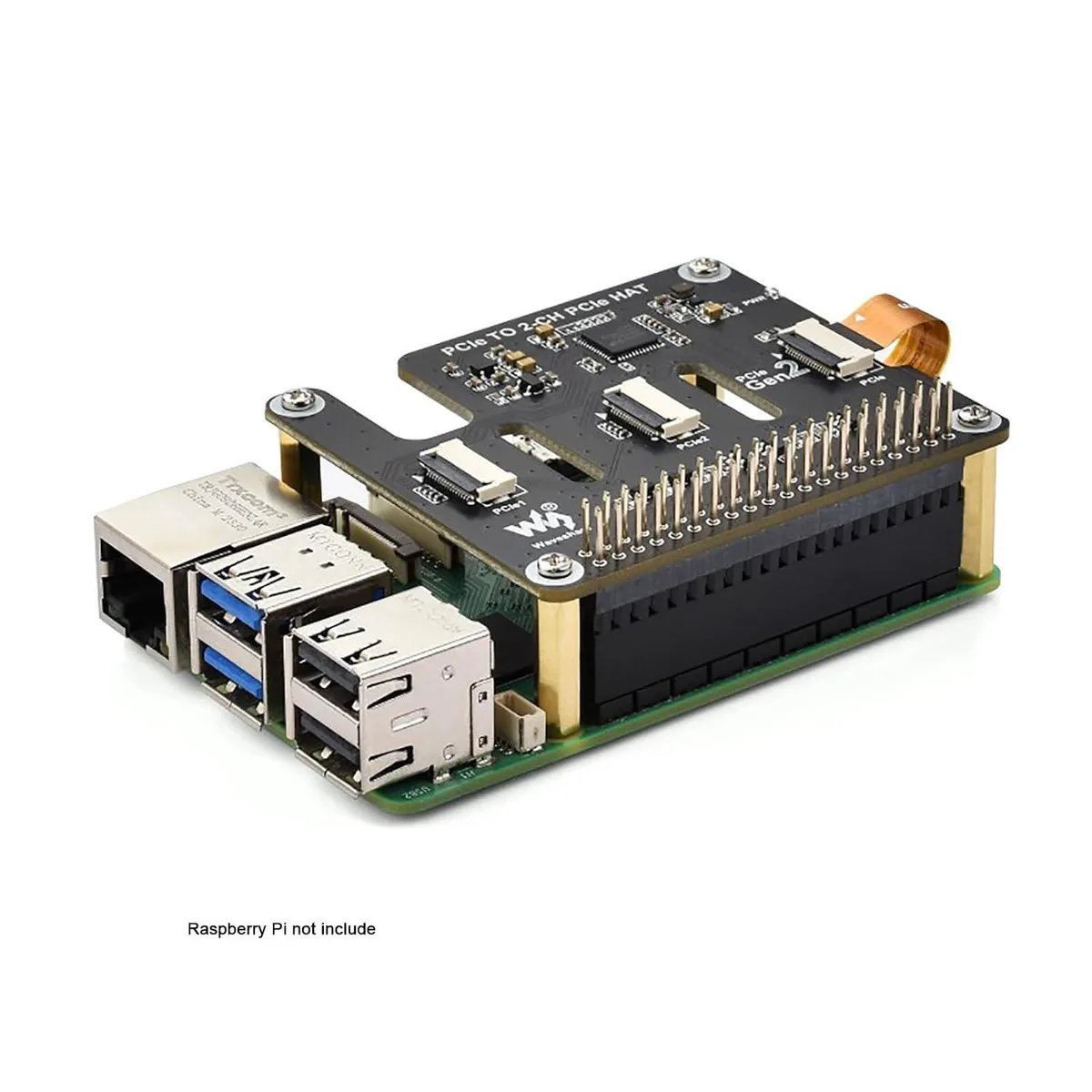

A 16-pin PCIe cable is included for direct connection to the Pi 5, and no soldering is needed. The board adds dual Gen2 lanes so peripherals such as NVMe drives can be attached without occupying the sole onboard interface.

Sustained Load Behaviour

The adapter runs at PCIe 2.0 speeds up to 5 Gbps per lane, maintaining stable throughput during continuous data transfers. It is not suited for projects that require PCIe 3.0 or higher bandwidth.

Besonderheiten

  • Dual PCIe HATs run simultaneously from one 16-pin port
  • PCIe 2.0 lanes deliver up to 5 Gbps for NVMe drives
  • Stack multiple HATs for robotics or server builds
  • Included 16-pin cable enables plug-and-play setup with no soldering
  • Reinforced FFC connectors ensure long-term reliability in compact projects

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

How many PCIe HATs can the 2-CH FFC board support at once?

The adapter provides two FFC connectors, so two PCIe HATs can be attached simultaneously to the Pi 5's 16-PIN port.

Does the Gen2 link generate noticeable heat when running NVMe drives continuously?

The board is a passive FFC adapter with no active components, so it adds no measurable heat beyond the attached HATs themselves.

What cable is required to connect this adapter to the Raspberry Pi 5?

A 16-PIN PCIe FFC cable is included in the package for direct connection to the Pi 5's native PCIe port.
