Green circuit board with four M.2 slots and LED indicators

LORDWORLD

LORDWORLD PCIe to 4-Ch NVMe M.2 Adapter Board for Raspberry Pi 5

SKU CH-JZ8D-DXB6N

Adds four NVMe M.2 slots to a Raspberry Pi 5 via PCIe Gen2 x1, supports 2230 to 2280 drives, bootable, with 7V-24V power input and LED indicators

  • Add four NVMe SSDs for massive Pi 5 storage
  • Power Pi and drives from 7V-24V DC input
  • PCIe Gen2 x1 link beats microSD speeds
  • LED status lights show drive activity live
  • 16-pin cable connects board to Pi 5 instantly

Raspberry Pi 5 NVMe Expansion

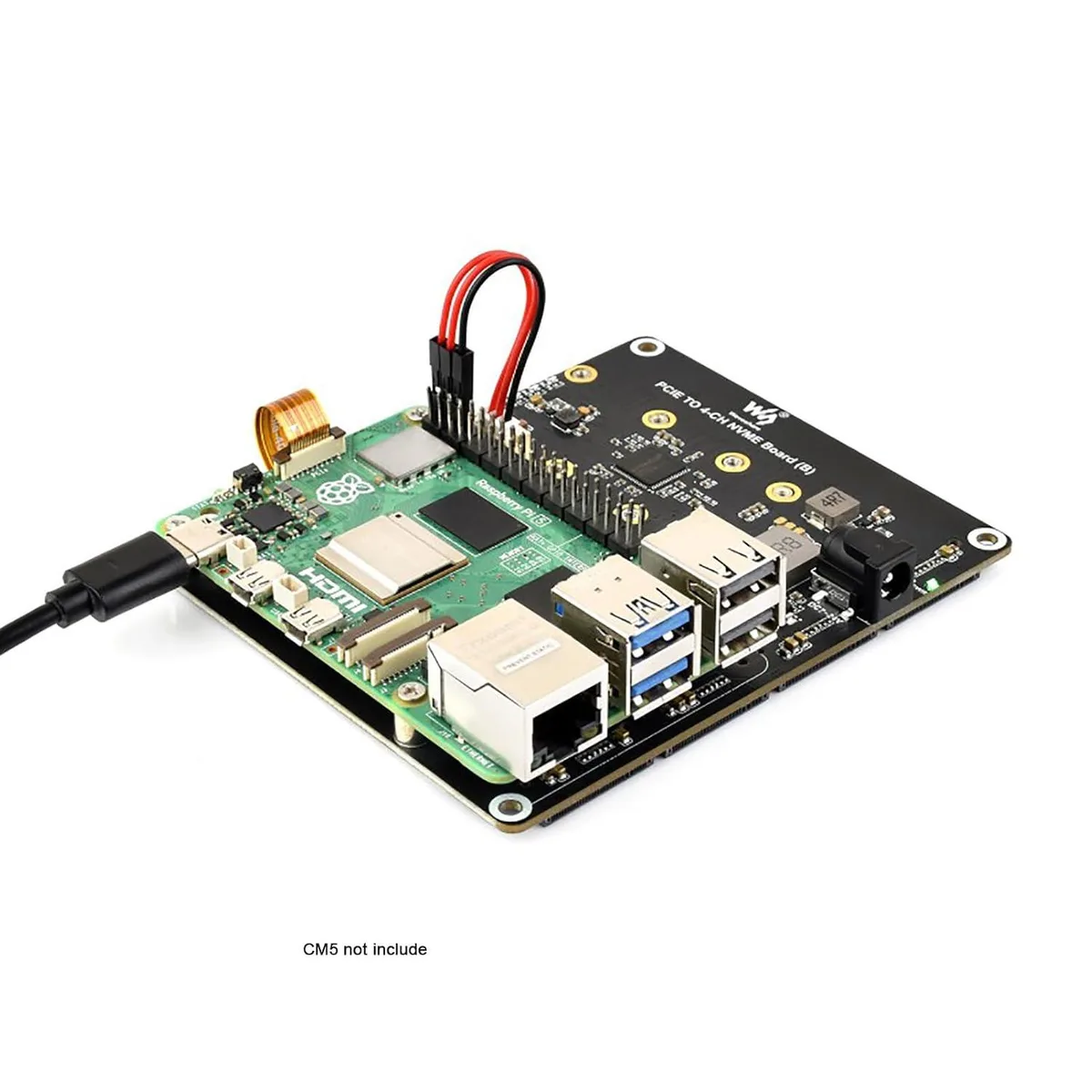

The LORDWORLD adapter connects four M.2 NVMe SSDs to a Raspberry Pi 5 through a PCIe Gen2 x1 lane. It accepts 2280, 2260, 2242 and 2230 form factors and supports booting directly from the attached drives. A 16-pin PCIe cable is included for a direct connection to the board.

Suits multi-drive edge projects

Builders running AI inference, video recording or local databases gain faster storage than a microSD card can provide. The board also powers the Pi 5 itself through a 3-pin 5V/5A header or a 7V-24V DC jack. Users needing more than four drives or a PCIe x4 link should look elsewhere.

Capacity and headroom

Four slots give enough room for mirrored pairs or a large single volume, handling typical edge-computing workloads without bottlenecking the Pi 5 CPU. The single Gen2 lane limits peak throughput when all drives are active simultaneously, so sustained multi-stream writes may saturate the bus.

Besonderheiten

  • Add four NVMe SSDs for massive Pi 5 storage
  • Power Pi and drives from 7V-24V DC input
  • PCIe Gen2 x1 link beats microSD speeds
  • LED status lights show drive activity live
  • 16-pin cable connects board to Pi 5 instantly

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

What Raspberry Pi model and cable do I need to connect this 4-channel NVMe adapter?

The board is designed for Raspberry Pi 5 and includes a 16PIN PCIe cable for the connection.

Will my existing M.2 2280 NVMe drives fit the four slots on this adapter?

Yes, each slot accepts M.2 NVMe drives in 2230, 2242, 2260 and 2280 form factors.

How do the onboard LEDs confirm the adapter and SSDs are working after setup?

The LED indicators show real-time SSD activity and power status so you can verify operation at a glance.
