PCIe HAT for Raspberry Pi 5 with three USB 3.2 ports and Gigabit Ethernet

LORDWORLD

LORDWORLD PCIe to Gigabit Ethernet and USB 3.2 Gen1 HAT for Raspberry Pi 5 development board

SKU CH-ZQDW-T110Q

Adds three USB 3.2 Gen1 ports and a gigabit Ethernet link to a Raspberry Pi 5 via its 16-pin PCIe interface, with onboard power monitoring

  • Adds three USB 3.2 Gen1 ports for extra peripherals via 16-pin PCIe
  • Gigabit Ethernet through RTL8153B chip gives wired network expansion
  • Works with Raspberry Pi OS, Ubuntu and OpenWRT for broad compatibility
  • On-board monitoring chip tracks power status in real time
  • Software control lets you toggle USB port power as needed

PCIe HAT for Raspberry Pi 5

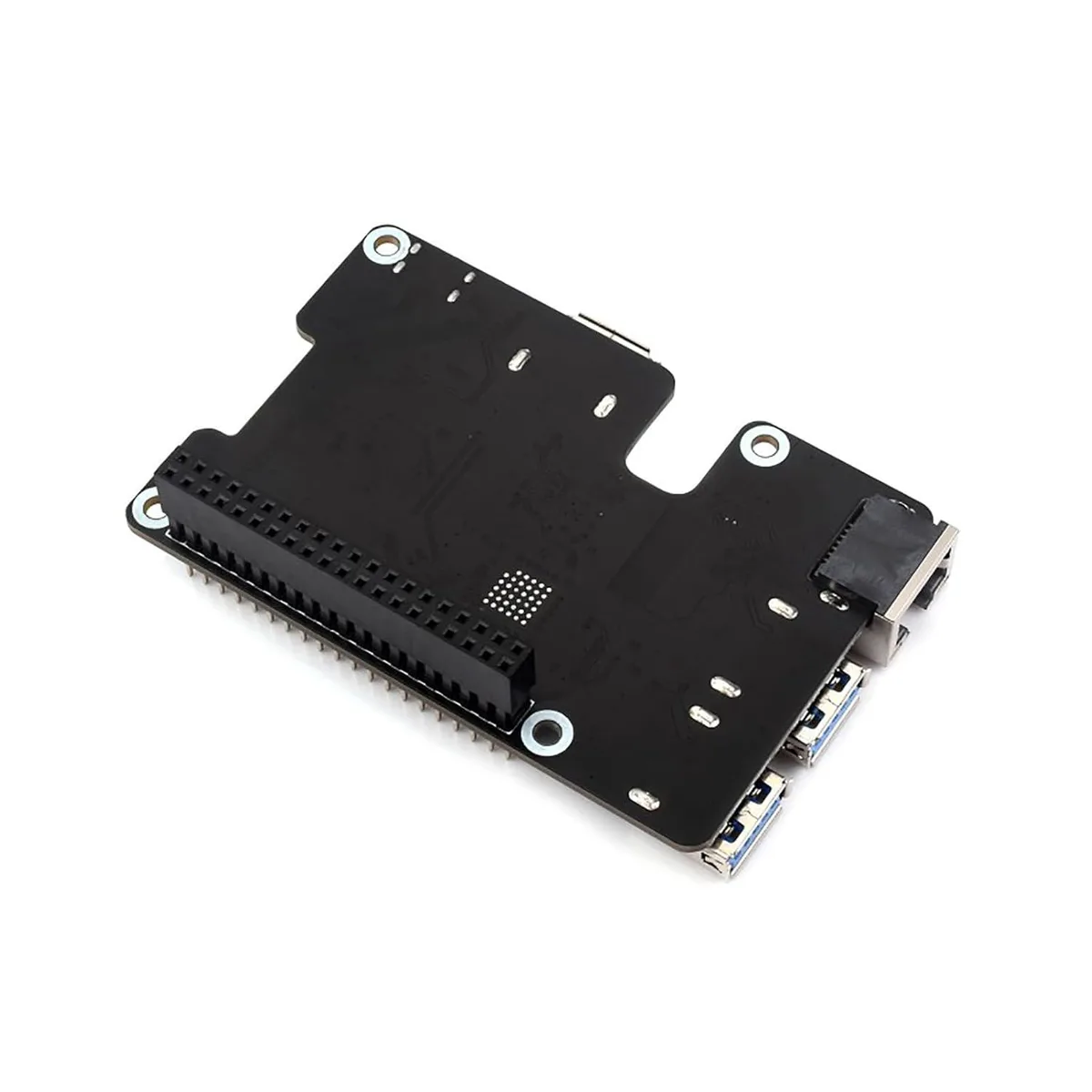

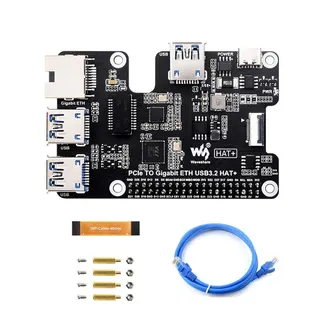

This HAT connects to the Raspberry Pi 5 via its 16-pin PCIe interface. It adds one Gigabit Ethernet port driven by an RTL8153B chip and three USB 3.2 Gen1 ports for extra peripherals. An onboard monitoring chip and EEPROM provide real-time power status and software-controlled USB power management. Compatible with Raspberry Pi OS, Ubuntu and OpenWRT.

Makers needing wired networking and extra USB ports

Suits developers who want a stable Gigabit Ethernet link and three additional high-speed USB connections on a Pi 5. The sinking Ethernet port design keeps the layout tidy. Not for users who require Power-over-Ethernet, additional PCIe lanes, or wireless connectivity such as Wi-Fi or Bluetooth.

16-pin PCIe interface requirement

This board only works with the Raspberry Pi 5 because it relies on the 16-pin PCIe connector that exists on that model. Earlier Pi boards lack this interface, so the HAT cannot be fitted or powered. Check that your Pi 5 has the PCIe header free before purchasing.

Besonderheiten

  • Adds three USB 3.2 Gen1 ports for extra peripherals via 16-pin PCIe
  • Gigabit Ethernet through RTL8153B chip gives wired network expansion
  • Works with Raspberry Pi OS, Ubuntu and OpenWRT for broad compatibility
  • On-board monitoring chip tracks power status in real time
  • Software control lets you toggle USB port power as needed

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

How many USB 3.2 Gen1 ports does the HAT add to the Pi 5?

The HAT provides three USB 3.2 Gen1 ports via the 16-pin PCIe interface.

Does the board get hot or draw extra power when the Gigabit Ethernet and all three USB ports run continuously?

An onboard power monitoring chip lets you watch real-time power status and toggle USB port power through software.

What do I need already installed on the Pi 5 for this HAT to work?

A Raspberry Pi 5 with its 16-pin PCIe connector exposed, plus Raspberry Pi OS, Ubuntu, OpenWRT or a compatible Linux distribution.
