Green circuit board with 16-pin PCIe edge connector and M.2 E key slot, SMA antenna connector, PoE HAT header, USB Bluetooth module

LORDWORLD

LORDWORLD PCIe to M.2 E Key Adapter with PoE HAT for Raspberry Pi 5 development board

SKU CH-1MQX-YXNHM

Adapter converts the Raspberry Pi 5 PCIe slot to an M.2 E-key socket with PoE power and SMA antenna connection

  • PCIe to M.2 E Key adapter expands wireless options for Raspberry Pi 5
  • Onboard SMA connector enables external antenna for stronger signal
  • 16 PIN PCIe interface provides direct high-speed link to the board
  • PoE HAT delivers power over Ethernet for cable-free deployment
  • USB Bluetooth support adds short-range connectivity without extra dongles

LORDWORLD PCIe to M.2 E Key Adapter

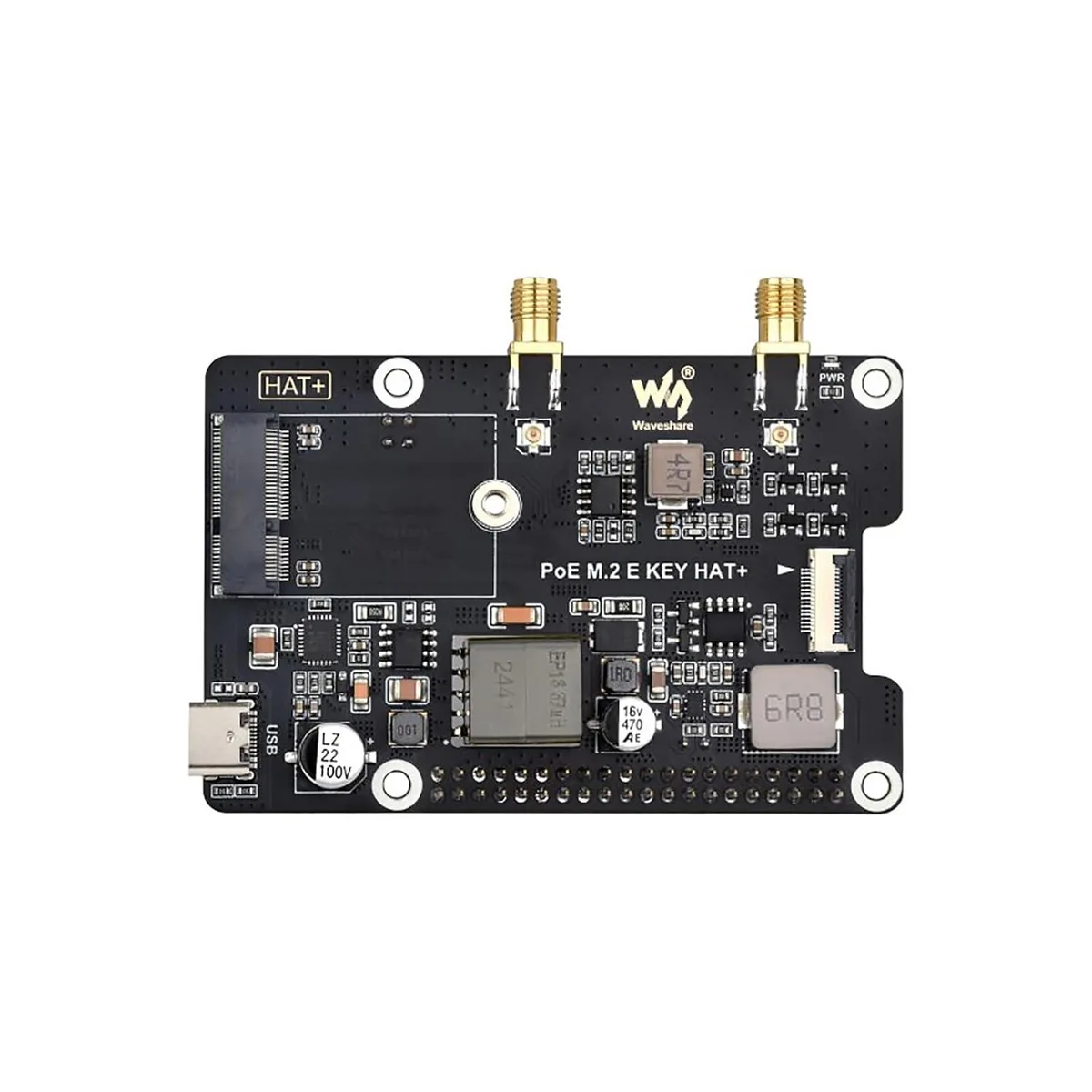

The LORDWORLD adapter connects M.2 E Key wireless modules to a Raspberry Pi 5 via a 16PIN PCIe interface. It includes an onboard PoE HAT to supply power through Ethernet. An SMA connector is fitted for external antenna attachment. The board targets developers adding Wi-Fi or Bluetooth to edge projects.

M.2 E Key slot with PoE power delivery

The single M.2 E Key slot accepts compatible wireless NICs in NGFF form factor. PoE input feeds both the adapter and the host Pi, removing the need for a separate USB-C supply. Headroom depends on the chosen module and the PoE class available. The 16PIN link limits throughput to a single PCIe lane.

Passive cooling with onboard SMA antenna port

No active cooler is present; heat dissipates through the PCB and any module heatsink. Silent operation suits enclosed or noise-sensitive deployments. Power draw scales with the wireless card and transmit duty cycle. The SMA bulkhead keeps RF cabling outside the enclosure.

Besonderheiten

  • PCIe to M.2 E Key adapter expands wireless options for Raspberry Pi 5
  • Onboard SMA connector enables external antenna for stronger signal
  • 16 PIN PCIe interface provides direct high-speed link to the board
  • PoE HAT delivers power over Ethernet for cable-free deployment
  • USB Bluetooth support adds short-range connectivity without extra dongles

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

Will the 16-pin PCIe interface on this adapter work with the Raspberry Pi 5's PCIe connector without extra cabling?

Yes, the 16-pin PCIe interface is designed to connect directly to the Raspberry Pi 5's PCIe slot for a direct link.

How can I verify the PoE HAT is delivering power to the Raspberry Pi 5 after installation?

The Raspberry Pi 5 will power on and boot normally without a separate USB-C power supply when the PoE HAT receives power over Ethernet.

Does the package include the M.2 E Key wireless NIC or SMA antennas, or must they be purchased separately?

The adapter board and PoE HAT are included; the M.2 E Key wireless NIC and any SMA antennas must be purchased separately.
