Green circuit board with five rows of 2x20 pin headers and USB power port

LORDWORLD

LORDWORLD Raspberry Pi Stack HAT Expansion Shield 5x 2x20 Connectors

SKU CH-74H2-TGJC4

Connects up to five Raspberry Pi HATs through stacked 2x20 headers with an onboard USB power input and clearly labelled pins

  • Connect up to five HATs simultaneously with five 2x20 connectors
  • Power multiple boards reliably via the onboard USB external power interface
  • Plug directly onto the Raspberry Pi GPIO header or use jumper wires for flexible wiring
  • Identify pins quickly with clearly printed silkscreen labels on the header

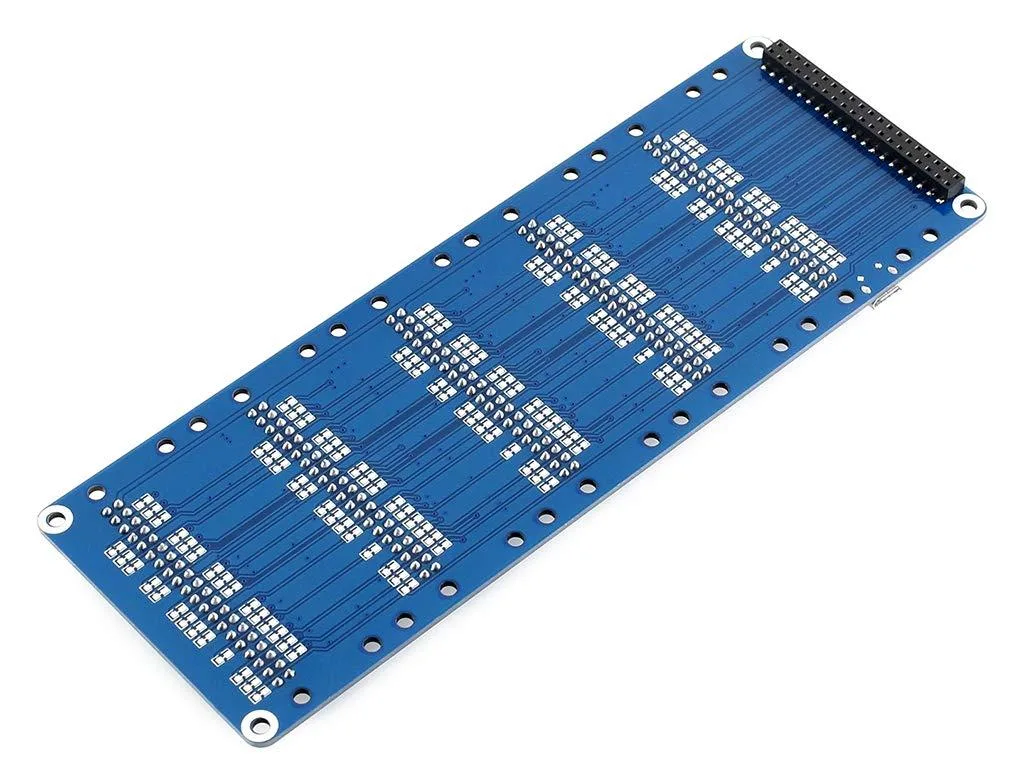

  • Reserve backside pads let you reroute signals to avoid pin conflicts

Stack HAT for Multi-Board Projects

The LORDWORLD Stack HAT Expansion Shield adds five 2x20 connectors to a Raspberry Pi, letting you attach several expansion boards at once. It plugs directly onto the GPIO header or can be wired with jumper cables. An onboard USB power input supplements the Pi supply when multiple boards draw extra current. Clear silkscreen labels and reserved pads on the reverse side help avoid pin conflicts.

Makers Stacking Several HATs

This shield suits hobbyists and prototype builders who need to run multiple HATs or add-on boards simultaneously without a tangle of cables. The extra USB power connector keeps voltage stable when several boards are active. It is not for users who only need a single HAT connection or who require a compact, low-profile add-on that fits inside a standard case.

Five 2x20 Connectors Decide Fit

The decisive specification is the five 2x20 GPIO connectors that multiply the Pi's 40-pin header. Count the expansion boards you plan to use; if the total exceeds five, this shield cannot accommodate them. Verify each board's pin usage against the silkscreen map and the backside pads to prevent conflicts before purchasing.

Besonderheiten

  • Connect up to five HATs simultaneously with five 2x20 connectors
  • Power multiple boards reliably via the onboard USB external power interface
  • Plug directly onto the Raspberry Pi GPIO header or use jumper wires for flexible wiring
  • Identify pins quickly with clearly printed silkscreen labels on the header
  • Reserve backside pads let you reroute signals to avoid pin conflicts

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

Will the 2x20 connector headers need replacement after repeated board swaps?

The 2x20 headers are standard through-hole pins rated for many insertion cycles; they do not require scheduled replacement under normal use.

What limits how many expansion boards I can stack at once?

The onboard USB power input and the shared 20-pin bus set the practical limit; total current draw across all boards must stay within the USB supply capability.

Does the shield generate noticeable heat or fan noise during continuous operation?

The board has no active components or fan; it adds negligible heat and produces no noise regardless of how long it runs.
