Green circuit board with 40-pin header, acrylic case, cooling fan, antennas attached

LORDWORLD

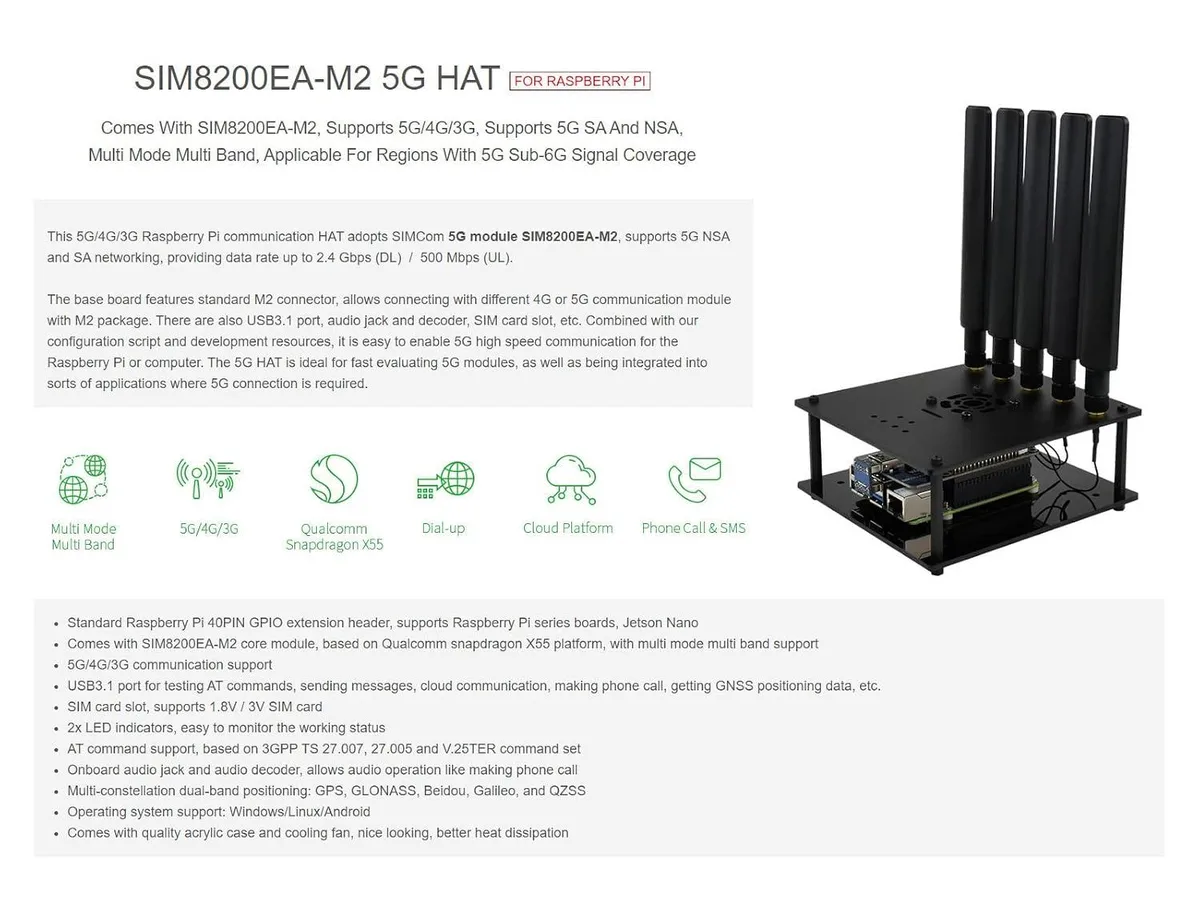

LORDWORLD SIM8200EA-M2 5G HAT with Antennas development board

SKU CH-R62W-CASDV

Adds 5G, 4G and 3G connectivity with multi-constellation GNSS to Raspberry Pi or Jetson Nano via 40-pin header and USB 3.1

  • 40-pin GPIO header fits Raspberry Pi and Jetson Nano boards
  • Snapdragon X55 core module delivers 5G, 4G and 3G connectivity
  • USB 3.1 port enables AT commands, messaging and GNSS data
  • Dual-band GNSS covers GPS, GLONASS, Beidou, Galileo and QZSS
  • Acrylic case with cooling fan improves heat dissipation

Compatible Boards and Core Module

The LORDWORLD SIM8200EA-M2 5G HAT mounts on any Raspberry Pi with a 40-pin GPIO header and also fits the Jetson Nano. Its core module is built on the Qualcomm Snapdragon X55 platform and delivers multi-mode, multi-band 5G, 4G and 3G connectivity for IoT edge projects.

Sub-6G 5G Coverage Requirement

This board only operates in regions that have 5G sub-6GHz signal coverage. If your deployment area lacks that spectrum the 5G capability cannot be used, though 4G and 3G fallback remain available where those networks exist.

Acrylic Case and Cooling Fan Included

A quality acrylic enclosure and a cooling fan ship with the HAT, providing physical protection and active heat dissipation for the Snapdragon X55 module during sustained data sessions.

Besonderheiten

  • 40-pin GPIO header fits Raspberry Pi and Jetson Nano boards
  • Snapdragon X55 core module delivers 5G, 4G and 3G connectivity
  • USB 3.1 port enables AT commands, messaging and GNSS data
  • Dual-band GNSS covers GPS, GLONASS, Beidou, Galileo and QZSS
  • Acrylic case with cooling fan improves heat dissipation

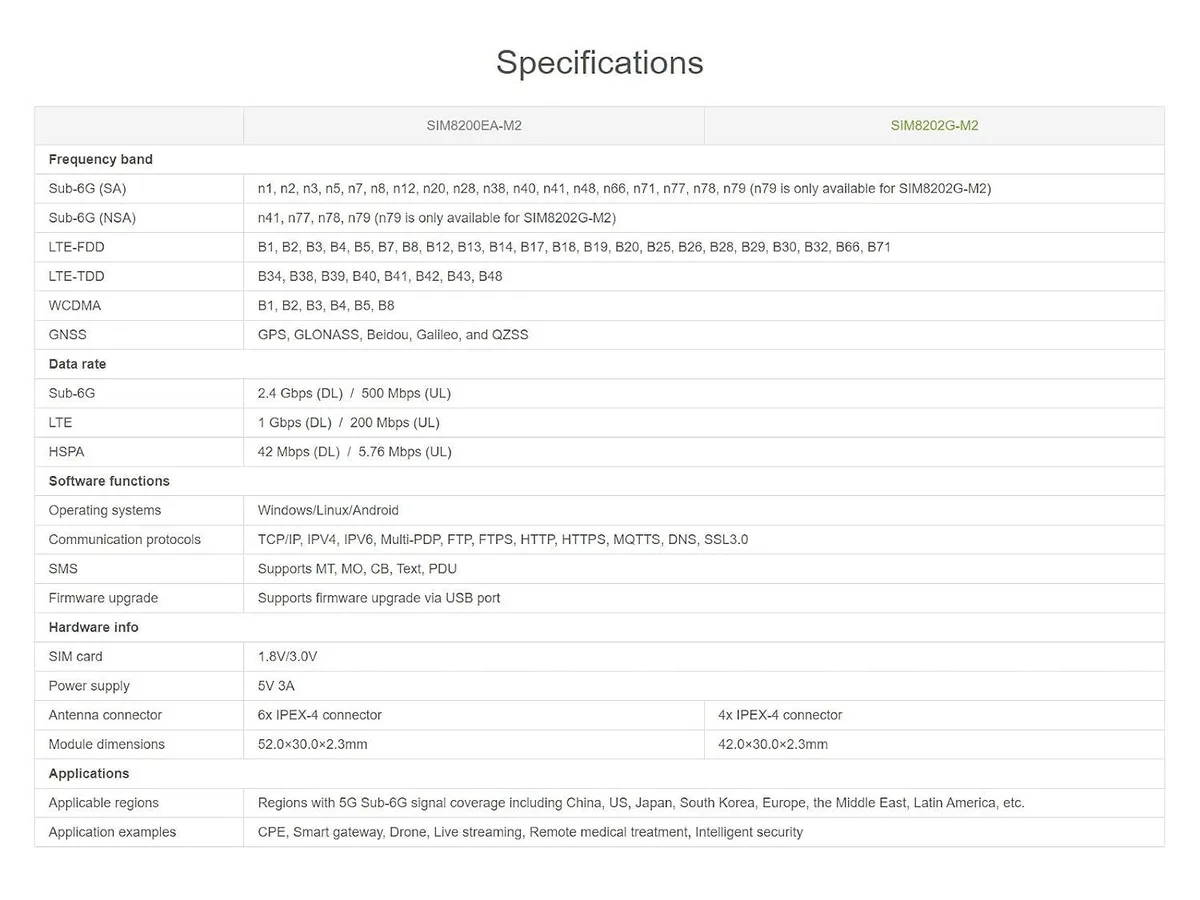

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

What does the Snapdragon X55 platform enable on this HAT?

The Snapdragon X55 platform provides multi-mode and multi-band support for 5G, 4G and 3G communication, plus GNSS positioning across GPS, GLONASS, Beidou, Galileo and QZSS constellations.

What does the USB 3.1 port cap in practice?

The USB 3.1 port is used for AT command testing, messaging, cloud communication, voice calls and retrieving GNSS positioning data from the SIM8200EA-M2 module.

What do I need to mount this HAT on a Raspberry Pi?

A standard 40-pin GPIO header on the Raspberry Pi board aligns with the HAT's extension header; the included acrylic case and cooling fan then secure the assembly.
