Green rectangular circuit board with 40-pin header and integrated antenna

LORDWORLD

LORDWORLD SIM868 GSM GNSS Bluetooth 3.0 HAT 40PIN development board

SKU CH-TGD2-RKCQB

Adds GSM, GPRS, GNSS and bluetooth 3.0 to Raspberry Pi boards via the 40-pin header

  • Compatible with Raspberry Pi series via 40-pin GPIO header
  • Multi-constellation GNSS: GPS, Glonass, COMPASS, LBS positioning
  • Bluetooth 3.0 enables wireless data transfer
  • Low-power HAT integrates GSM, GPRS, GNSS, Bluetooth
  • Includes development resources for Raspberry Pi, Arduino, STM32

SIM868 HAT with 40-pin GPIO for Raspberry Pi

The LORDWORLD SIM868 expansion board adds GSM, GPRS, GNSS and Bluetooth 3.0 to any Raspberry Pi model that uses the standard 40-pin header. It draws little power and ships with code examples for Raspberry Pi, Arduino and STM32 platforms. The onboard SIM868 chip handles SMS, voice calls, email and multi-constellation satellite positioning in one compact HAT.

Makers adding cellular and satellite to a Pi project

Suits developers who need a single board for mobile data, GPS, Glonass, Compass and LBS location plus Bluetooth 3.0 data links. Not for builders who need Wi-Fi, 4G LTE speeds, a USB or PCIe interface, or a module that works without a Raspberry Pi host board.

40-pin GPIO header requirement

The board connects only through the Raspberry Pi 40-pin GPIO extension header, so the host must expose that exact connector. If your single-board computer lacks a 40-pin header or uses a different pinout, this HAT cannot be installed.

Besonderheiten

  • Compatible with Raspberry Pi series via 40-pin GPIO header
  • Multi-constellation GNSS: GPS, Glonass, COMPASS, LBS positioning
  • Bluetooth 3.0 enables wireless data transfer
  • Low-power HAT integrates GSM, GPRS, GNSS, Bluetooth
  • Includes development resources for Raspberry Pi, Arduino, STM32

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

How can I verify the SIM868 HAT is communicating correctly after connecting it to my Raspberry Pi?

Check the serial console for AT command responses from the module and confirm NMEA sentences appear from the GNSS receiver.

What accessories come with the LORDWORLD SIM868 HAT and what must I source separately?

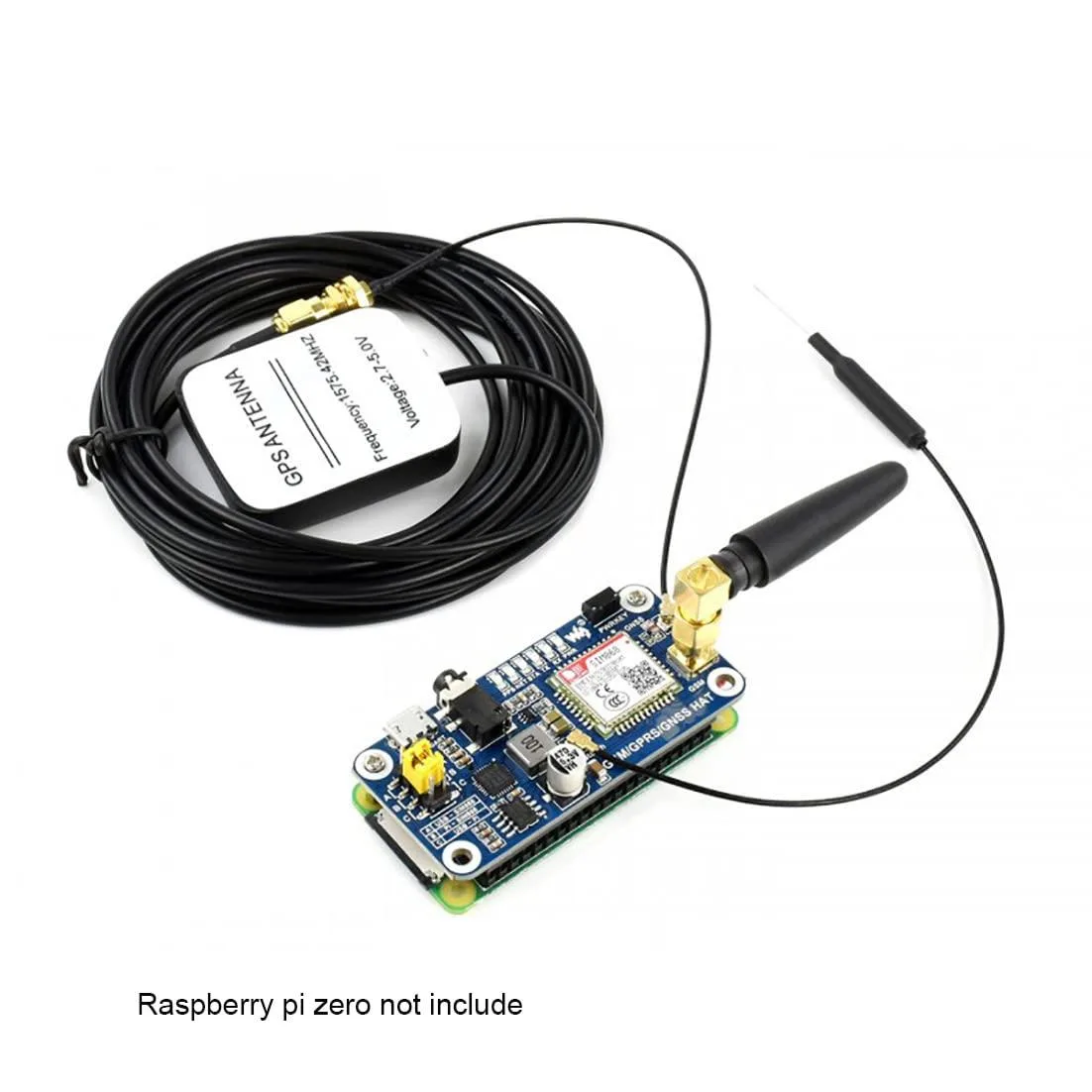

The board includes a 40PIN GPIO header and development manual; you must supply a Raspberry Pi, SIM card, and suitable antenna.

Which version of the SIM868 HAT should I select for Bluetooth 3.0 and multi-constellation GNSS support?

The listed model provides Bluetooth 3.0 plus GPS, GLONASS, COMPASS and LBS positioning in a single 40PIN HAT.
