Small green circuit board with gold spring pins and electronic components

LORDWORLD

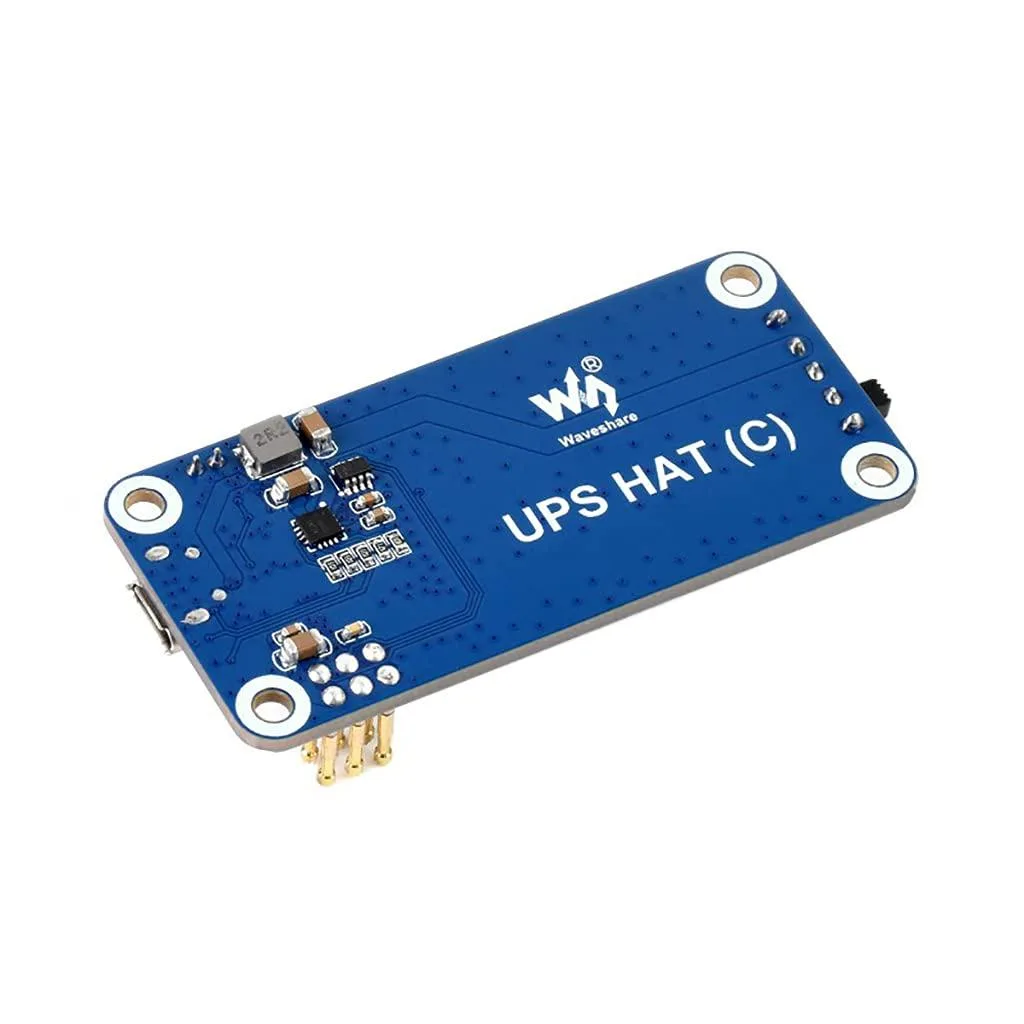

LORDWORLD UPS HAT (C) for Raspberry Pi Zero Series

SKU CH-279C-XYAER

Provides uninterruptible 5V power to Raspberry Pi Zero boards via Li-po battery with real-time I2C monitoring and multi-circuit protection

  • Spring pogo pins connect directly to Pi Zero boards
  • Li-po recharge chip with dynamic path management stabilises power
  • Voltage boost chip delivers regulated 5V output
  • I2C bus reports voltage, current, power and capacity in real time
  • Multi protection circuits guard against over-charge, over-discharge, over-current and short circuits

Uninterruptible Power HAT for Pi Zero

The LORDWORLD UPS HAT (C) attaches directly to Raspberry Pi Zero series boards using onboard spring pogo pins. It provides a regulated 5V output through a voltage boost chip and a Li‑po recharge chip with dynamic path management. The board is designed for makers and IoT projects that need continuous operation during power interruptions.

Real‑time monitoring and multi‑layer protection

An I2C bus reports battery voltage, current, power and remaining capacity in real time, while a recharging indicator shows operating status. Protection circuits guard against over‑charge, over‑discharge, over‑current and short‑circuit conditions, reducing the risk of damage to both the battery and the Pi.

Spring pogo‑pin connection for Pi Zero

The HAT uses spring‑loaded pogo pins instead of a soldered header, so it mates with the Zero’s GPIO pads without permanent modification. This makes it suitable for prototypes and temporary deployments, but it will not fit boards that lack the Zero‑series pin layout.

Besonderheiten

  • Spring pogo pins connect directly to Pi Zero boards
  • Li-po recharge chip with dynamic path management stabilises power
  • Voltage boost chip delivers regulated 5V output
  • I2C bus reports voltage, current, power and capacity in real time
  • Multi protection circuits guard against over-charge, over-discharge, over-current and short circuits

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

How long does the onboard Li-po recharge chip and its protection circuits last before they need replacement?

The recharge chip and multi protection circuits are surface-mounted components rated for the board's lifetime; only the Li-po cell itself is consumable and should be swapped when capacity drops below your runtime needs.

What limits continuous operation when the UPS HAT (C) runs a Pi Zero under sustained load?

The voltage boost chip regulates a fixed 5 V output; its maximum current capability and the attached battery's discharge rating together set the sustained-load ceiling.

How much heat and noise does the board produce when powering a Pi Zero all day?

The board has no fan or moving parts, so it is silent; heat comes only from the boost converter and recharge chip, which stay warm but not hot under normal Pi Zero loads.
