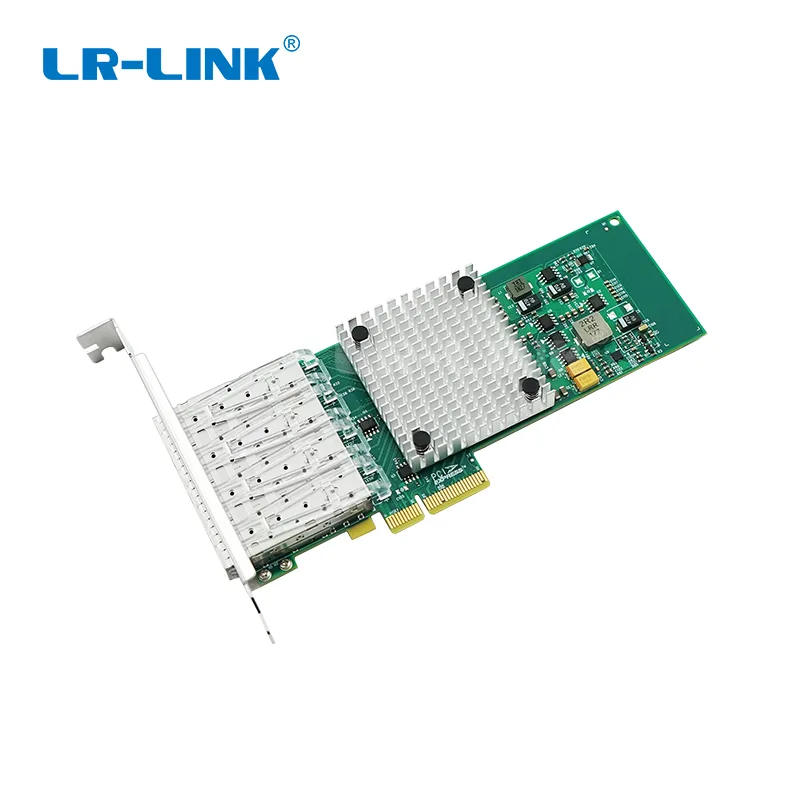

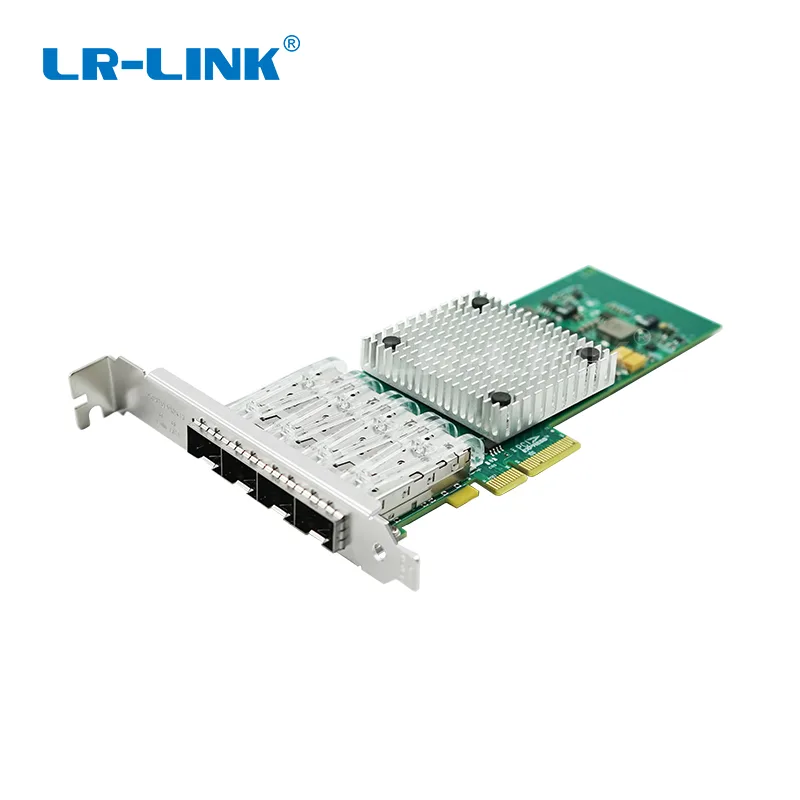

Green PCB network card with four SFP cages and low-profile bracket

LR-LINK

LR-LINK LREC9714HF-4SFP 4-port Gigabit SFP network card

SKU CH-F0V5-4MDZJ

Four-port Gigabit SFP server adapter on PCI Express x4 with Intel I350 controller for multi-core and virtualised workloads

  • Speed1000Mbps
  • Connectors4 x SFP
  • InterfacePCI-Express
  • LEDsGreen Link(Link Indicator) + Yellow Blink(Ack Indicator)
  • Wake On LANNo
  • Temperature0°C ~ 55°C
  • Four Gigabit SFP ports for flexible fibre or copper uplinks
  • PCI Express 2.1 x4 interface fits x4, x8 and x16 slots
  • Intel I350 controller offloads processing from the CPU
  • Supports Windows, Linux, FreeBSD, Solaris and VMware
  • Operating temperature range 0 °C to 55 °C

Four-Port Gigabit SFP Adapter

The LR-LINK LREC9714HF-4SFP is a PCI Express x4 network interface card built around the Intel I350 controller. It provides four SFP cages for 1000 Mbps fibre or copper transceiver modules. The card targets servers and high-end workstations where multiple gigabit links are required.

Suits Multi-Link Server Deployments

This adapter suits administrators adding four gigabit uplinks to a virtualisation host or storage node. It also fits builders who need link aggregation or fault-tolerant groups across independent SFP modules. It is not for desktops lacking a x4, x8 or x16 slot, nor for networks that require 10 Gbps or higher throughput per port.

Fits Standard Server Slots

The card installs in any PCI Express 2.1 x4, x8 or x16 slot and ships with both low-profile and full-height brackets. Four SFP transceivers and matching patch cables complete the link layer. By offloading queue processing to the I350, the adapter frees CPU cores for virtual machines or storage tasks.

Besonderheiten

  • Four Gigabit SFP ports for flexible fibre or copper uplinks
  • PCI Express 2.1 x4 interface fits x4, x8 and x16 slots
  • Intel I350 controller offloads processing from the CPU
  • Supports Windows, Linux, FreeBSD, Solaris and VMware
  • Operating temperature range 0 °C to 55 °C

Technische Daten

BrandLR-LINK
ModelLREC9714HF-4SFP
Speed1000Mbps
Connectors4 x SFP
InterfacePCI-Express
LEDsGreen Link(Link Indicator) + Yellow Blink(Ack Indicator)
Wake On LANNo
Temperature0°C ~ 55°C
Humidity5 % ~ 95 % (Non-condensing)
Weight119g
Class1000M, PCIE

Fragen zu diesem Artikel

Does my motherboard need a PCI Express x4 slot for this LR-LINK LREC9714HF-4SFP card?

The card uses a PCI Express v2.1 x4 interface and is compatible with x4, x8 and x16 slots, including Low Profile and Full Height brackets.

Will the four SFP ports on this Intel I350-based adapter negotiate 1000Mbps links with older Gigabit SFP modules I already own?

The adapter runs at 1000Mbps per port and uses standard SFP connectors, so it will link with compatible Gigabit SFP transceivers you already have.

How can I confirm the LR-LINK LREC9714HF-4SFP is operating correctly once installed?

Each port has a green Link LED and a yellow Ack blink LED; solid green shows an active 1000Mbps link and yellow blinking shows data activity.
