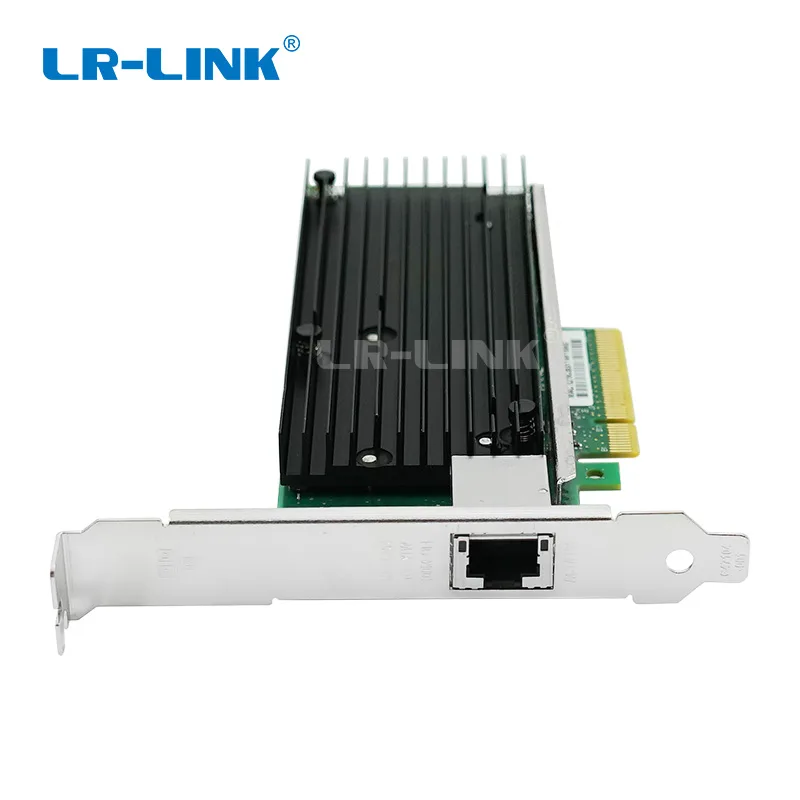

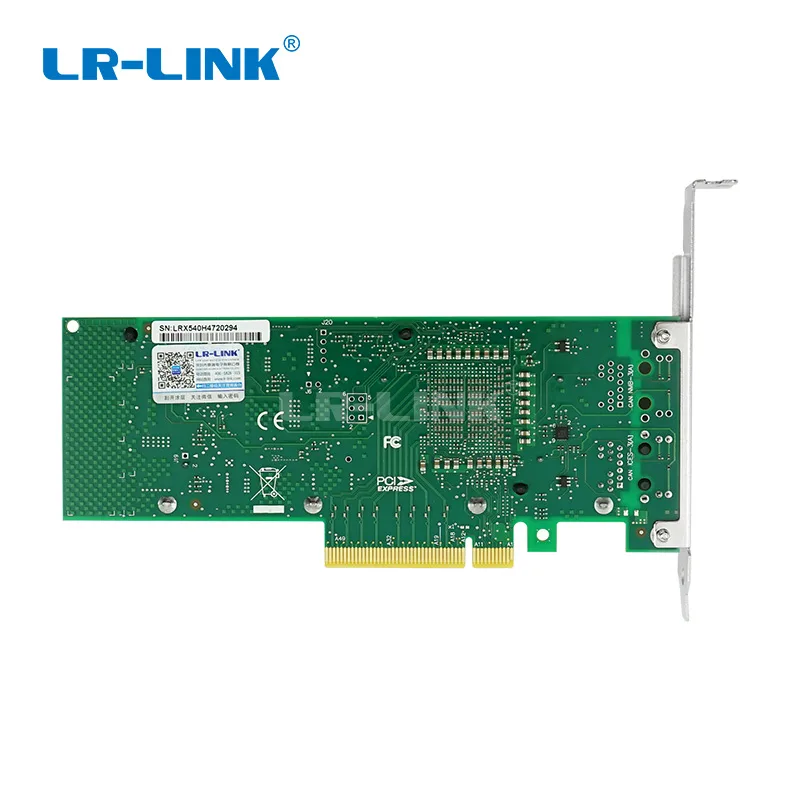

Green circuit board with single RJ45 port and metal bracket

LR-LINK

LR-LINK LREC9801BT 1-port PCIe 10 Gigabit Ethernet network card

SKU CH-G64B-20VF1

Single-port 10 GbE adapter on Intel X540 chipset, PCIe 2.1 x8, RJ45 with CAT-6a support and 9.5 KB jumbo frames, includes low-profile bracket

  • StandardsIEEE 802.3an
  • Speed1Gbps/10Gbps
  • Connectors1 x RJ45
  • InterfacePCI-Express
  • BUSPCIe
  • LEDsLink/Activity LED: off = No Link; on = Link; Blinking = Acti
  • 10 GbE throughput over standard CAT-6a cabling
  • Intel X540 controller delivers reliable 10 GbE performance
  • PCIe 2.1 x8 interface provides ample bandwidth headroom
  • Jumbo frame support up to 9.5 KB reduces CPU overhead
  • Low-profile and full-height brackets fit any chassis

LR-LINK LREC9801BT 10GbE adapter

The LR-LINK LREC9801BT is a single-port 10 Gigabit Ethernet network card built on the Intel X540 controller. It connects through a PCI Express v2.1 x8 lane slot and uses a standard RJ45 connector for CAT-6a cabling. The card targets servers and workstations that need 10GbE over existing copper infrastructure.

Installation notes and common issues

The package includes both a low-profile bracket and a full-height bracket for different chassis types. A driver CD and quick installation guide are supplied, though current drivers should be downloaded from the vendor. The x8 lane requirement means the card needs a compatible PCIe slot; x4 physical slots will not provide sufficient bandwidth.

Pre-order checklist for your system

Verify that your motherboard or server has an available PCIe slot with at least x8 electrical lanes. Confirm the operating environment stays within the 0°C to 55°C operating temperature range and 0% to 90% non-condensing humidity. Ensure you have CAT-6 or CAT-6a patch cables ready for the RJ45 port.

Besonderheiten

  • 10 GbE throughput over standard CAT-6a cabling
  • Intel X540 controller delivers reliable 10 GbE performance
  • PCIe 2.1 x8 interface provides ample bandwidth headroom
  • Jumbo frame support up to 9.5 KB reduces CPU overhead
  • Low-profile and full-height brackets fit any chassis

Technische Daten

BrandLR-LINK
ModelLREC9801BT
StandardsIEEE 802.3an
Speed1Gbps/10Gbps
Connectors1 x RJ45
InterfacePCI-Express
BUSPCIe
LEDsLink/Activity LED: off = No Link; on = Link; Blinking = Activity
Temperature0°C ~ 55°C
Humidity0 % ~ 90 % (Non-condensing)
Dimensions180mm*150mm*30mm
Package ContentsAdapter Card+CD+Quick Installation Guide+Low-profile bracket

Fragen zu diesem Artikel

How can I confirm the LREC9801BT is working after installation?

Check the LED behaviour: off means no link, solid on means a 1Gbps or 10Gbps link is established, and blinking shows data activity on the RJ45 port.

What comes in the box and what must I source separately?

The package includes the adapter card, a driver CD, a quick installation guide, and a low-profile bracket; you will need to provide a Cat 6 or Cat 6a patch cable for the RJ45 connector.

Which bracket should I choose for my chassis?

Both a low-profile bracket and a full-height bracket are supplied, so you can fit the card into either a slim or a standard-height PCIe x8 slot.
