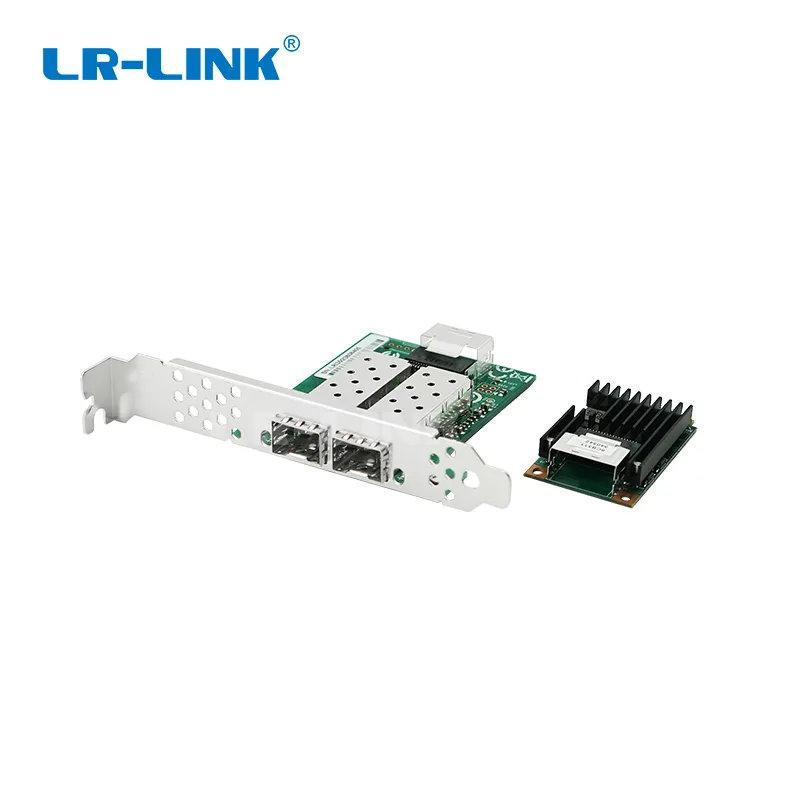

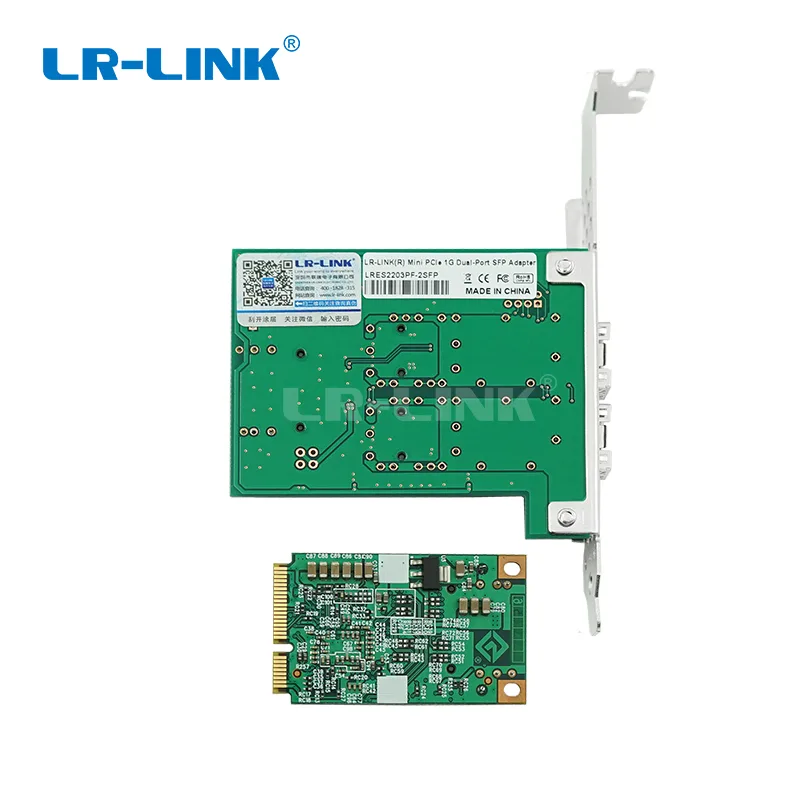

Green circuit board Mini PCIe card with two SFP cages and low-profile bracket

LR-LINK

LR-LINK LRES2203PF-2SFP Mini PCIe 2-port Gigabit SFP network card

SKU CH-HAKJ-29A2C

Adds two Gigabit SFP ports over Mini PCIe with Intel I350 controller, low-profile bracket and 0–55 °C operating range

  • StandardsIEEE 802.1q
  • Speed1000Mbps
  • Connectors2 x SFP
  • InterfaceMini PCI Express
  • BUSMini PCIe
  • LEDs1000Mbps: LINK:Yellow, ACTIVE:Green
  • Dual-port Gigabit fibre connectivity via two SFP cages
  • Mini PCI Express interface fits compact industrial boards
  • Intel I350 controller delivers 1000 Mbps link rate per port
  • PXE boot and 9 KB jumbo frame support included
  • Low-profile and full-height brackets supplied for flexible mounting

Industrial dual-port Gigabit adapter

The LR-LINK LRES2203PF-2SFP is a Mini PCIe network card that provides two SFP ports running at 1000 Mbps. It is built around the Intel I350 controller and targets industrial PCs, single-board computers and embedded systems where space is limited.

Fits compact industrial builds.

This card suits engineers integrating networking into tight enclosures that expose a Mini PCIe slot. Builders with only full-size PCIe or M.2 sockets should look elsewhere, as the physical interface will not match.

Verify Mini PCIe slot and SFP transceiver needs

Confirm the host board has a free Mini PCIe connector and that the operating environment stays within 0 °C to 55 °C. You must also supply compatible SFP transceivers and fibre cabling, as neither is included with the adapter.

Besonderheiten

  • Dual-port Gigabit fibre connectivity via two SFP cages
  • Mini PCI Express interface fits compact industrial boards
  • Intel I350 controller delivers 1000 Mbps link rate per port
  • PXE boot and 9 KB jumbo frame support included
  • Low-profile and full-height brackets supplied for flexible mounting

Technische Daten

BrandLR-LINK
ModelLRES2203PF-2SFP
StandardsIEEE 802.1q
Speed1000Mbps
Connectors2 x SFP
InterfaceMini PCI Express
BUSMini PCIe
LEDs1000Mbps: LINK:Yellow, ACTIVE:Green
Temperature0°C ~ 55°C
Humidity0 % ~ 90 % (Non-condensing)
Dimensions30mm*26.8mm*1mm+49mm*23.5mm*1.6mm
Package ContentsAdapter Cards+CD+Cable+low-profile bracket

Fragen zu diesem Artikel

Does my system need a Mini PCIe slot with a specific mechanical key to accept this adapter?

The card uses a Mini PCI Express interface; verify your board provides a Mini PCIe slot rather than an M.2 or full-size PCIe slot before purchase.

Will the 1000 Mbps SFP ports negotiate down to 100 Mbps if I connect legacy fibre transceivers?

The adapter complies with IEEE 802.1q and runs at 1000 Mbps; speed negotiation depends on the SFP modules installed, so match modules to the desired link rate.

Which LED colours confirm each port has established a 1000 Mbps link and is passing traffic?

A yellow LINK LED shows a 1000 Mbps connection and a green ACTIVE LED blinks when data is moving on that port.
