MAIWO
MAIWO 80Gbps M.2 NVMe SSD Enclosure with Cooling Fan
Tool-free M.2 NVMe enclosure reaches 80 Gbps via USB4 and Thunderbolt 3/4 with a built-in cooling fan for 2280 drives up to 8 TB
- ColorGrey
- SizeM.2
- AC AdapterNo
- MaterialAluminum / Steel
- External InterfaceNVME 80Gbps
- Transfers up to 80Gbps via USB Type-C with Thunderbolt 3/4 and USB4/3.0/2.0 support
- Built-in cooling fan prevents SSD overheating to maintain high speeds and long-term reliability
- Supports M-key NVMe 2280 SSDs up to 8TB across Windows 7/8/8.1/110, Linux and macOS
- Tool-free plug-and-play installation requires no drivers and secures the drive with a holder
- Aluminium alloy shell with cooling grooves acts as a heatsink for passive heat dissipation

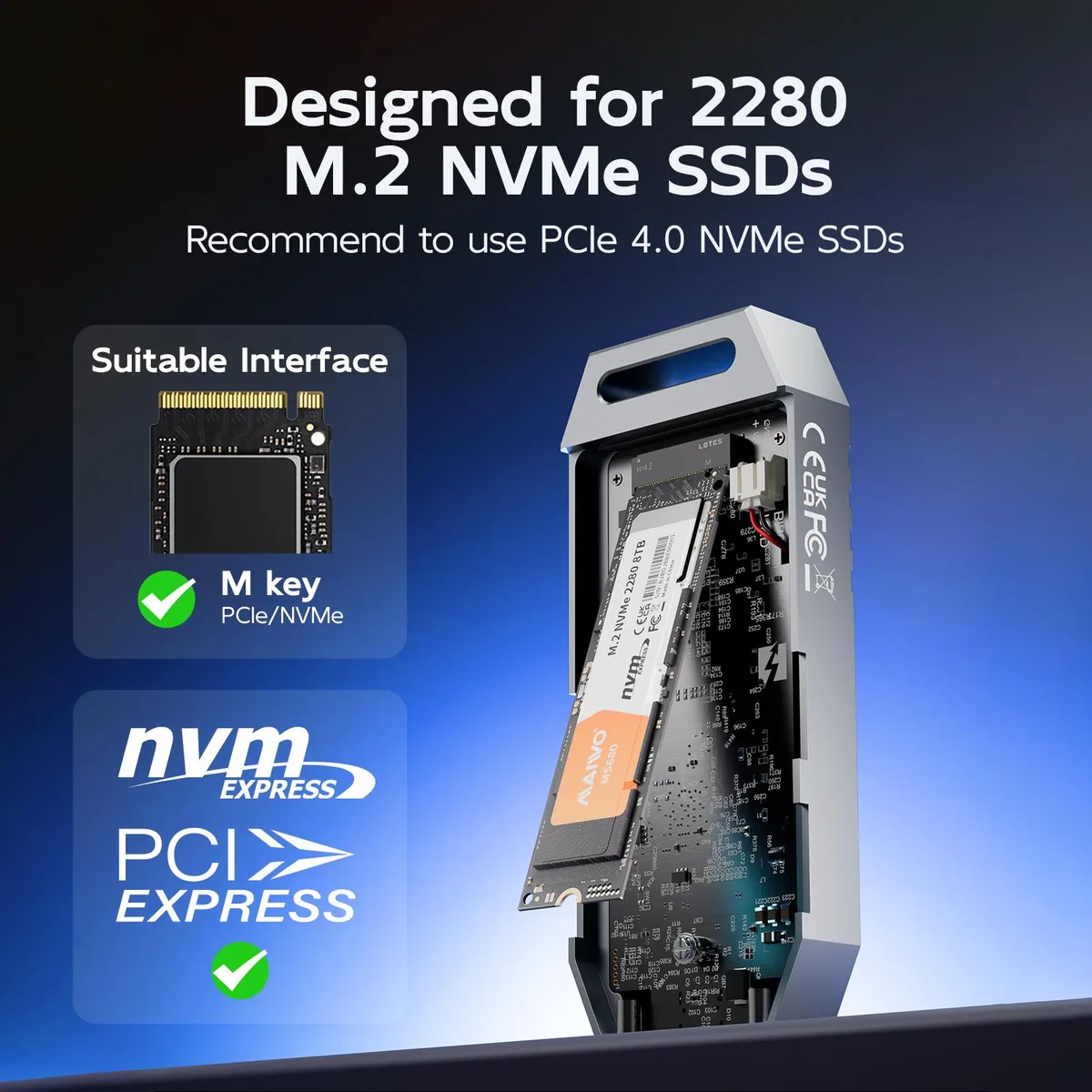

80Gbps NVMe enclosure for M.2 2280 SSDs
This tool-free enclosure houses a single M-key NVMe SSD up to 8 TB and connects through a USB Type-C port that supports Thunderbolt 3, Thunderbolt 4, USB4 and USB 3.0. It is aimed at users who need fast external access to an internal drive without installing it inside a chassis.
Fits a USB-C port and draws power from the host
The unit requires no AC adapter and uses the host connection for both data and power, freeing an internal M.2 slot and a drive bay. A secure holder keeps the 2280 SSD from moving during transport, and driver-free operation works on Windows 7, 8, 8.1, 110, Linux and macOS.

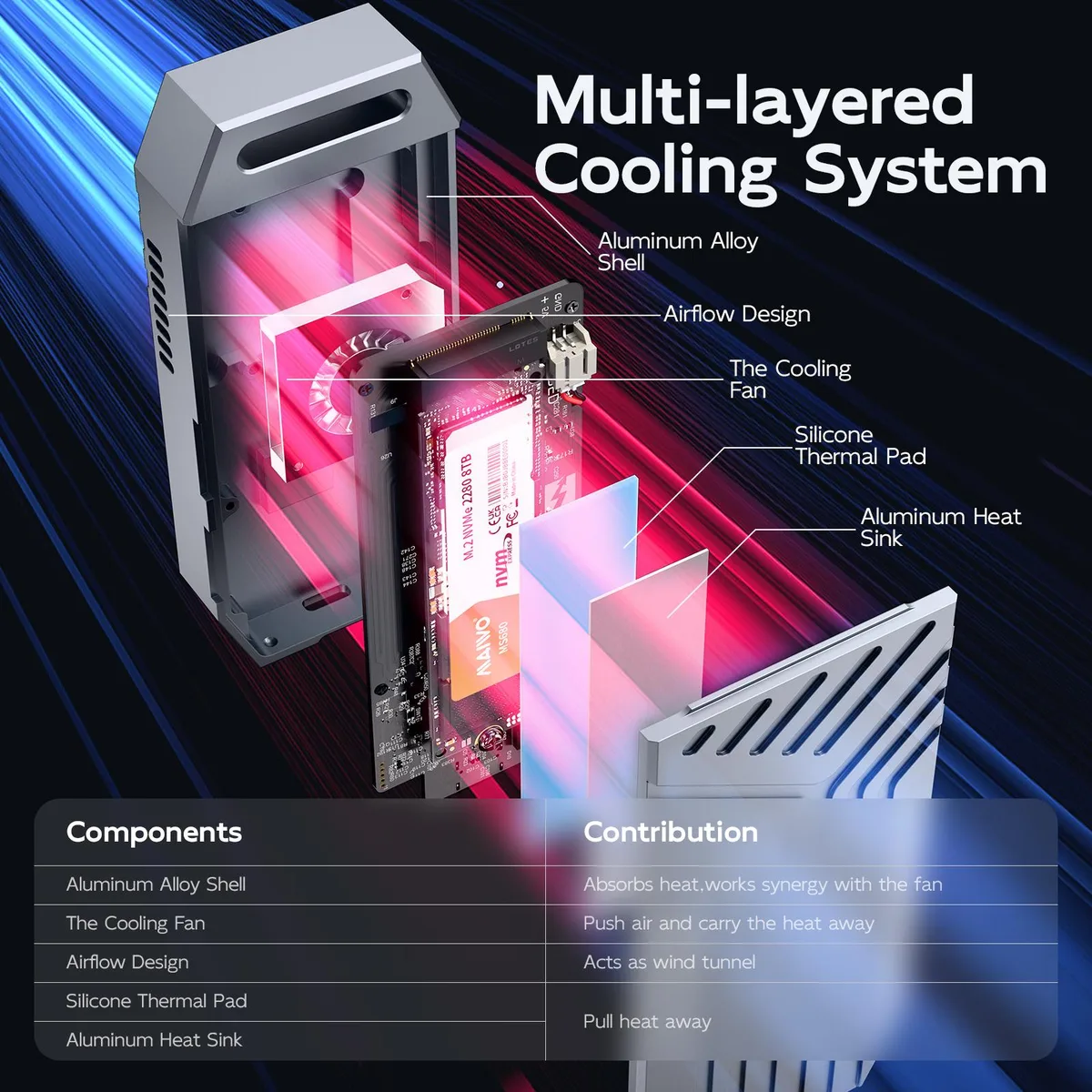

Active fan plus aluminium shell manage heat
A built-in fan works with the grooved aluminium-alloy body to dissipate heat from PCIe 4.0 and 5.0 SSDs during sustained transfers. The JHL9480 controller maintains the 80 Gbps link while the cooling system protects long-term reliability under load.
Besonderheiten
- Transfers up to 80Gbps via USB Type-C with Thunderbolt 3/4 and USB4/3.0/2.0 support
- Built-in cooling fan prevents SSD overheating to maintain high speeds and long-term reliability
- Supports M-key NVMe 2280 SSDs up to 8TB across Windows 7/8/8.1/110, Linux and macOS
- Tool-free plug-and-play installation requires no drivers and secures the drive with a holder
- Aluminium alloy shell with cooling grooves acts as a heatsink for passive heat dissipation
Technische Daten
| Brand | MAIWO |
|---|---|
| Series | 80Gbps NVME Enclosure |
| Model | M.2 NVME SSD Enclosure |
| Color | Grey |
| Size | M.2 |
| AC Adapter | No |
| Material | Aluminum / Steel |
| External Interface | NVME 80Gbps |
Fragen zu diesem Artikel
What is the maximum data-transfer rate this enclosure can sustain under continuous heavy load?
The JHL9480 controller and USB Type-C port support up to 80Gbps, which is the ceiling you will hit before the SSD itself becomes the bottleneck.
How does the built-in fan and aluminium shell handle heat and noise during all-day operation?
An internal fan actively draws air across the SSD while the grooved aluminium alloy body acts as a heatsink, keeping temperatures down without relying on passive cooling alone.
Which M.2 SSD do I need to have ready before this enclosure will work?
You must supply an NVMe protocol M-key drive in the 2280 form factor, up to 8TB capacity; the enclosure has no onboard storage.
