MAIWO K3527N Dual-Bay M.2 NVMe & 2.5/3.5" SATA Enclosure 10Gbps
Dual-bay enclosure holds one M.2 NVMe drive and one 2.5/3.5" SATA drive with offline cloning and 10Gbps USB 3.1 Type-C
- ColorBlack
- TypeM.2 NVMe SSD & 3.5/2.5 Inch SATA HDD/SSD Enclosure
- AC AdapterYes
- MaterialAluminum
- External InterfaceUSB 3.1 Type-C
- HDD Count SupportedM.2 NVMe SSD & 3.5/2.5 Inch SATA HDD/SSD Enclosure

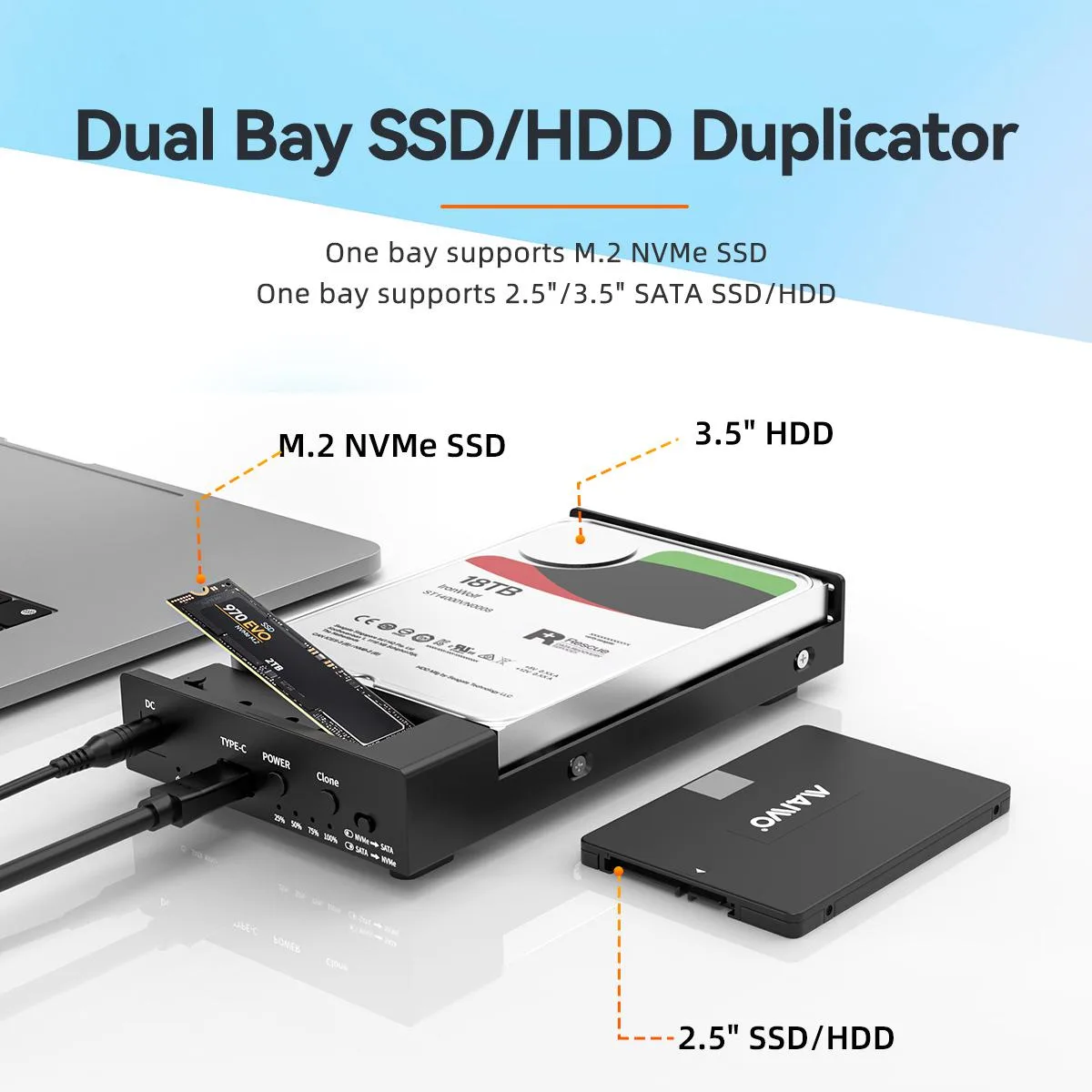

- Dual-bay design fits M.2 NVMe and 2.5/3.5" SATA drives together
- Offline clone copies SATA to NVMe or NVMe to SATA without a computer
- USB 3.1 Gen 2 Type-C reaches 10Gbps for fast large-file transfers
- Aluminium alloy housing with honeycomb vents keeps drives cool during heavy workloads
- 12V 3A power adapter included for stable dual-drive operation
Dual-Bay Enclosure with Offline Clone
The MAIWO K3527N combines one M.2 NVMe slot and one 2.5/3.5 inch SATA bay in a single aluminium housing. It connects via USB 3.1 Type-C at up to 10Gbps and includes a 12V power adapter for stable operation. No driver is required on Windows, Mac OS 8.0 and above, or Linux systems.
Replaces Separate Docks and Clone Devices
A single unit now handles both drive formats and copies data between them without a computer. The toggle switch selects SATA-to-NVMe or NVMe-to-SATA direction, provided the target capacity is equal to or larger than the source. Builders who only need one format at a time, or who require hardware RAID, will not gain from the duplicator function.
Limited by USB 3.1 Gen 2 Bandwidth
The 10Gbps ceiling is shared when both bays are accessed simultaneously, so sustained throughput drops below the peak NVMe rate. SATA drives remain capped at their native 6Gbps link. The enclosure has no active cooling, so prolonged heavy transfers rely on passive aluminium dissipation and the auto-sleep feature to manage thermals.
Besonderheiten
- Dual-bay design fits M.2 NVMe and 2.5/3.5" SATA drives together
- Offline clone copies SATA to NVMe or NVMe to SATA without a computer
- USB 3.1 Gen 2 Type-C reaches 10Gbps for fast large-file transfers
- Aluminium alloy housing with honeycomb vents keeps drives cool during heavy workloads
- 12V 3A power adapter included for stable dual-drive operation
Technische Daten
| Brand | MAIWO |
|---|---|
| Model | K3527N |
| Color | Black |
| Type | M.2 NVMe SSD & 3.5/2.5 Inch SATA HDD/SSD Enclosure |
| AC Adapter | Yes |
| Material | Aluminum |
| External Interface | USB 3.1 Type-C |
| HDD Count Supported | M.2 NVMe SSD & 3.5/2.5 Inch SATA HDD/SSD Enclosure |
| Number of Bay | 2 |
| Maximum Capacity (per Bay) | Up to 10TB |
| Fan | No |
| Specifications | M.2 NVMe SSD & 3.5/2.5 Inch SATA HDD/SSD Enclosure with Offline Clone |
Fragen zu diesem Artikel

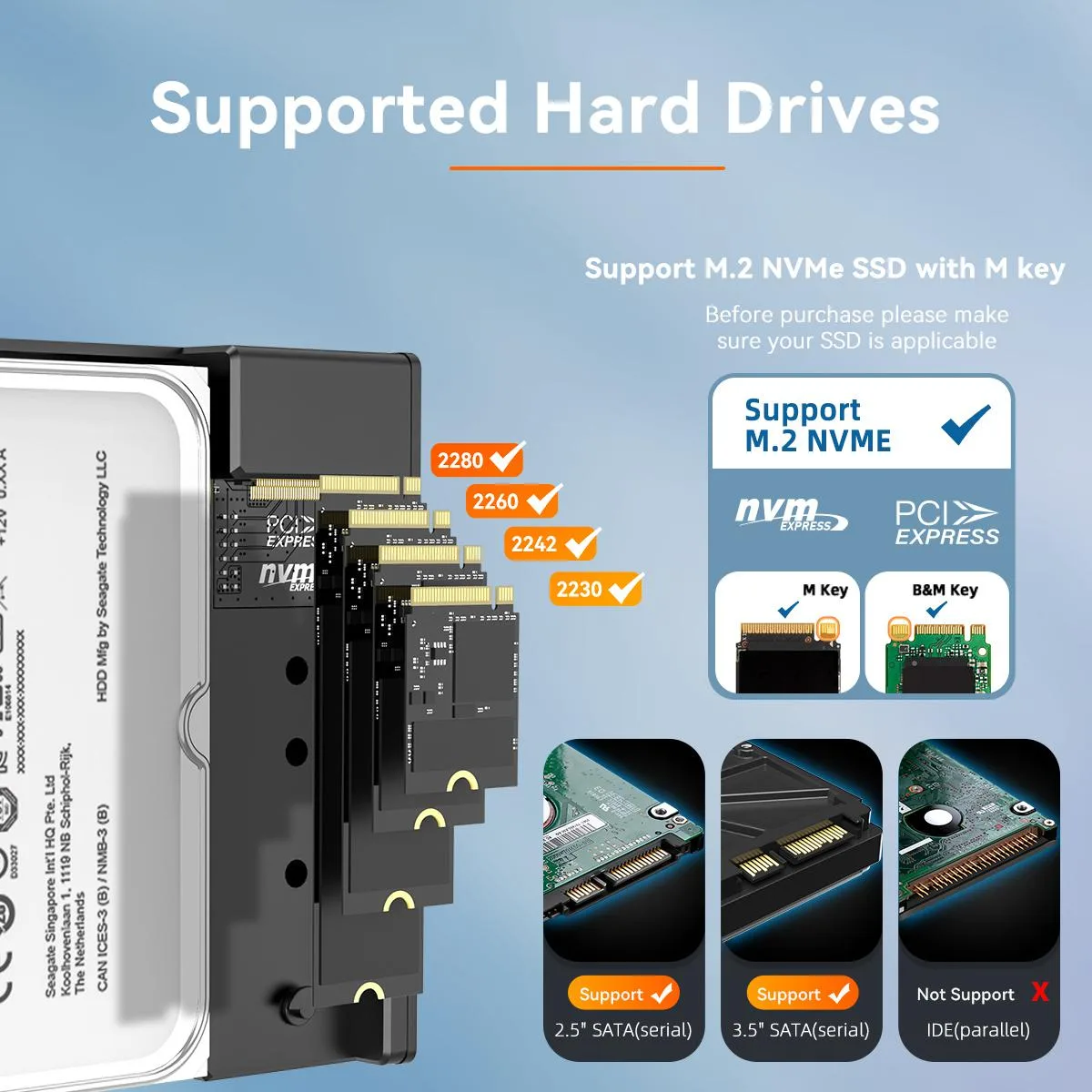

What M.2 form factors fit the NVMe bay of the K3527N?
The NVMe bay accepts 2230, 2242, 2260 and 2280 length drives.
How do I set the correct offline clone direction on the K3527N?
Use the toggle switch to choose SATA-to-NVMe or NVMe-to-SATA before pressing the clone button; the source drive must not exceed the target drive capacity.
Does the K3527N require a fan or active cooling for long cloning jobs?
No fan is included; the aluminium housing and honeycomb bracket vents provide passive cooling, and the enclosure enters auto sleep when idle.
