MAIWO
MAIWO K8AC 8-Bay SAS/SATA RAID Enclosure
Eight-bay direct-attached storage enclosure accepting 2.5" and 3.5" SAS or SATA drives with hardware RAID modes, a 5 Gbps Mini SAS link and automatic fan cooling
- Typehard disk enclosure / hard drive enclosure
- MaterialAluminum / Plastic
- Internal InterfaceSAS / SATA
- External InterfaceMini sas
- HDD Count SupportedWith RAID
- Number of Bay8 Bay
- Supports 3.5-inch and 2.5-inch SAS/SATA drives for flexible storage
- Eight RAID modes including RAID 0 and RAID 5 for data protection
- Up to 128 TB total capacity with 16 TB per bay
- Smart fan runs only above 45 °C for quiet cooling
- Touch-panel LEDs show power and RAID status at a glance
Eight-Bay DAS with RAID
The MAIWO K8AC is an eight-bay direct-attached storage enclosure that accepts both 2.5-inch and 3.5-inch SAS or SATA drives. It connects to a host system through a Mini SAS port and supports up to 16 TB per bay for a total raw capacity of 128 TB. An integrated power supply and a smart cooling fan with automatic speed control keep the unit running quietly.
Suited for multi-drive arrays.
This enclosure targets professionals who need hardware RAID across several disks, offering modes such as RAID 0, RAID 5, RAID 5+0, JBOD and spanning. The touch-panel interface provides immediate status feedback on power and array activity. Builders who only require a single external drive or who rely on IDE interfaces should consider a simpler dock instead.
Mini SAS host link defines compatibility

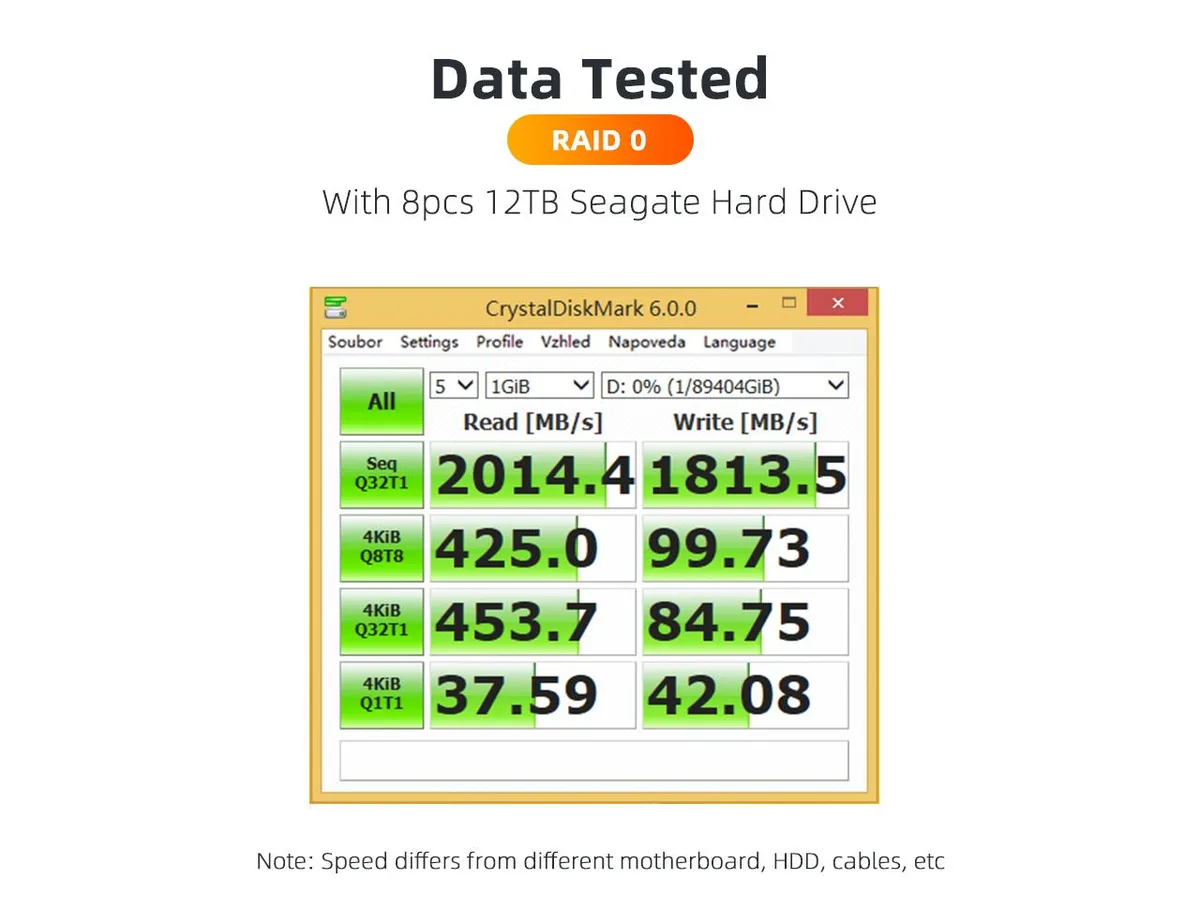

The sole external interface is a Mini SAS connector, so the host must provide a matching port or adapter. Transfer rates reach 5 Gbps when the host controller supports UASP, delivering up to 70 percent better throughput than standard operation. Verify that your workstation or server has a compatible Mini SAS connection before purchase.
Besonderheiten
- Supports 3.5-inch and 2.5-inch SAS/SATA drives for flexible storage
- Eight RAID modes including RAID 0 and RAID 5 for data protection
- Up to 128 TB total capacity with 16 TB per bay
- Smart fan runs only above 45 °C for quiet cooling
- Touch-panel LEDs show power and RAID status at a glance
Technische Daten
| Type | hard disk enclosure / hard drive enclosure |
|---|---|
| Material | Aluminum / Plastic |
| Internal Interface | SAS / SATA |
| External Interface | Mini sas |
| HDD Count Supported | With RAID |
| Number of Bay | 8 Bay |
| Maximum Capacity (per Bay) | Up to 16TB |
| Fan | Yes |
| Specifications | Product name: 8 Bay Hard Drive RAID Enclosure for 2.5/3.5 inch SAS/SATA SSD/HDD Product function: Data transfer read&write&backup Model number: K8AC Package size 45.9*45.9*26.4CM/18*18*10.3inch Product size 13.7*13.6*5.9inch Material Aluminum Color Black Weight 8.13kg Supported hard disk 2.5/3.5 SAS SATA HDD/SSD Power Source 350W Transfer rate Max 5Gbps Max capacity 16TB*8=128TB Features built-in smart temperature management system, Lcd finger-touch screen display the working temperature and working time duration |
| Operating Systems Supported | Compatible with most of the leading operating systems like MAC, Windows, Linux, and so much more |
| Features | The K8AC RAID Enclosure is the redundant array of independent drives, which adds a series of hard disk drives separate from the central system. This is great for people who usually use multiple hard disks in the system. |
| Dimensions | 13.7*13.6*5.9inch |
| Weight | 17lbs |
| Package Contents | 1x 8 Bay RAID Enclosure 1x Power Cable (1.2m/47.24inch) 1x Screw Driver |
Fragen zu diesem Artikel
How do I confirm the MAIWO K8AC is operating correctly after setup?
The front touchpad LED indicators show power status and RAID activity, while the smart fan stays off below 45 °C, runs at level 1 between 46–47 °C and level 2 at 48 °C or above.
What ships with the K8AC and what must I purchase separately?
The box contains the 8-bay enclosure, a 1.2 m power cable and a screwdriver; eight 2.5 or 3.5 inch SAS/SATA drives and a Mini SAS host cable are not included.
Which RAID mode should I choose for maximum capacity versus redundancy on the K8AC?
NORMAL or BIG LARGE combine all drives into one 128 TB volume without redundancy, while RAID 5 or RAID 5+0 sacrifice some capacity for fault tolerance across the eight bays.
