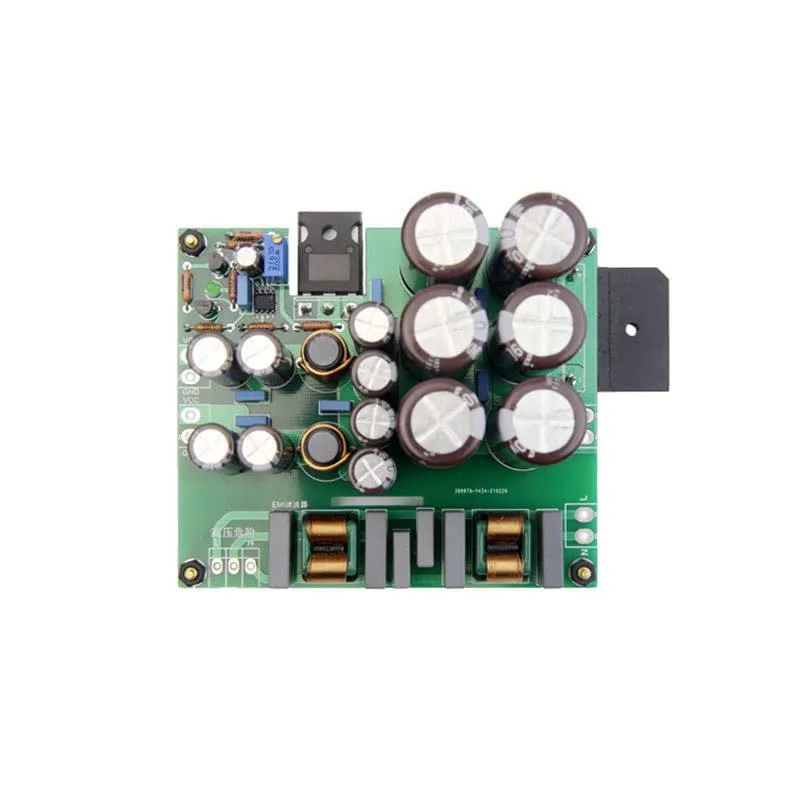

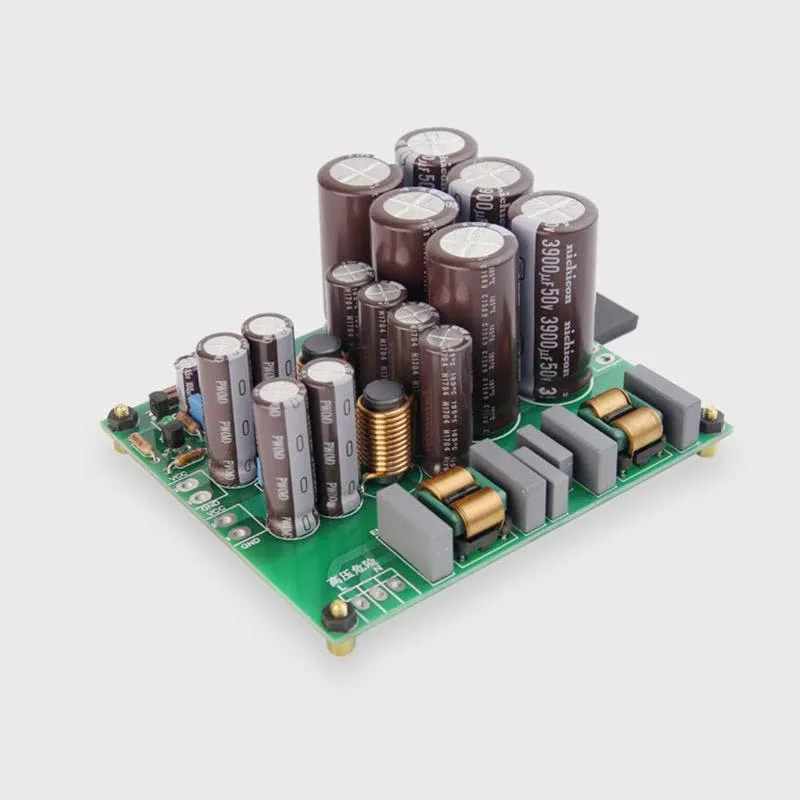

Compact green circuit board 80 by 100 by 42 mm with 12V 5A output

myVolts

myVolts 80W DC Linear Power Supply 12V 5A 80x100x42mm

SKU CH-GBYV-RDT55

80W linear power supply delivering 12V at 5A with two-stage filtering for audio, NAS and PC gear

  • TypeAT
  • Clean 12V output for sensitive audio gear via 2-stage filtering
  • 80W linear design delivers stable power without switching noise

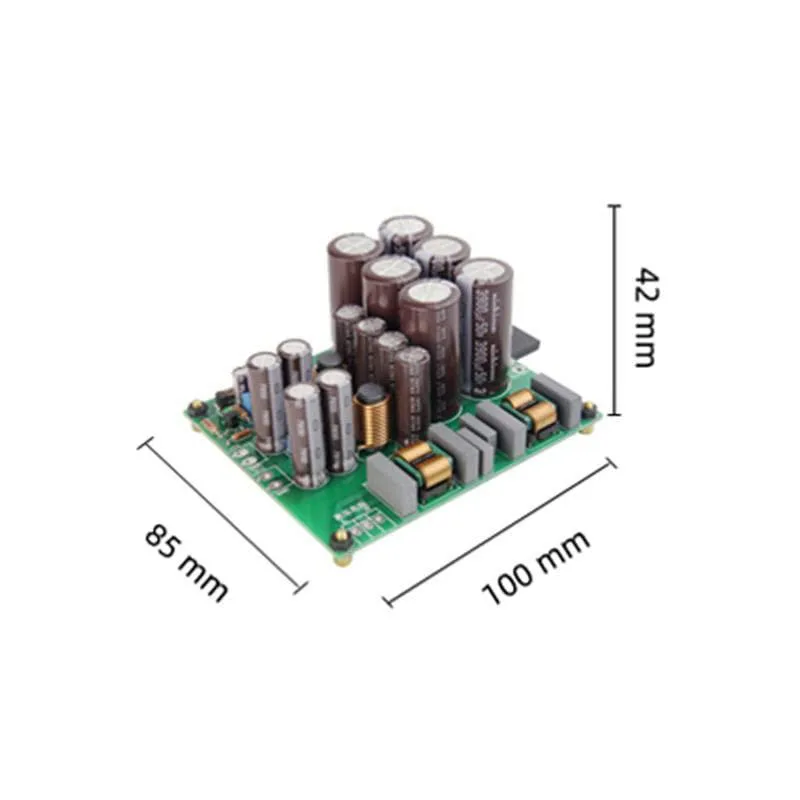

  • Compact 80x100x42mm board fits tight enclosures and NAS cases
  • 5A maximum current supports demanding speaker upgrades and PC audio
  • Ready-to-use finished board simplifies installation for HiFi projects

80W DC Linear Power Supply 12V

The myVolts 80W DC Linear Power Supply delivers 12V at up to 5A for audio speaker upgrades, NAS, CAS, PC and HiFi equipment. It uses a two-stage filtering design to provide clean linear power. The finished board measures 80 by 100 by 42mm and requires an AC12V input. Wires are not included in the package.

AC12V Input Constraint

This unit operates from an AC12V source, so it cannot connect directly to mains voltage without a separate step-down transformer. The linear regulation and two-stage filtering reduce output noise for sensitive analogue circuits. Maximum continuous output current is 5A at 12V. Builders must supply their own wiring and ensure the AC source can deliver sufficient current for the 80W rating.

Replaces Noisy Switching Adapters

The supply upgrades equipment currently powered by generic switching adapters that introduce high-frequency ripple into the signal path. Linear regulation eliminates switching artefacts, benefiting low-level audio stages and noise-sensitive storage or network gear. The improvement is most audible when the existing adapter is the dominant noise source; systems limited by other interference will show less change.

Besonderheiten

  • Clean 12V output for sensitive audio gear via 2-stage filtering
  • 80W linear design delivers stable power without switching noise
  • Compact 80x100x42mm board fits tight enclosures and NAS cases
  • 5A maximum current supports demanding speaker upgrades and PC audio
  • Ready-to-use finished board simplifies installation for HiFi projects

Technische Daten

TypeAT

Fragen zu diesem Artikel

Should I pick the 12 V 5 A version or a different voltage?

This board is fixed at 12 V with a maximum of 5 A; no other voltage or current options are offered.

What does the 80 W rating mean when the supply is installed?

It indicates the board can deliver up to 80 W continuously at 12 V, suitable for audio speakers, NAS, CAS or PC HiFi gear.

What input standard does the 12 V AC requirement follow?

The unit accepts AC 12 V input; the 2-stage filtering cleans the resulting DC output for sensitive equipment.
