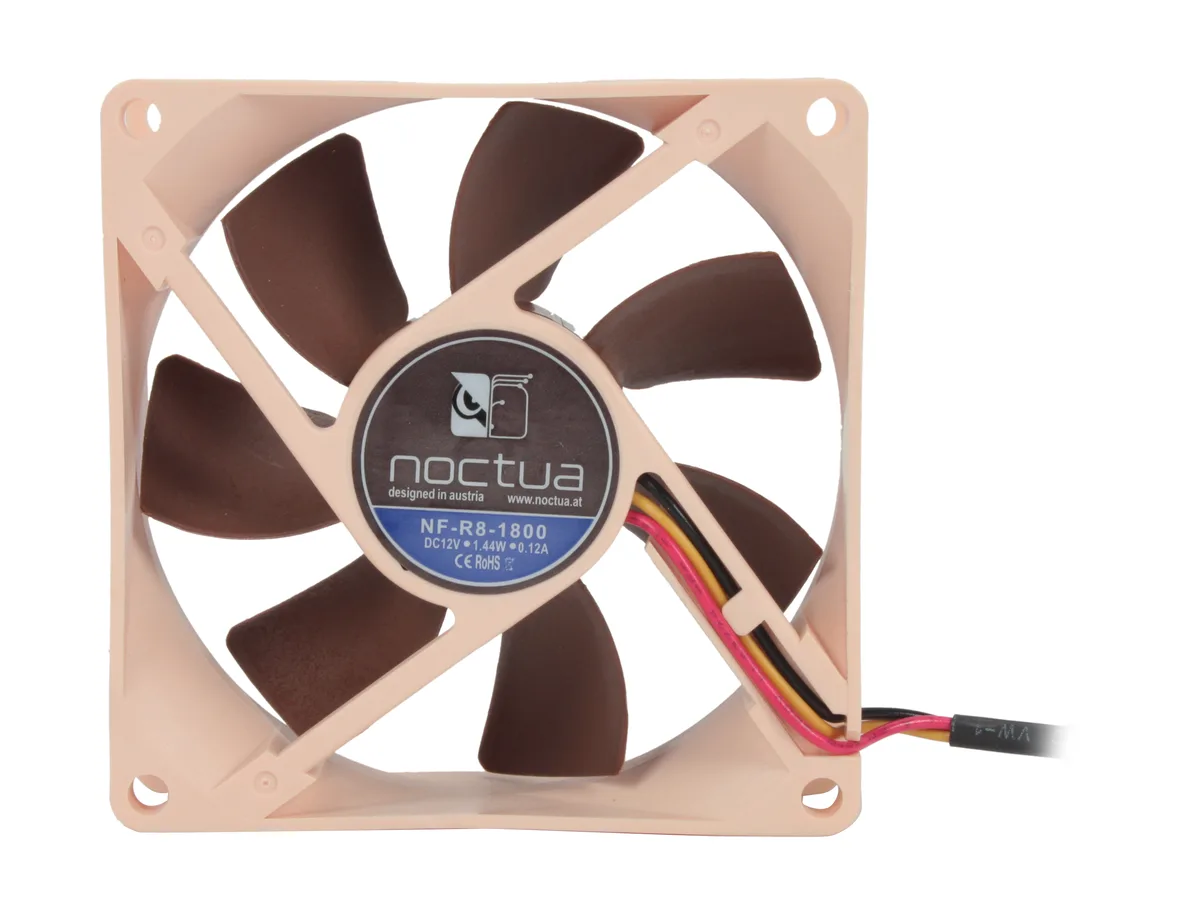

Square brown 80mm case fan with beige blades and no LEDs

Noctua

Noctua NF-R8-1800 80mm case fan 1800 RPM

SKU CH-4NXJ-PBQW6 MPN NF-R8-1800

80mm case fan runs at 1800 RPM with 17 dB(A) noise and includes low-noise adaptors for 1300 RPM or 800 RPM operation

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size80mm
  • Fan Thickness25mm
  • Quieter operation with sound-optimised blade geometry up to 10% less noise
  • Three speed options 1800 RPM standard 1300 RPM with L.N.A. 800 RPM with U.L.N.A.
  • Self-stabilising oil-pressure bearing for long-term stability and quietness
  • Low noise output 17 dB(A) standard 10 dB(A) with L.N.A. 7 dB(A) with U.L.N.A.
  • Compact 80mm by 25mm frame fits tight case spaces

80mm Case Fan for Compact Builds

The Noctua NF-R8-1800 is an 80mm case fan built for systems where space is limited. It uses a self-stabilising oil-pressure bearing for quiet operation and long service life. The rotor design was developed with an Austrian research institute to optimise blade geometry for low noise. This single fan suits small-form-factor PCs and tight mounting points.

Suited for Low-Noise 80mm Mounts

Buyers who need an 80mm fan with three preset speed options will find this model practical. The package includes low-noise and ultra-low-noise adapters to reduce speed from the default 1800 RPM. Builders who require PWM control or addressable lighting should look elsewhere. The fan has no integrated controller or LEDs of any kind.

1800 RPM Maximum Speed with Adapters

The fan runs at 1800 RPM at full voltage and produces 17 dB(A) of acoustical noise. With the supplied low-noise adapter the speed drops to 1300 RPM and noise to 10 dB(A). The ultra-low-noise adapter further reduces speed to 800 RPM and noise to 7 dB(A). These three fixed operating points determine whether the airflow meets the thermal needs of the build.

Besonderheiten

  • Quieter operation with sound-optimised blade geometry up to 10% less noise
  • Three speed options 1800 RPM standard 1300 RPM with L.N.A. 800 RPM with U.L.N.A.
  • Self-stabilising oil-pressure bearing for long-term stability and quietness
  • Low noise output 17 dB(A) standard 10 dB(A) with L.N.A. 7 dB(A) with U.L.N.A.
  • Compact 80mm by 25mm frame fits tight case spaces

Technische Daten

BrandNoctua
ModelNF-R8-1800
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size80mm
Fan Thickness25mm
Bearing TypeSSO
RPMRotational Speed (+/- 10%) 1800 RPM
Rotational Speed with L.N.A. (+/- 10%) 1300 RPM
Rotational Speed with U.L.N.A. (+/- 10%) 800 RPM
Noise LevelAcoustical Noise 17 dB(A)
Acoustical Noise with L.N.A. 10 dB(A)
Acoustical Noise with U.L.N.A. 7 dB(A)
ColorBrown
LEDNo
Dimensions80 x 80 x 25mm
Versandgewicht0.17 kg
Paketgröße213 × 150 × 36 mm

Fragen zu diesem Artikel

How often will the SSO bearing need maintenance?

The self-stabilising oil-pressure bearing is self-lubricating and designed for long-term stability without user maintenance.

What limits continuous operation at 1800 RPM?

The fan runs at 1800 RPM with a 17 dB(A) noise level; sustained use stays within this acoustic rating.

How loud and hot does it get running all day at full speed?

At 1800 RPM it produces 17 dB(A); with the supplied Low-Noise Adaptor it drops to 1300 RPM and 10 dB(A), and with the Ultra-Low-Noise Adaptor to 800 RPM and 7 dB(A).
