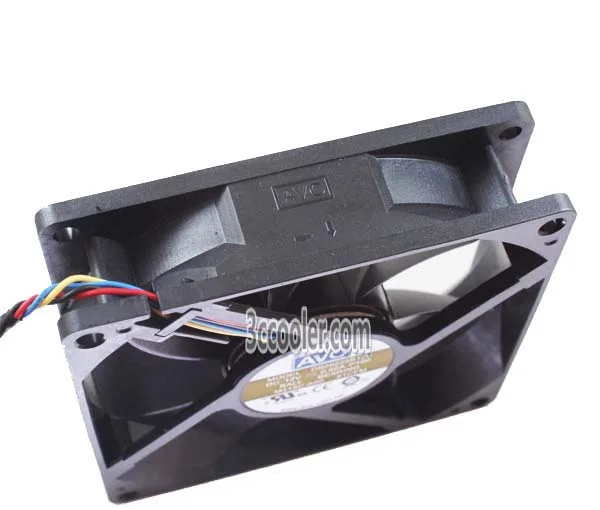

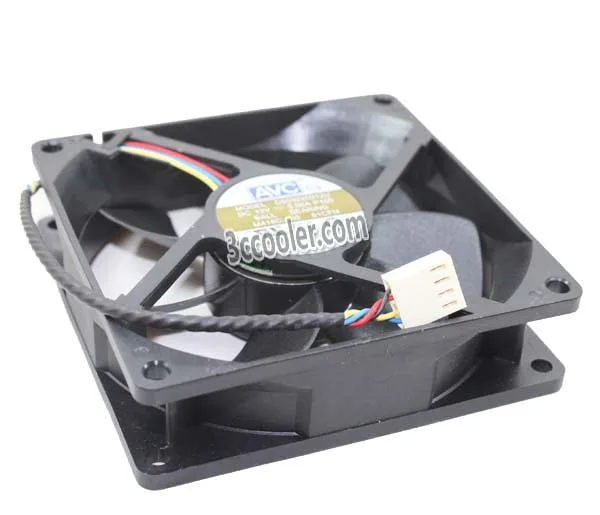

Black 92mm square CPU fan with 4-pin connector

OEM Industries

OEM Industries DS09225B12U P100 92x25mm 4-pin CPU cooler

SKU CH-2DW4-CHHBV

A 92mm square fan with ball bearing and 4-pin PWM control for CPU cooling

  • ColorBlack
  • TypeFan only
  • Fan Size92mm
  • Bearing TypeBall
  • Power Connector4 Pin
  • LEDNo
  • 92 mm frame fits standard CPU mounts
  • 25 mm thickness clears low-profile cases
  • ball bearing extends operating life
  • 4-pin PWM connector enables automatic speed control
  • 12 V 0.56 A draws minimal power

Compact 92 mm CPU cooler for low-profile builds

This 92 x 25 mm square cooler fits tight chassis where larger towers cannot. The four-pin PWM connector lets the motherboard regulate speed automatically. Ball-bearing construction supports continuous operation in always-on systems. It is aimed at builders assembling small-form-factor or replacement units.

Four-pin PWM control defines the practical speed

The motherboard can vary voltage between minimum and maximum duty cycles, but the fan itself is rated at 12 V and 0.56 A. No RGB or addressable lighting is present, so the header carries only power and tachometer signals. Acoustic and thermal ceilings are set by this single-fan design.

Replaces stock 92 mm coolers when noise

The jump is worthwhile if the original cooler uses sleeve bearings that have worn or if the chassis cannot accommodate a taller heatsink. It does not suit builds requiring dual-fan airflow, liquid-cooling mounts or higher static pressure than a single 92 mm unit can deliver.

Besonderheiten

  • 92 mm frame fits standard CPU mounts
  • 25 mm thickness clears low-profile cases
  • ball bearing extends operating life
  • 4-pin PWM connector enables automatic speed control
  • 12 V 0.56 A draws minimal power

Technische Daten

ModelDS09225B12U
ColorBlack
TypeFan only
Fan Size92mm
Bearing TypeBall
Power Connector4 Pin
LEDNo

Fragen zu diesem Artikel

Which 92 mm variant should I pick for a standard CPU header?

The DS09225B12U P100 is the only 92x25 mm version listed, with a 12 V 0.56 A 4-pin PWM connector that fits standard CPU fan headers.

What does the 12 V 0.56 A rating mean once the fan is running in my system?

It draws up to 0.56 A on the 12 V rail, so the motherboard header must supply at least that current for full speed control.

How does the 4-pin PWM interface cap the fan's speed range in practice?

The 4-wire PWM connection lets the motherboard vary duty cycle from 0 to 100 %, giving full speed control down to near-zero RPM.
