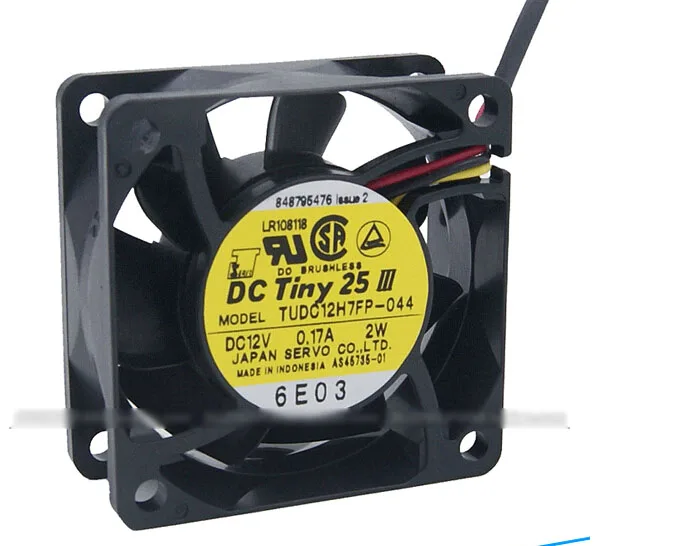

Black 60mm square fan with three-pin connector

OEM Industries

OEM Industries TUDC12H7FP-044 60mm 12V CPU cooler

SKU CH-NJAP-B4XFE MPN TUDC12H7FP-044

A 60 mm, 12 V fan with double ball bearings and a 3-pin connector runs at 4800 RPM for CPU cooling

  • ColorBlack
  • TypeFan only
  • Fan Size60mm
  • Bearing Type2 Ball
  • Power Connector3 Pin
  • LEDNo
  • Compact 60 mm frame fits tight builds
  • Double ball bearing extends fan life
  • 12 V, 0.17 A draw keeps power use low
  • 3-pin connector enables speed monitoring
  • 4800 RPM reference speed moves more air

60 mm 12 V CPU fan for compact builds

This 60 mm fan runs on 12 V DC and draws 0.17 A through a standard three-pin connector. Double ball bearings support a reference speed of 4800 RPM with a 5 % tolerance. The unit measures 60 mm square by 25 mm thick and carries no LED lighting.

Replaces worn 60 mm coolers in tight enclosures

It fits the same mounting pattern as legacy 60 mm heatsink fans used in small-form-factor PCs and embedded boards. The upgrade is worthwhile when the original sleeve-bearing unit has become noisy or has slowed below its rated speed. A fresh double-ball assembly restores reliable airflow without changing the mounting hardware.

Fits 60 mm heatsink mounts with three-pin headers

The three-pin plug connects directly to a motherboard or controller header that supplies 12 V. No separate power adapter or PWM circuitry is required. The slim 25 mm profile leaves clearance for adjacent components in dense layouts, while the black frame blends with standard board aesthetics.

Besonderheiten

  • Compact 60 mm frame fits tight builds
  • Double ball bearing extends fan life
  • 12 V, 0.17 A draw keeps power use low
  • 3-pin connector enables speed monitoring
  • 4800 RPM reference speed moves more air

Technische Daten

ModelTUDC12H7FP-044
ColorBlack
TypeFan only
Fan Size60mm
Bearing Type2 Ball
Power Connector3 Pin
LEDNo

Fragen zu diesem Artikel

Will the 60mm fan fit a standard 60mm x 60mm mounting pattern?

Yes, the fan measures 60mm x 60mm x 25mm, matching the common 60mm square mounting holes used on many CPU heatsinks and chassis brackets.

How do I connect the 3-pin connector so the motherboard reads the speed signal?

Align the three pins — ground, 12V, and tach — with the motherboard CPU fan header; the keyed shroud prevents reversed insertion, but the yellow wire must sit on the sense pin for RPM reporting.

When should I plan to replace the double ball bearing fan?

The double ball bearing is rated for long life at the 4800 RPM reference speed; listen for increased noise or vibration as the primary sign that the bearing is wearing out.
