Orico
Orico 3559RU3-US-BK-BP 5-bay RAID drive enclosure
Holds five 2.5" or 3.5" SATA drives with hardware RAID 0, 1, 5, 10, JBOD and clone modes, USB 3.0 at 5 Gbps, aluminium chassis with built-in fan and 150 W power supply.
- ColorBlack
- Size2.5" & 3.5"
- TypeDock
- AC AdapterYes
- MaterialAluminum
- Internal InterfaceSATA I/II/III
# of Bay 5 Bay
- 4 Bay
- 5 Bay
- Five-bay enclosure supports up to 90TB total capacity
- RAID 0, 1, 5, 10, JBOD and Clone modes for flexible data protection
- USB 3.0 interface delivers up to 5Gbps transfer speed
- Aluminium chassis with built-in fan provides double heat dissipation
- Tool-free trays with screws secure both 2.5" and 3.5" SATA drives
Five-bay RAID enclosure for high-capacity storage

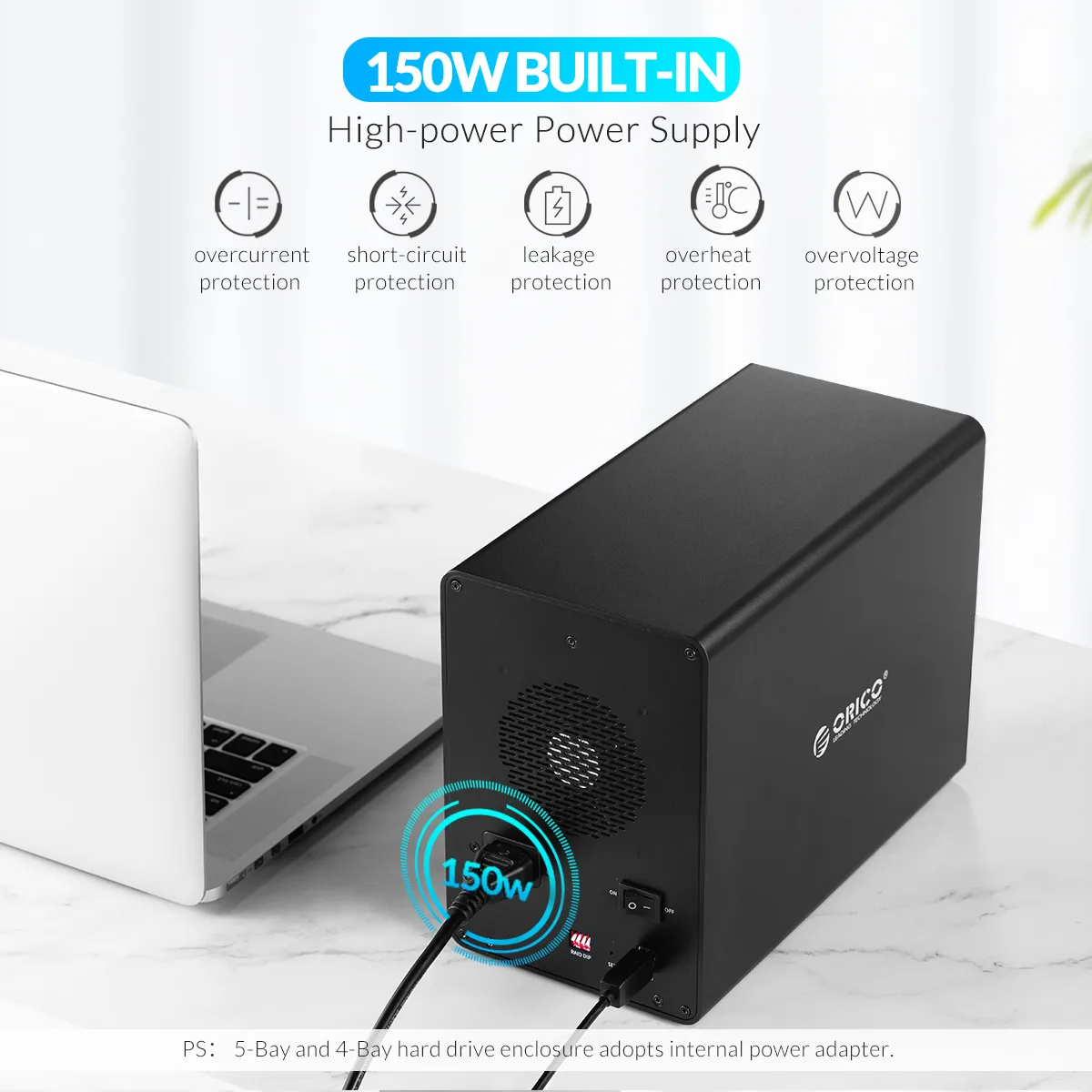

The Orico 3559RU3-US-BK-BP is a five-bay external enclosure that accepts 2.5" and 3.5" SATA hard drives or SSDs. It targets users who need large pooled storage for enterprise data, server expansion, security footage or game libraries. An integrated 150W power supply drives all bays, while a built-in fan and aluminium chassis provide cooling.
Tool-free trays with screw securing and RAID mode

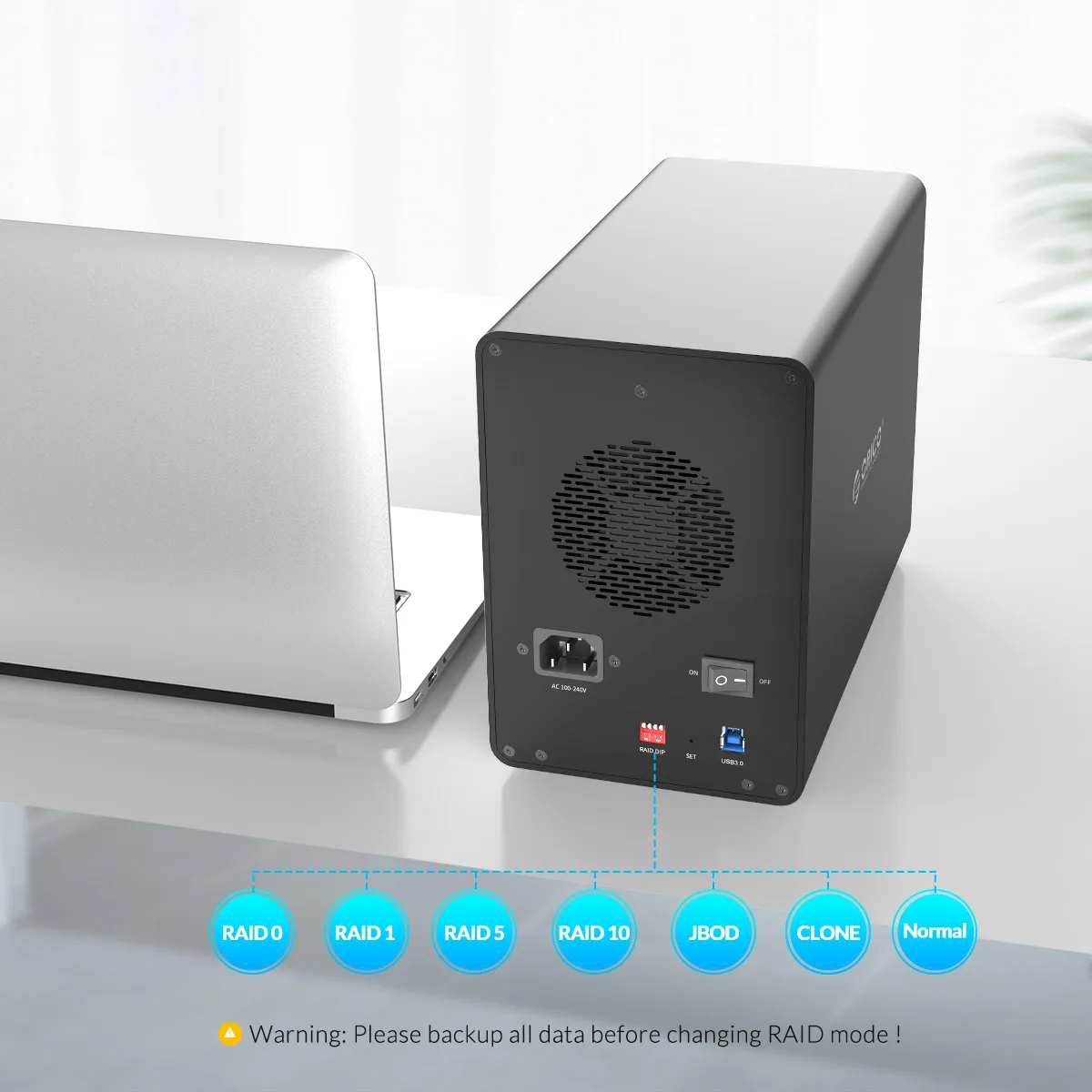

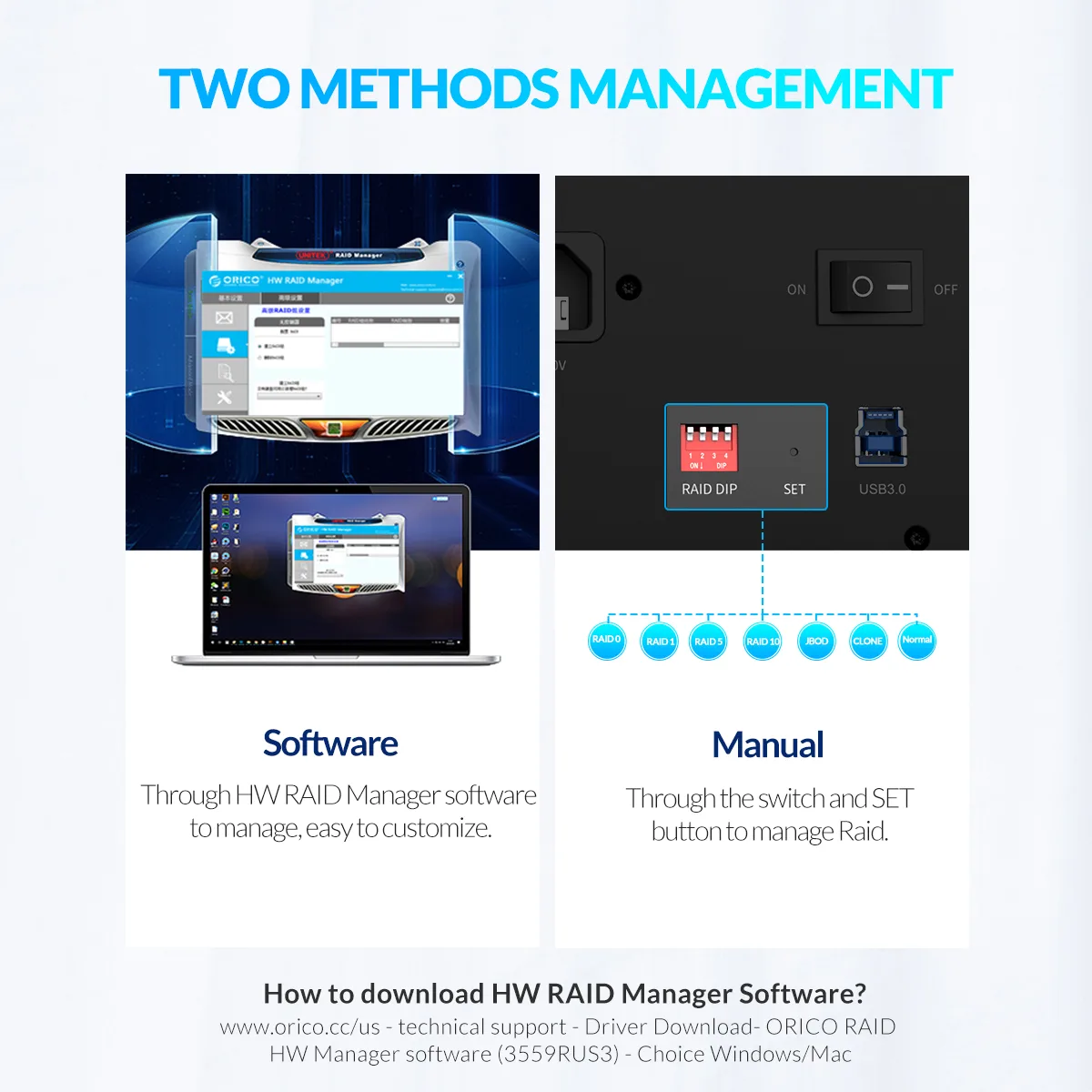

Each bay uses a pull-out tray that opens by releasing a side buckle; drives are inserted and fixed with the supplied screws. RAID mode is set via a hardware switch or the supplied software manager, offering RAID 0, 1, 5, 10, JBOD, Clone and Normal options. The USB 3.0 link caps transfer rates at 5 Gbps, so sustained throughput will be lower than direct SATA connections.
Verify drive height, OS support
Confirm that each drive is a standard-height 2.5" or 3.5" SATA unit; thicker enterprise models may not fit the trays. The enclosure works with Windows, macOS and Linux, but the software manager may have limited functionality on non-Windows systems. Maximum supported capacity is 18 TB per drive and 90 TB total, so plan your drive purchases accordingly.
Besonderheiten
- Five-bay enclosure supports up to 90TB total capacity
- RAID 0, 1, 5, 10, JBOD and Clone modes for flexible data protection
- USB 3.0 interface delivers up to 5Gbps transfer speed
- Aluminium chassis with built-in fan provides double heat dissipation
- Tool-free trays with screws secure both 2.5" and 3.5" SATA drives
Technische Daten
| Color | Black |
|---|---|
| Size | 2.5" & 3.5" |
| Type | Dock |
| AC Adapter | Yes |
| Material | Aluminum |
| Internal Interface | SATA I/II/III |
| External Interface | USB 3.0 |
| HDD Count Supported | With RAID |
| Number of Bay | 5 Bay |
| Maximum Capacity (per Bay) | Single disk 18TB, supports 90TB Max |
| Fan | Yes |
| Versandgewicht | 4.19 kg |
| Paketgröße | 368 × 312 × 224 mm |
Andere Versionen dieses Modells
1 weitere aus dieser Serie
Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.
Fragen zu diesem Artikel
How can I verify the RAID array is functioning correctly after setting up the 5-bay enclosure?
The enclosure supports RAID 0, 1, 5, 10, JBOD, Clone and Normal modes. Use the supplied software manager or the manual hardware method to configure the array, then check the operating system's disk management utility to confirm the expected volume size and redundancy status.
What ships with the 3559RU3-US-BK-BP and what must I provide myself?
The package includes the 5-bay RAID enclosure, a power cord, a certification sheet, a user manual and a set of mounting screws. You must supply up to five 2.5" or 3.5" SATA hard drives or SSDs.
Which capacity drives should I choose for the five bays to reach the maximum supported storage?
Each bay accepts a single SATA drive up to 18 TB, allowing a total of 90 TB across all five bays. Populate every bay with an 18 TB drive to reach that limit.
