Orico
Orico M2PJ-C3 M.2 NVMe drive enclosure USB 3.2 10Gbps Rose Gold
- Rose Gold
- M.2
28,99 $
0.00036476BTC
Auf Lager
Orico
Orico M2PJ-C3 NVMe drive enclosure USB 3.1 Gen2 10Gbps 2230-2280 silver
Aluminium enclosure fits M.2 NVMe SSDs from 2230 to 2280 and connects via USB 3.2 Type-C at 10 Gbps
- ColorSilver
- SizeM.2
- TypeEnclosure
- MaterialAluminum
- Internal InterfaceM.2 NVME M-Key
- External InterfaceUSB 3.1 Type-C
Color Silver
- Rose Gold
- Silver

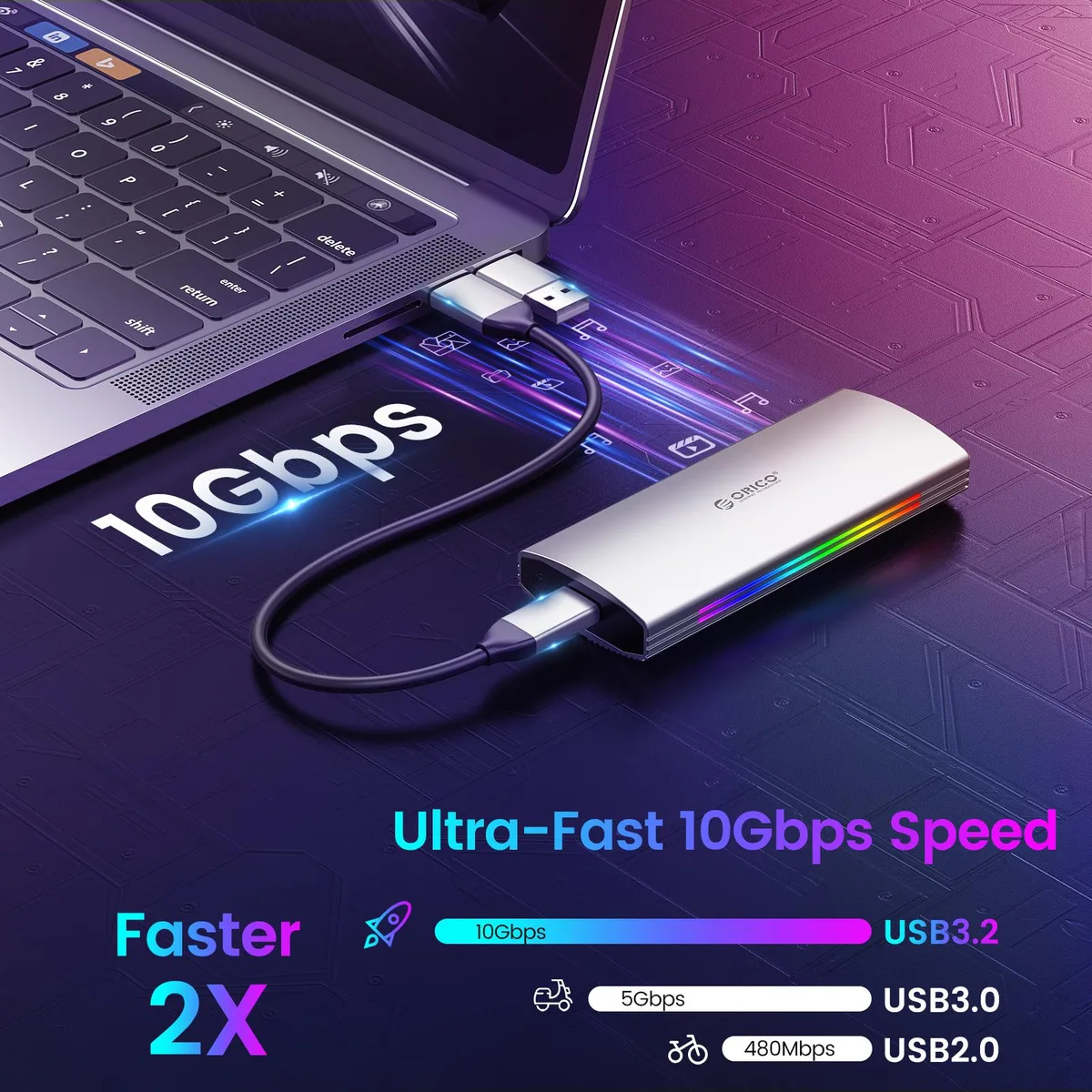

- 10 Gbps USB 3.2 Gen 2 speeds up to 1200 MB/s with supported NVMe SSDs
- Aluminum alloy shell with CNC-cut strips and included cooling vest for full-direction heat dissipation

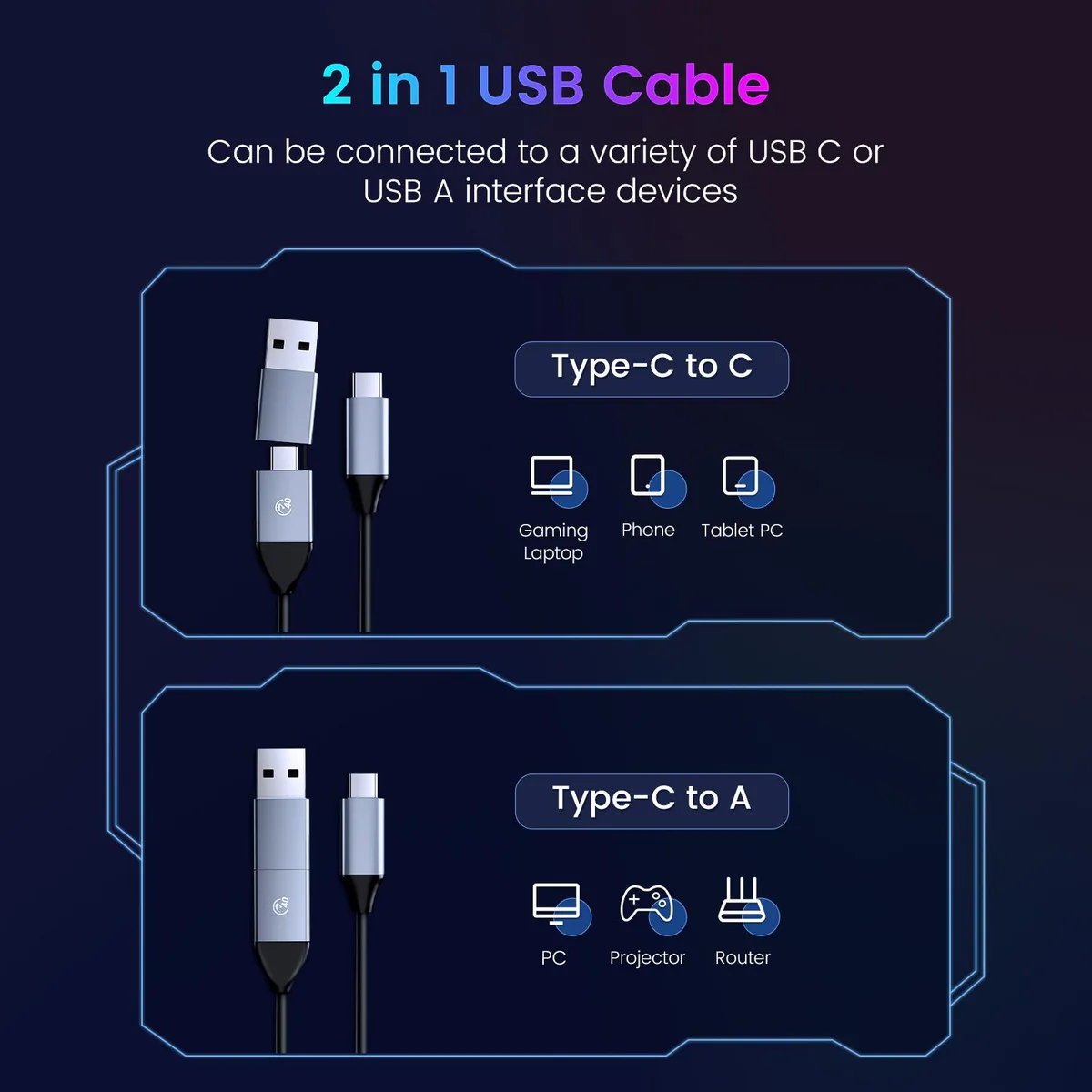

- 2-in-1 USB-C to A and USB-C to C cable enables connections to PCs and OTG phones
- Tool-free slide design fits 2230 2242 2260 2280 NVMe M-key or B+M-key drives
- Auto-sleep after 10 minutes idle plus sandwich-mounted PCBA protects SSD from vibration
Enclosure for M.2 NVMe SSDs up to 4 TB
This aluminium enclosure accepts a single M-key or B+M-key NVMe module in 2230, 2242, 2260 or 2280 lengths. It connects through a USB 3.1 Gen 2 Type-C port with UASP support and includes a 2-in-1 USB-C to USB-A / USB-C cable. A thermal pad and wrap-around cooling vest manage drive temperature, while an auto-sleep function powers the SSD down after ten minutes of inactivity.
Suits portable workflows with laptops.
The slim 106.5 mm by 29 mm by 11.5 mm shell fits in a bag pocket and works with Windows, macOS and Linux without drivers. It is not for buyers who need multiple bays, RAID modes or support for M.2 modules that use a different protocol than NVMe. The single-bay design also rules out anyone wanting to access two drives at once.
USB 3.1 Gen 2 10 Gbps interface caps real-world
Theoretical bandwidth reaches 1000–1200 MB/s, but actual speed depends on the installed SSD, the host port and system performance. The 10 Gbps ceiling is the decisive figure when choosing this enclosure over slower or faster alternatives.
Besonderheiten
- 10 Gbps USB 3.2 Gen 2 speeds up to 1200 MB/s with supported NVMe SSDs
- Aluminum alloy shell with CNC-cut strips and included cooling vest for full-direction heat dissipation
- 2-in-1 USB-C to A and USB-C to C cable enables connections to PCs and OTG phones
- Tool-free slide design fits 2230 2242 2260 2280 NVMe M-key or B+M-key drives
- Auto-sleep after 10 minutes idle plus sandwich-mounted PCBA protects SSD from vibration
Technische Daten
| Brand | ORICO |
|---|---|
| Series | ORICO M2PJ-C3 |
| Color | Silver |
| Size | M.2 |
| Type | Enclosure |
| Material | Aluminum |
| Internal Interface | M.2 NVME M-Key |
| External Interface | USB 3.1 Type-C |
| HDD Count Supported | Single SSD |
| Number of Bay | 1 Bay |
| Maximum Capacity (per Bay) | Up to 4TB |
| Operating Systems Supported | Windows / Mac / Linux |
| Features | Support M.2 M key and B+M key,note that only the NVME protocol can be supported. |
| Dimensions | 106.5mm(L)*29mm(W)*11.5mm(H) |
Andere Versionen dieses Modells
1 weitere aus dieser Serie
Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.
Fragen zu diesem Artikel
How do I know the enclosure is working after I connect it?
The RGB lighting turns on and the drive appears in your OS file manager; after 10 minutes of inactivity the auto-sleep function dims the lights to show the SSD has entered low-power mode.
What comes in the box and what must I supply?
The package includes the aluminum enclosure, a 2-in-1 USB-C to USB-A and USB-C to USB-C cable, one thermal pad and the cooling vest; you must provide your own M.2 NVMe SSD in 2230, 2242, 2260 or 2280 size.
Which SSD length should I choose for this enclosure?
The enclosure accepts M.2 NVMe drives in 2230, 2242, 2260 and 2280 lengths, so pick the capacity you need in any of those four form factors.
