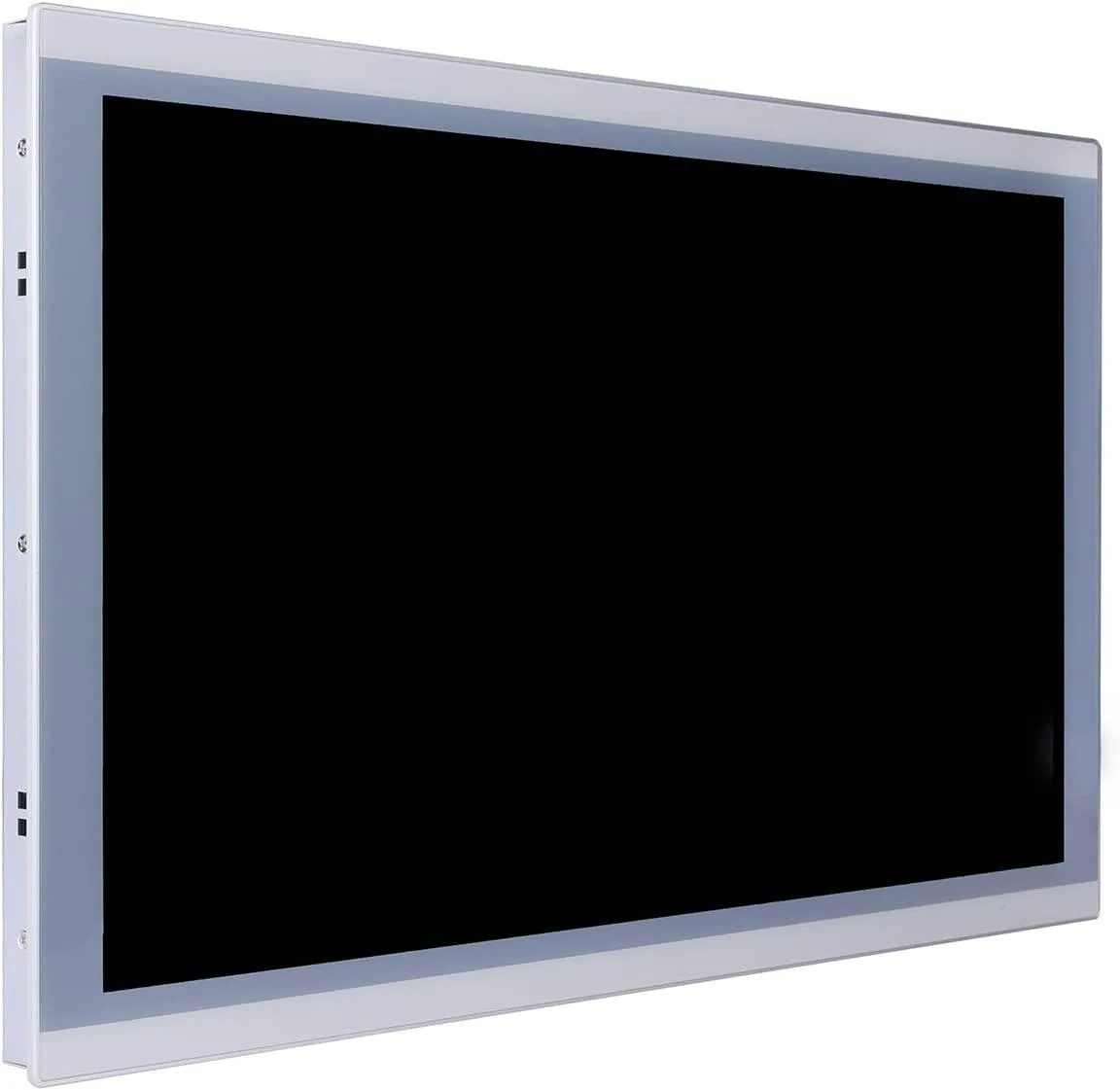

Silver 18.5 inch industrial all-in-one panel PC with resistive touchscreen

partaker

Partaker A15-PA-190TPC-CE5C(I34) 18.5" all-in-one PC

SKU CH-JSX9-PRJ06

18.5-inch industrial all-in-one with IP65 front panel, Intel Core i3 4th Gen, 8GB DDR3, 512GB SSD, 5-wire resistive touchscreen, fanless aluminium cooling, VGA, HDMI, dual COM ports and 12V DC power

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 4th Gen
  • CPU Name1.90GHz
  • GPU/VGA TypeIntel HD Graphics 4400

GPU Intel HD Graphics 4400

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.

  • IP65 front-panel protection for dust and water resistance
  • 1920 x 1080 TFT LED display with 250 cd/m² brightness
  • Fanless aluminium alloy cooling for silent 24/7 operation
  • Intel Core i3 4th Gen with 8 GB DDR3 and 512 GB SSD
  • Industrial I/O including 2 COM, HDMI, VGA, LAN and 4 USB ports

Industrial all-in-one for embedded deployment

The Partaker A15-PA-190TPC-CE5C(I34) is an 18.5" panel PC built for continuous industrial use. It combines an Intel Core i3 4th Gen processor at 1.90GHz with 8GB DDR3L memory and a 512GB SSD. The IP65-rated front panel and 5-wire resistive touchscreen suit factory floors, kiosks and machine interfaces where gloves or moisture are common.

Fanless aluminium chassis runs silently

An aluminium alloy enclosure dissipates heat without fans, so the system produces no acoustic noise and draws minimal power from a 12V DC supply. Operating temperature ranges from 0 to 50°C with the fitted SSD, and the 250cd/m² display is rated for 30000 hours of backlight life. The watchdog timer offers 255 levels of hardware monitoring for unattended 7×24 operation.

Mounting kits and expansion slots included

Embedded buckle kits allow panel-mount installation in a 454×276.5mm cut-out, while VESA-compatible points support wall, desktop or cantilever mounting. I/O covers HDMI, VGA, two USB3.0, two USB2.0, LAN, audio, two COM ports and a 12V DC jack. A Mini PCIe slot with a SIM holder accepts Wi-Fi or 4G modules for wireless connectivity.

Besonderheiten

  • IP65 front-panel protection for dust and water resistance
  • 1920 x 1080 TFT LED display with 250 cd/m² brightness
  • Fanless aluminium alloy cooling for silent 24/7 operation
  • Intel Core i3 4th Gen with 8 GB DDR3 and 512 GB SSD
  • Industrial I/O including 2 COM, HDMI, VGA, LAN and 4 USB ports

Technische Daten

ModelA15-PA-190TPC-CE5C(I34)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 4th Gen
CPU Name1.90GHz
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size18.5"
TouchscreenYes

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

How is the panel PC mounted using the embedded buckle kits and what step is often missed?

Cut a 454 x 276.5 mm opening, slide the unit in from the front, and fasten the supplied buckle kits to the rear chassis; the step often missed is tightening all buckles evenly so the front IP65 seal seats uniformly.

Which components will need replacement first and what are their rated lifespans?

The backlight is rated for a minimum of 30,000 hours and the 5-wire resistive touch screen for 35 million touches; both are the primary wear items under continuous operation.

What thermal limit appears first during sustained 7 × 24 operation in a sealed cabinet?

The fanless aluminum chassis is rated for 0 – 50 °C ambient with the installed SSD; exceeding this internal temperature will trigger throttling or shutdown before any other component limit is reached.
