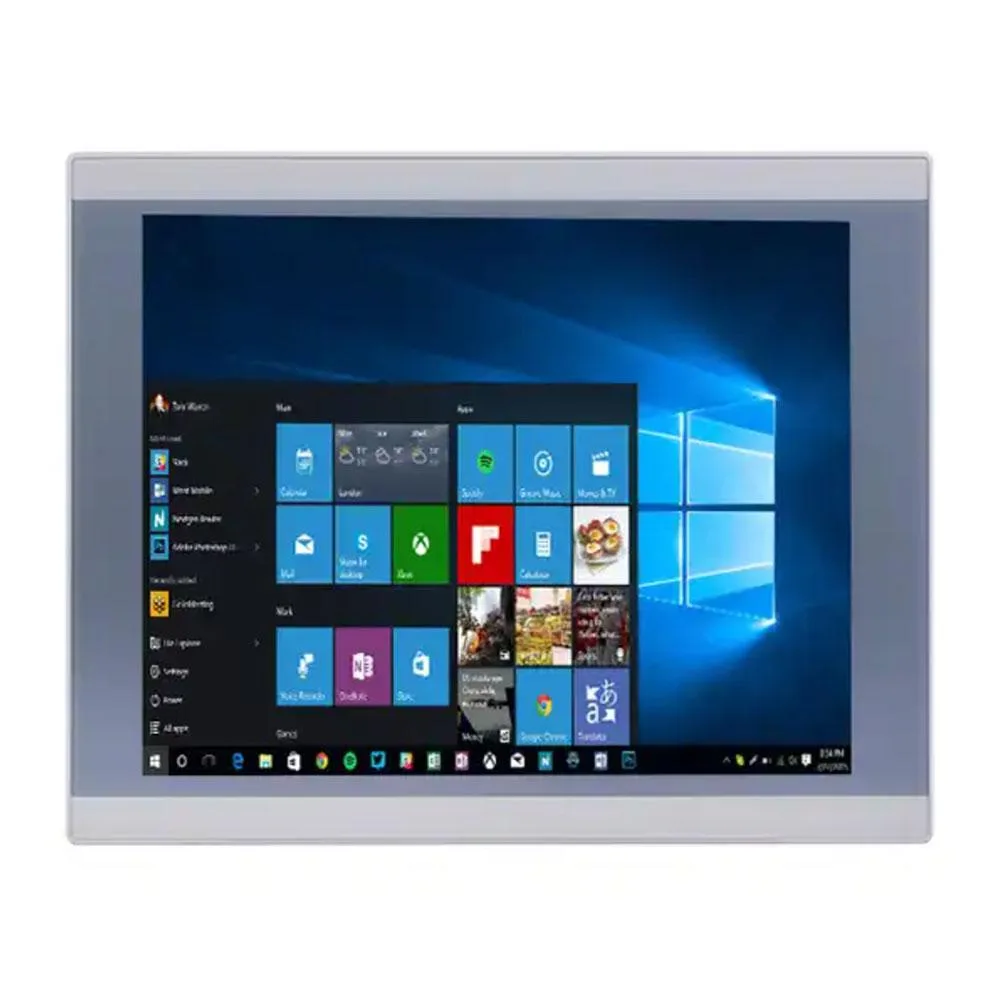

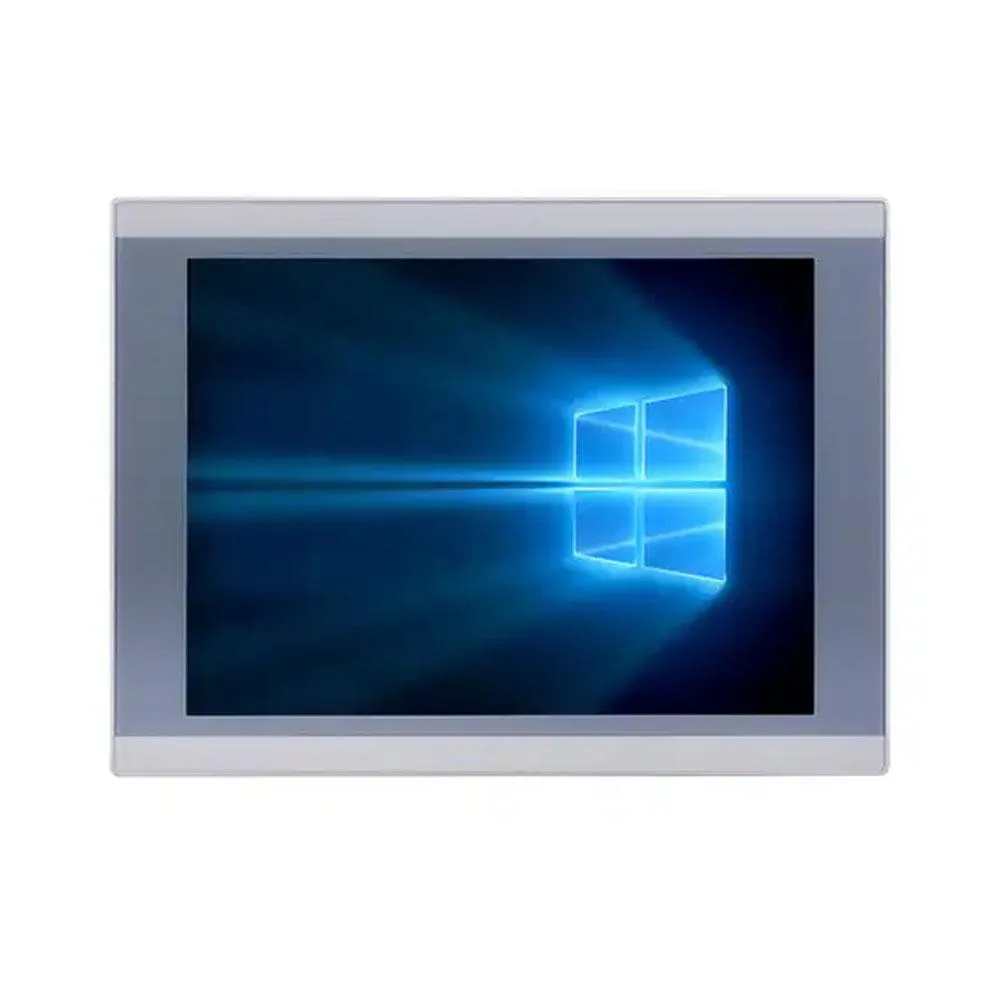

Silver 12.1 inch industrial all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

partaker A2-PA-121TPC-CE5B(I58)-16G512G all-in-one PC

SKU CH-MQ4R-7AXJW

12.1-inch IP65 industrial panel PC with resistive touch, Core i5-8265U, 16 GB DDR4 and 512 GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i5 8th Gen

CPU Name Intel Core i5-8265U

GPU Intel UHD Graphics

Memory 16GB DDR4

SSD 512GB

HDD None

Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.

  • IP65 front panel resists dust and water ingress
  • Intel Core i5-8265U up to 3.90 GHz handles industrial workloads
  • 16 GB DDR4 with two slots expandable to 64 GB
  • Fanless aluminium alloy chassis runs silently 24/7
  • 1 inch resistive touchscreen rated 35 million touches

Industrial 12.1" Panel PC

The Partaker A2-PA-121TPC-CE5B(I58)-16G512G is a fanless all-in-one system built around an Intel Core i5-8265U processor with 16GB DDR4 memory and a 512GB SSD. It integrates a 12.1 inch TFT LED display with a high-temperature 5-wire resistive touchscreen protected to IP65 at the front. Windows 11 Pro comes pre-installed for immediate deployment.

IP65 front-panel protection

The defining specification is the IP65-rated front panel combined with a resistive touchscreen rated for 35 million touches and an operating range of 0 to 50°C. Aluminium alloy construction provides silent fanless cooling, while the 1024 x 768 screen delivers 350 cd/m² brightness and 1000:1 contrast for readable visuals in harsh environments.

Suits embedded automation and kiosk roles

This unit suits integrators who need a compact, sealed panel PC with dual LAN, dual COM, HDMI, VGA and multiple USB ports for legacy and modern peripherals. Buyers who require a capacitive multi-touch interface, a larger display diagonal, or an internal PCIe expansion slot beyond the Mini PCIe bay should evaluate alternative form factors.

Besonderheiten

  • IP65 front panel resists dust and water ingress
  • Intel Core i5-8265U up to 3.90 GHz handles industrial workloads
  • 16 GB DDR4 with two slots expandable to 64 GB
  • Fanless aluminium alloy chassis runs silently 24/7
  • 1 inch resistive touchscreen rated 35 million touches

Technische Daten

ModelA2-PA-121TPC-CE5B(I58)-16G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

How does the Core i5-8265U's 3.90 GHz turbo speed translate to everyday industrial workloads?

The processor reaches 3.90 GHz on a single core for burst tasks such as HMI updates or data logging, while its four cores and eight threads keep multiple PLC or SCADA windows responsive.

What display outputs does the HDMI and VGA combination actually support?

HDMI and VGA ports drive two independent monitors at up to 1024 x 768 each, suitable for extending a control-room desktop or mirroring the built-in 12.1" panel.

What cut-out size and mounting depth does the embedded installation need?

The panel requires a 301 x 229 mm opening and 54.5 mm depth behind the front face, secured with the supplied embedded buckle kits.
