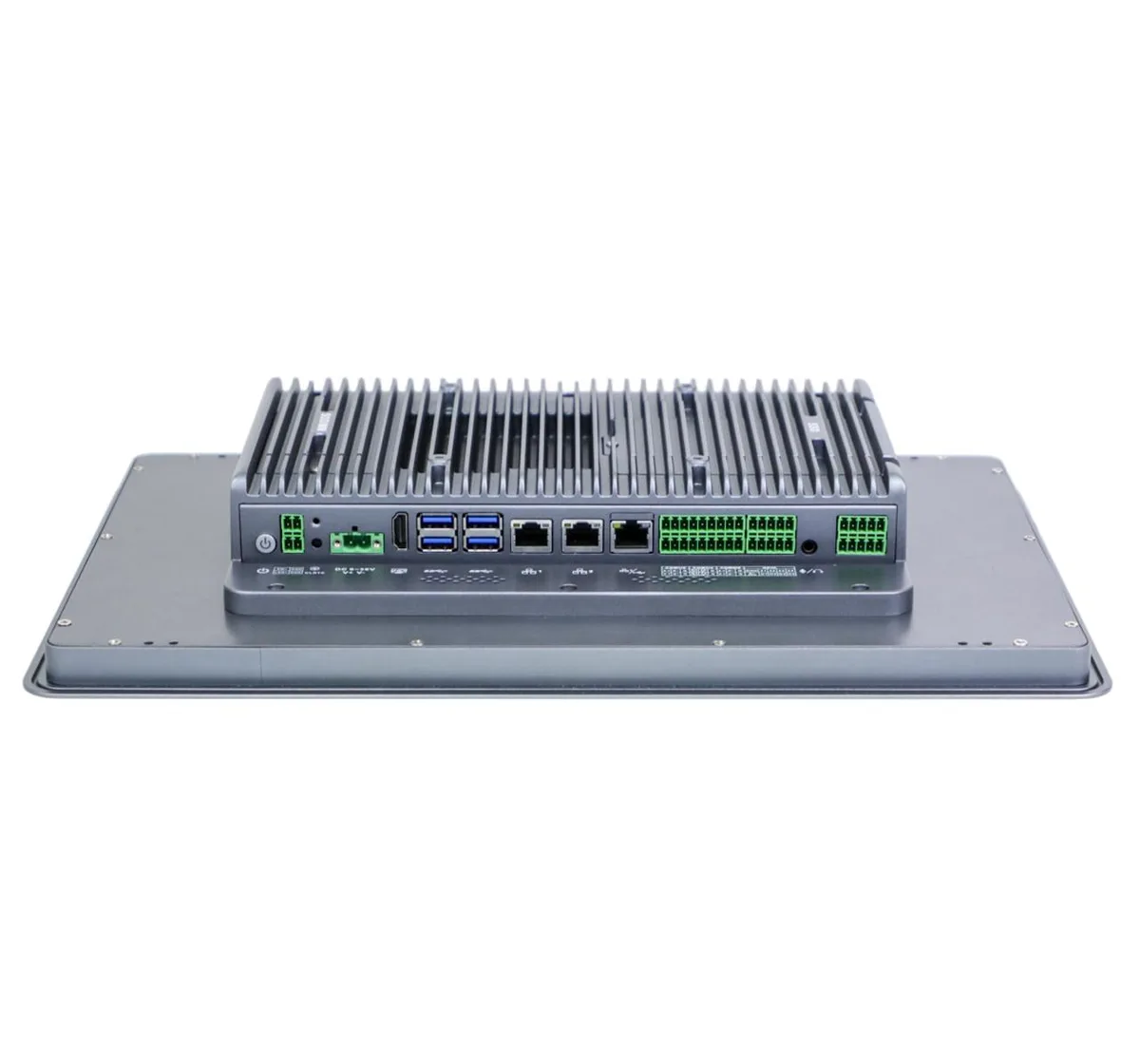

Gray 15-inch industrial all-in-one PC with flat capacitive touchscreen and fanless aluminum-steel chassis

partaker

partaker A20 15" All-in-One PC i7-1255U 16GB 256GB

SKU CH-5XDS-F6DV2

Industrial 15-inch all-in-one with IP65 front panel, Core i7-1255U, 16GB DDR5, 256GB storage, and extensive legacy I/O for harsh environments

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 12th Gen
  • Screen Size15"

Option 16GB RAM / 256GB SSD

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium-steel chassis runs silently without moving parts
  • Intel Core i7-1255U delivers 10 cores and 12 threads up to 4.70 GHz
  • 16 GB DDR5-4800 memory with single SODIMM slot expandable to 32 GB
  • Triple LAN (2× GbE, 1× 2.5 GbE) plus 6 COM ports for industrial connectivity

Industrial 15-inch panel PC

The Partaker A20 is a 15-inch all-in-one panel PC built around an Intel Core i7-1255U processor with 10 cores and 12 threads. It ships with Windows 11 Pro, 16GB of DDR5 memory and a 256GB NVMe SSD. An IP65-rated front panel and fanless aluminium-steel chassis target industrial automation, machine control and harsh-environment deployments.

Memory and storage headroom

The single SODIMM slot accepts up to 32GB of DDR5 4800MHz memory, doubling the fitted 16GB for heavier workloads. Storage expands through two M.2 2280 slots supporting NVMe or SATA drives plus a 2.5-inch bay, allowing additional SSDs or hard drives. The 4:3 capacitive touch screen runs at 1024×768 with 350 cd/m² brightness.

Interface practical limits

Three independent displays are supported via HDMI and optional JHDMI or LVDS outputs. Networking provides two Gigabit LAN ports and one 2.5G LAN port. Six COM ports include two configurable for RS232 or RS485, while isolated GPIO offers four inputs and four outputs. Power input accepts 9-36V DC with reverse polarity protection.

Besonderheiten

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium-steel chassis runs silently without moving parts
  • Intel Core i7-1255U delivers 10 cores and 12 threads up to 4.70 GHz
  • 16 GB DDR5-4800 memory with single SODIMM slot expandable to 32 GB
  • Triple LAN (2× GbE, 1× 2.5 GbE) plus 6 COM ports for industrial connectivity

Technische Daten

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

Can I keep using my RS-232 barcode scanner with the 6 COM ports on this A20?

Yes, the unit provides six COM ports and COM3/COM4 can be configured for RS-232 or RS-485, so your existing scanner will connect directly.

How do I verify the fanless cooling is keeping the i7-1255U within safe temperatures after installation?

Enter the AMI BIOS hardware-monitor screen or use Windows Task Manager to watch the CPU temperature; the aluminum-alloy chassis is designed to dissipate heat without a fan.

Does the box include a power supply for the 9-36 V DC phoenix connector, or must I source one separately?

The 2×2-pin phoenix power connector is supplied on the chassis; a 9-36 V DC power adapter is not included and must be purchased separately.
