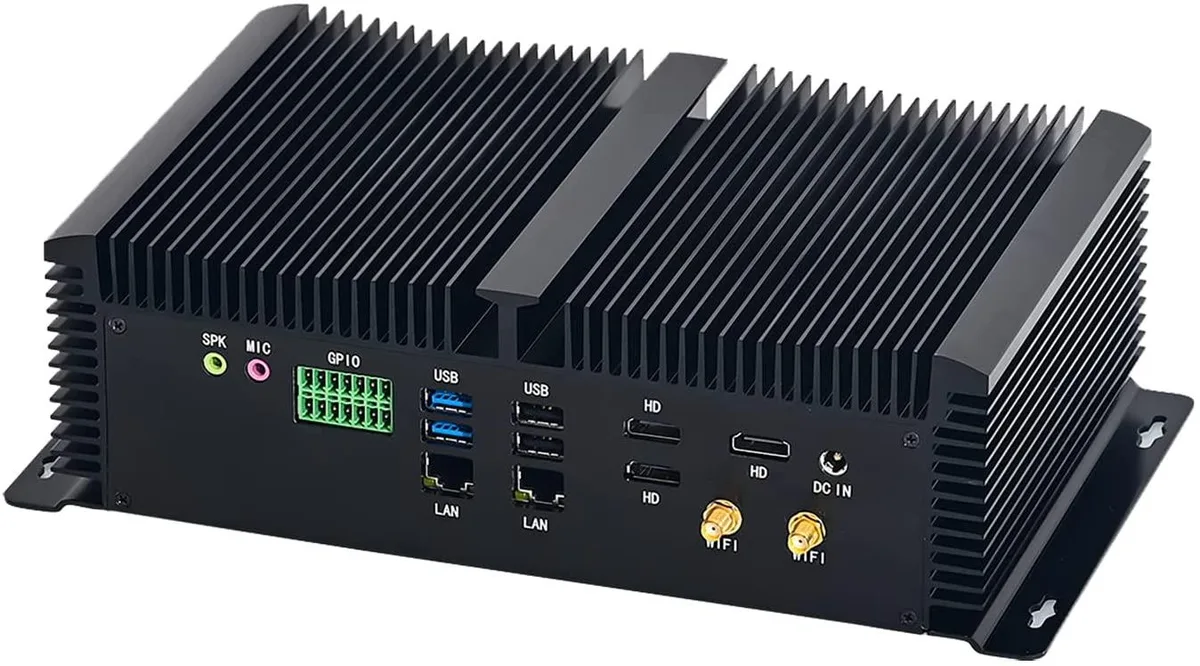

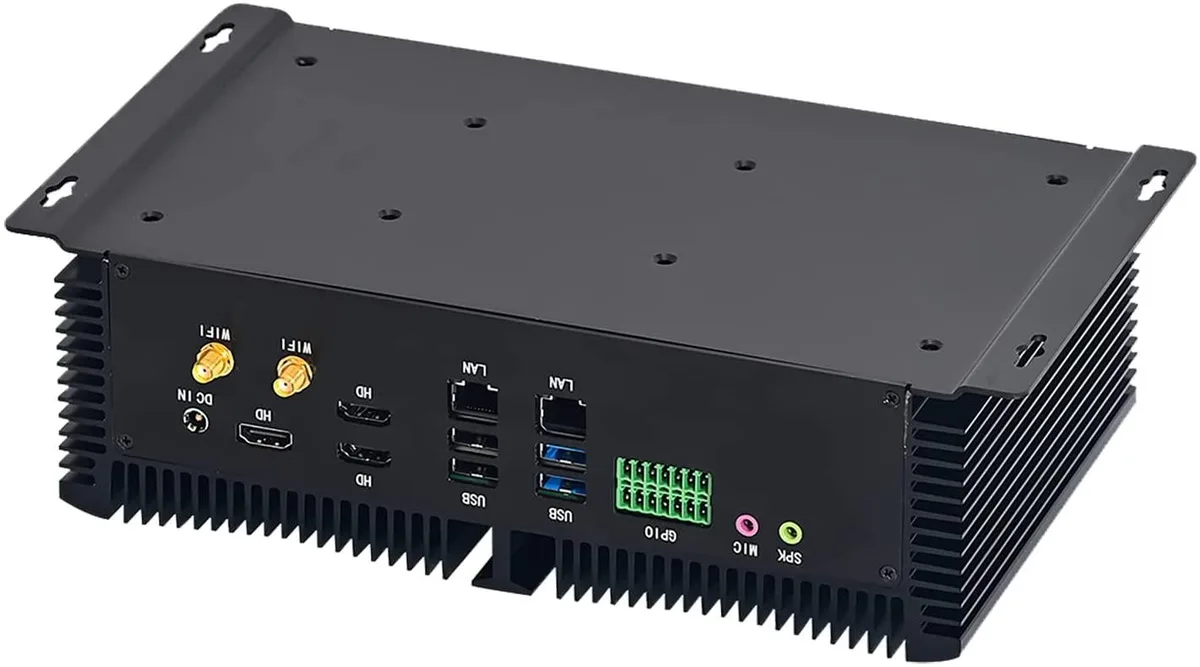

Black aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

Partaker I6 barebone mini PC i7-10750H 32G 512G

SKU CH-Y9JA-B5W1H

Fanless industrial mini PC with an Intel Core i7-10750H, 32 GB DDR4, 512 GB SSD, six COM ports, triple HDMI and dual LAN for 24/7 operation

  • ColorBlack
  • CPU TypeIntel Core i7 10th Gen

Group 32G RAM / 512G SSD

Memory installed 32GB

  • Silent 24/7 operation with fanless cooling
  • Triple display support via three HDMI ports
  • Six COM ports plus GPIO for industrial I/O
  • Intel Core i7-10750H up to 5.00 GHz
  • 32 GB DDR4-2933 and 512 GB SSD storage

Industrial i7-10750H barebone

The Partaker I6 is a fanless industrial mini PC built around an Intel Core i7-10750H processor with 12 MB cache and up to 5.00 GHz turbo. It ships with 32 GB DDR4-2933 memory and a 512 GB SSD, pre-loaded with Windows 11 Pro for immediate deployment in automation, signage or edge-computing roles. The aluminium chassis measures 255 x 55 x 80 mm and operates silently from -10 °C to 60 °C.

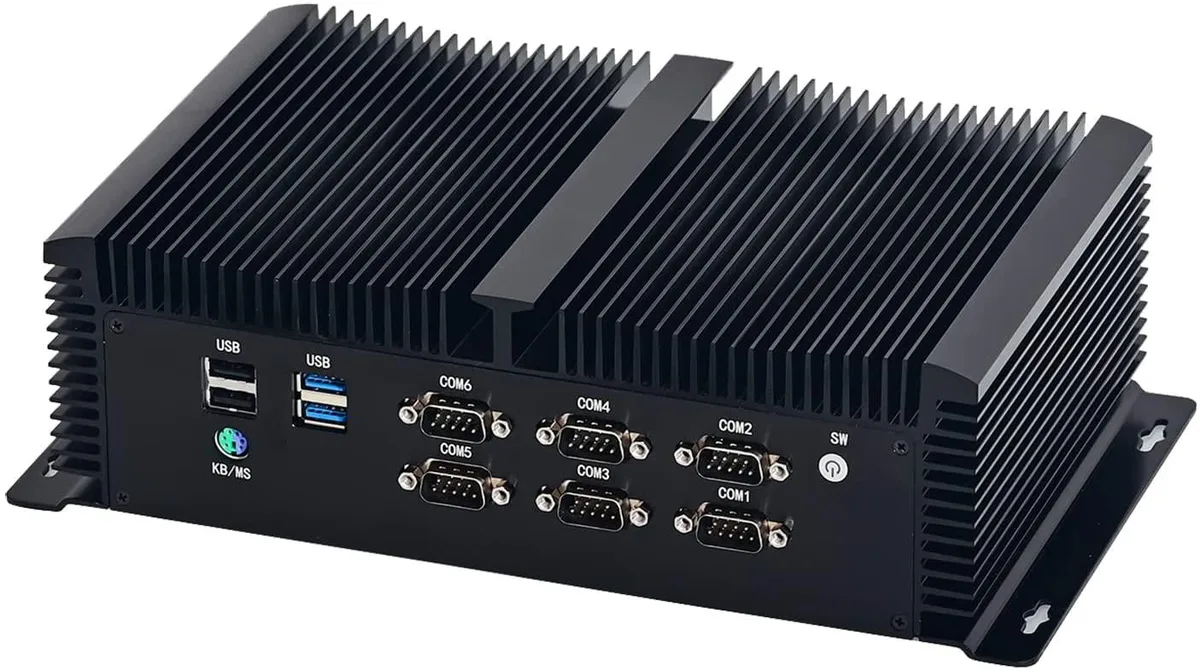

Six COM ports and triple HDMI

The defining specification is the legacy-and-modern I/O mix: six COM ports, a PS/2 connector, four USB 3.0, four USB 2.0, dual Intel LAN (I211 and I219), 8-bit GPIO and three HDMI outputs. This combination lets the unit talk to PLCs, barcode scanners, older peripherals and three independent displays without adapters or expansion cards.

32 GB RAM and triple-drive bays

The single SO-DIMM slot holds up to 64 GB DDR4, giving headroom for heavier workloads or virtual machines. Storage can grow through an mSATA slot, a 2.5-inch SATA bay and an M.2 2280 socket that accepts SATA or NVME drives. The 12 V 10 A supply draws 45 W typical, so the platform handles 24/7 duty cycles while leaving thermal and power margin for additional drives.

Besonderheiten

  • Silent 24/7 operation with fanless cooling
  • Triple display support via three HDMI ports
  • Six COM ports plus GPIO for industrial I/O
  • Intel Core i7-10750H up to 5.00 GHz
  • 32 GB DDR4-2933 and 512 GB SSD storage

Technische Daten

ColorBlack
CPU TypeIntel Core i7 10th Gen

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

What does the i7-10750H's 5.00 GHz turbo mean for sustained industrial workloads?

The processor can reach 5.00 GHz for short bursts, but the fanless chassis and 45 W power limit will throttle clocks during long, heavy tasks to stay within thermal limits.

How do the two Intel LAN controllers (I211 and I219) limit network throughput?

Both controllers are Gigabit Ethernet, so each port caps at 1 Gbps; aggregated throughput depends on your switch and cabling, not the interfaces themselves.

What physical space and mounting options does the 255 x 55 x 80 mm aluminium case need?

The unit fits in a 255 mm wide by 80 mm deep footprint, 55 mm tall, and includes integrated mounting ears for wall or DIN-rail installation.
