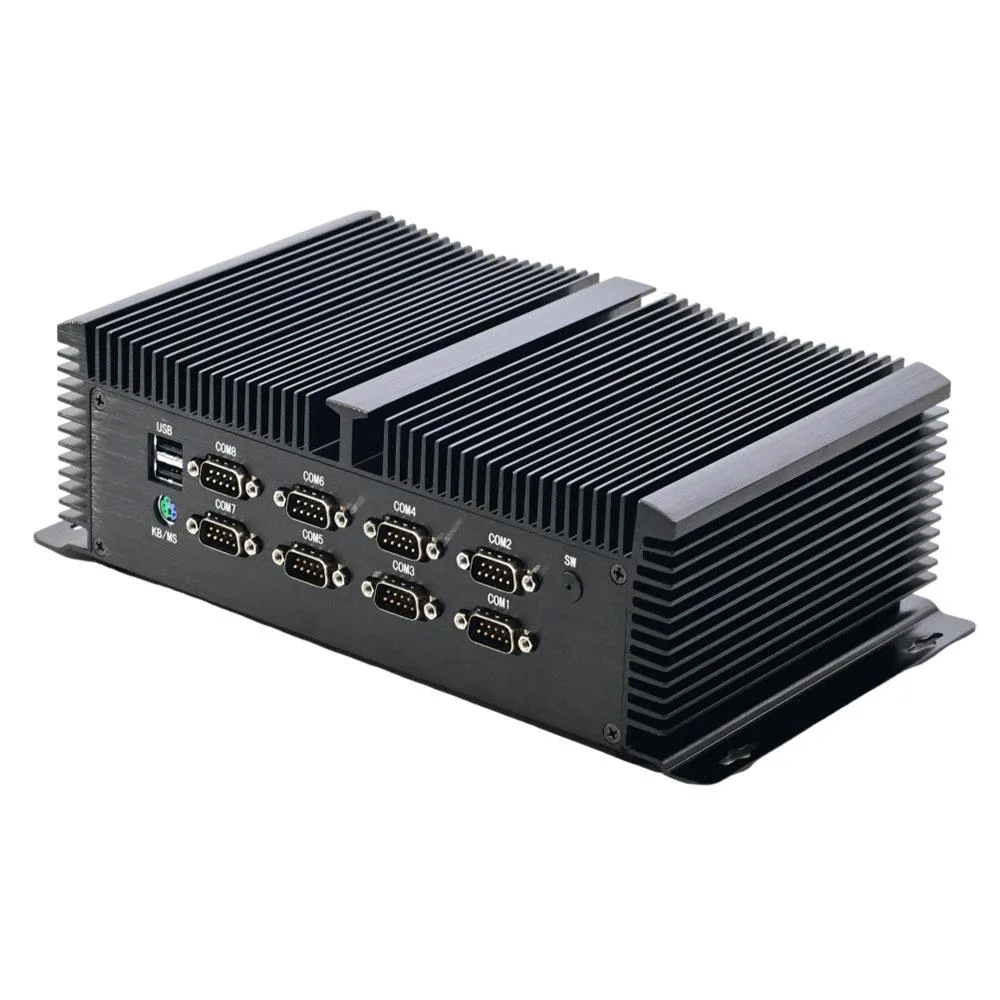

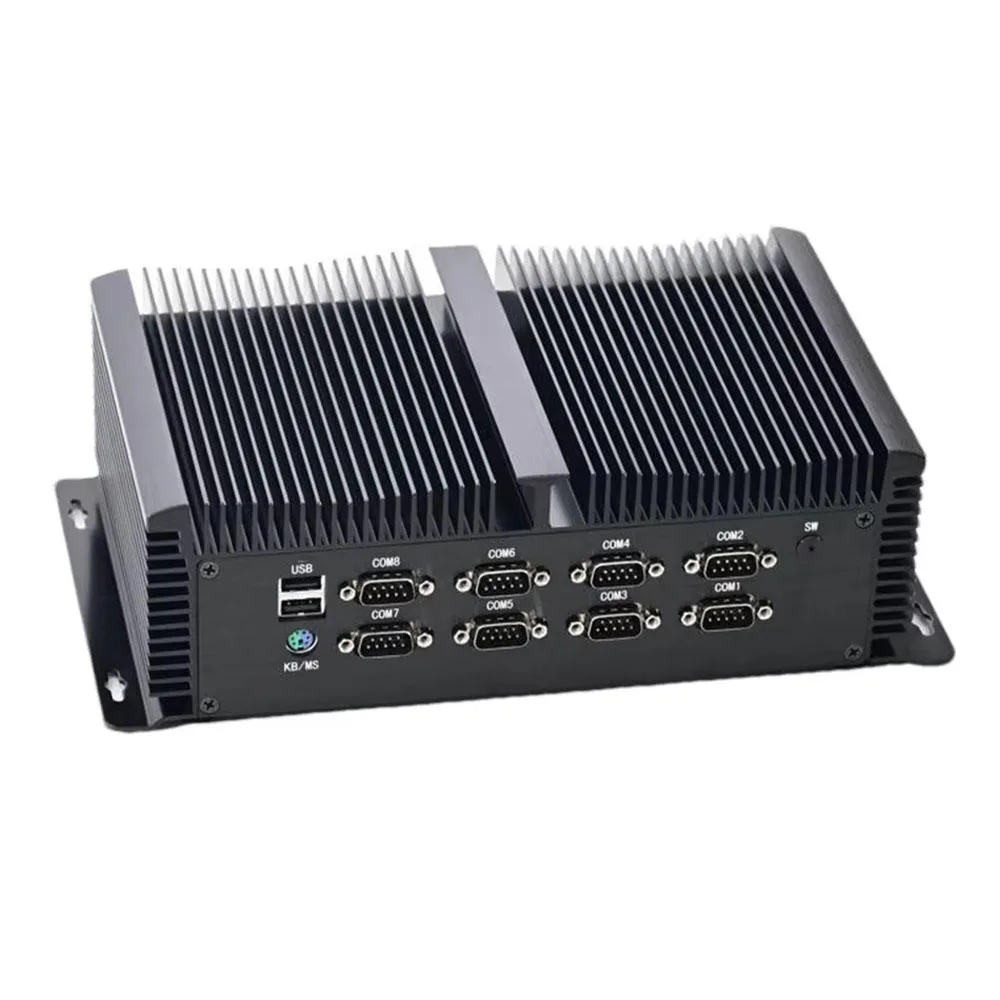

Black aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

Partaker I6 barebone mini PC i7-1255U 32GB DDR5 1TB

SKU CH-17YH-NACAM

Fanless industrial mini PC with Intel Core i7-1255U, 32 GB DDR5, 1 TB storage, triple 2.5G LAN, eight COM ports and triple-display output

  • ColorBlack
  • CPU TypeIntel Core i7 12th Gen

CPU Type Intel Core i7-1255U

Group 32G RAM / 1T SSD

  • Fanless aluminium chassis runs silently in 24/7 industrial use
  • Triple 2.5G Intel i226 LAN ports for high-speed wired networking
  • Eight RS232 COM ports with two switchable to RS485 or RS422 via BIOS
  • Three simultaneous displays via two HDMI 1.4 and one DP 1.4 outputs
  • 32 GB DDR5 memory and 1 TB NVME storage pre-installed

Industrial compact system

The Partaker I6 is a fanless mini PC barebone built around an Intel Core i7-1255U processor with 32GB of DDR5 memory and a 1TB NVME SSD. Its aluminium chassis and extended I/O suit industrial automation, edge computing and digital signage deployments that need serial connectivity and multi-display output.

Sustained load behaviour

The 45W TDP processor maintains clocks without active cooling thanks to the full aluminium shell that acts as a heatsink. Rated for continuous 24/7 operation between -10°C and 60°C, the system handles long-duration workloads such as data logging, gateway tasks or multi-stream video without thermal throttling.

Thermals noise and power

Passive cooling eliminates fan noise entirely while the 19V 5A DC input keeps peak draw modest. Three Intel i226 2.5G LAN ports, eight COM ports with RS485/422 BIOS selection, dual HDMI 2.0 and DP 1.4 run simultaneously within the same thermal envelope, supported by AWAL, WOL and watchdog timers.

Besonderheiten

  • Fanless aluminium chassis runs silently in 24/7 industrial use
  • Triple 2.5G Intel i226 LAN ports for high-speed wired networking
  • Eight RS232 COM ports with two switchable to RS485 or RS422 via BIOS
  • Three simultaneous displays via two HDMI 1.4 and one DP 1.4 outputs
  • 32 GB DDR5 memory and 1 TB NVME storage pre-installed

Technische Daten

ColorBlack
CPU TypeIntel Core i7 12th Gen

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

Does the fanless aluminium chassis keep the i7-1255U cool during continuous 24/7 operation?

The full aluminium alloy shell acts as a heatsink and is rated for non-stop use from -10 °C to 60 °C ambient, with a 45 W TDP limit.

Which display cables and monitors do I need to use the triple-screen outputs?

You must supply monitors with HDMI 1.4 or DisplayPort 1.4 inputs and the matching cables; the unit provides two HDMI and one DP port.

Will my existing SATA SSD or 2.5-inch hard drive fit inside alongside the 1 TB NVMe?

Yes, a 2.5-inch SATA 3.0 drive can be added via the internal SATA slot while the NVMe occupies one M.2 2280 socket.
