Compact grey aluminium mini PC with external USB fan kit

partaker

partaker I8 barebone mini PC i7-12700T 16G 512G

SKU CH-9AXC-ET81H

Fan-cooled industrial mini PC with 12-core i7-12700T, 16 GB DDR4, 512 GB NVMe, 4× RS-485 COM, dual LAN, triple 4K outputs and 12–19 V DC input for 24/7 edge workloads

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I8 H610 I7 12700T FAN 16GB RAM / 512GB SSD

  • 12-core Intel i7-12700T powers heavy edge workloads
  • Triple 4K display outputs drive multi-screen HMI
  • Four RS485 COM ports connect legacy industrial gear
  • Wide 12 V–19 V DC input suits unstable power sites
  • Fanless aluminum chassis runs -20 °C to 60 °C

Industrial barebone with Core i7-12700T

The Partaker I8 is a fanless aluminium mini PC built around a 12-core Intel Core i7-12700T processor. It ships with 16 GB of DDR4 memory and a 512 GB NVMe SSD installed. The platform targets industrial automation, medical imaging and logistics systems that require continuous operation in harsh environments.

Memory ceiling at 64 GB and dual-drive storage

Two SODIMM slots accept DDR4 3200 modules up to 64 GB total, giving headroom for heavy multitasking and edge-computing workloads. Storage can be expanded with one M.2 2280 NVMe drive and one 2.5-inch SATA drive. The single Mini PCIe slot with Nano SIM socket adds 4G or Wi-Fi connectivity but offers no further I/O expansion.

Wide-voltage input and wall-mount chassis

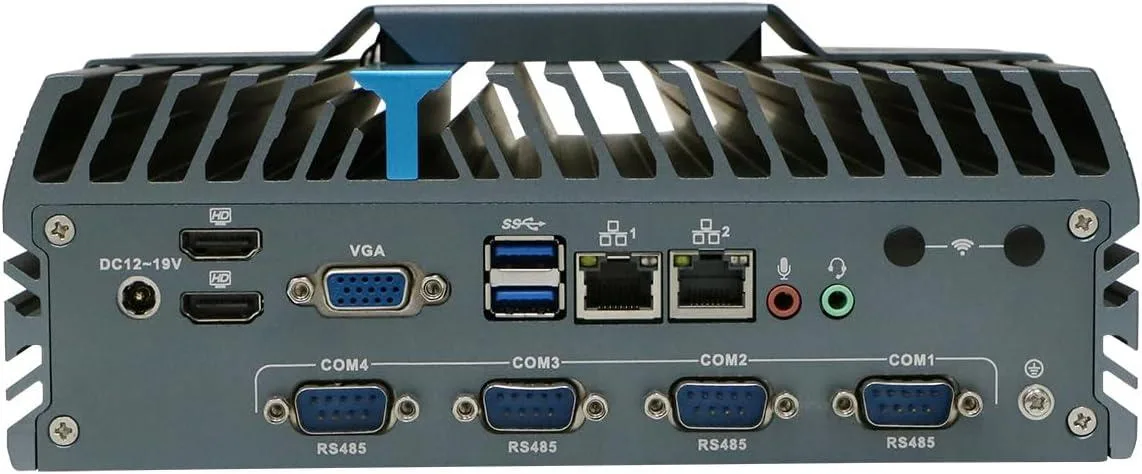

The unit runs on DC 12 V to 19 V from an included 100-240 V AC adapter, simplifying deployment in cabinets with unstable power. Wall-mount ears are fitted by default; desktop brackets are optional. Four RS485 COM ports, dual Gigabit LAN, dual HDMI and VGA support triple independent displays without extra cabling.

Besonderheiten

  • 12-core Intel i7-12700T powers heavy edge workloads
  • Triple 4K display outputs drive multi-screen HMI
  • Four RS485 COM ports connect legacy industrial gear
  • Wide 12 V–19 V DC input suits unstable power sites
  • Fanless aluminum chassis runs -20 °C to 60 °C

Technische Daten

ColorGray
CPU TypeIntel Core i7 12th Gen

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

Will the 2 x HDMI and VGA ports on the i7-12700T unit drive three monitors alongside my older DisplayPort screens?

The mini PC provides two HDMI ports at 4K 60 Hz and one VGA at 1080p 60 Hz for triple independent displays. Older DisplayPort monitors would need active HDMI-to-DisplayPort adapters, which are not included.

How can I confirm the 16 GB DDR4 3200 memory and 512 GB NVMe SSD are recognised after first boot?

Open Windows 11 Pro Task Manager or run `lshw` on Ubuntu; both will show 16 GB DDR4 3200 MT/s in the two SODIMM slots and a 512 GB PCIe 3.0 x4 NVMe drive in the M.2 2280 slot.

Which cables and modules come in the box, and what must I source separately for the 4 x RS485 COM and CAN expansion?

The package contains the I8 chassis, wall-mount brackets, 12 V 10 A power supply, AC cord, USB external fan kit and warranty card. RS485 cables, CAN module and any Wi-Fi/4G Mini PCIe card are sold separately.
