Green PCIe adapter card with two M.2 slots and gold edge connector

RIITOP

RIITOP Dual M.2 NVMe & SATA Adapter Card with Low-Profile Bracket

SKU CH-0AT8-7NMAX

Adds one M.2 NVMe and one M.2 SATA SSD to a PCIe x4 slot with low-profile bracket

  • TypePCI Express Controller Card
  • External USB PortsNo
  • CompatibilityM Key PCIe M.2 NMVe, B Key SATA M.2 NGFF SSD (2230/2242/2260
  • Specifications1.Connects one B key & one M key NGFF SSD at the same time t
  • Features1. One NGFF B Key and one NGFF M key sockets available. 2. 8
  • Dimensions5.52x4.73x0.79 inch.
  • Add one NVMe and one SATA M.2 SSD simultaneously
  • Fits 2230 to 22110 mm drives via 10 screw holes
  • PCIe 3.0 x4 for NVMe and SATA 3.0 for SATA
  • LED shows power and data activity for both drives
  • Low-profile bracket included for slim chassis builds

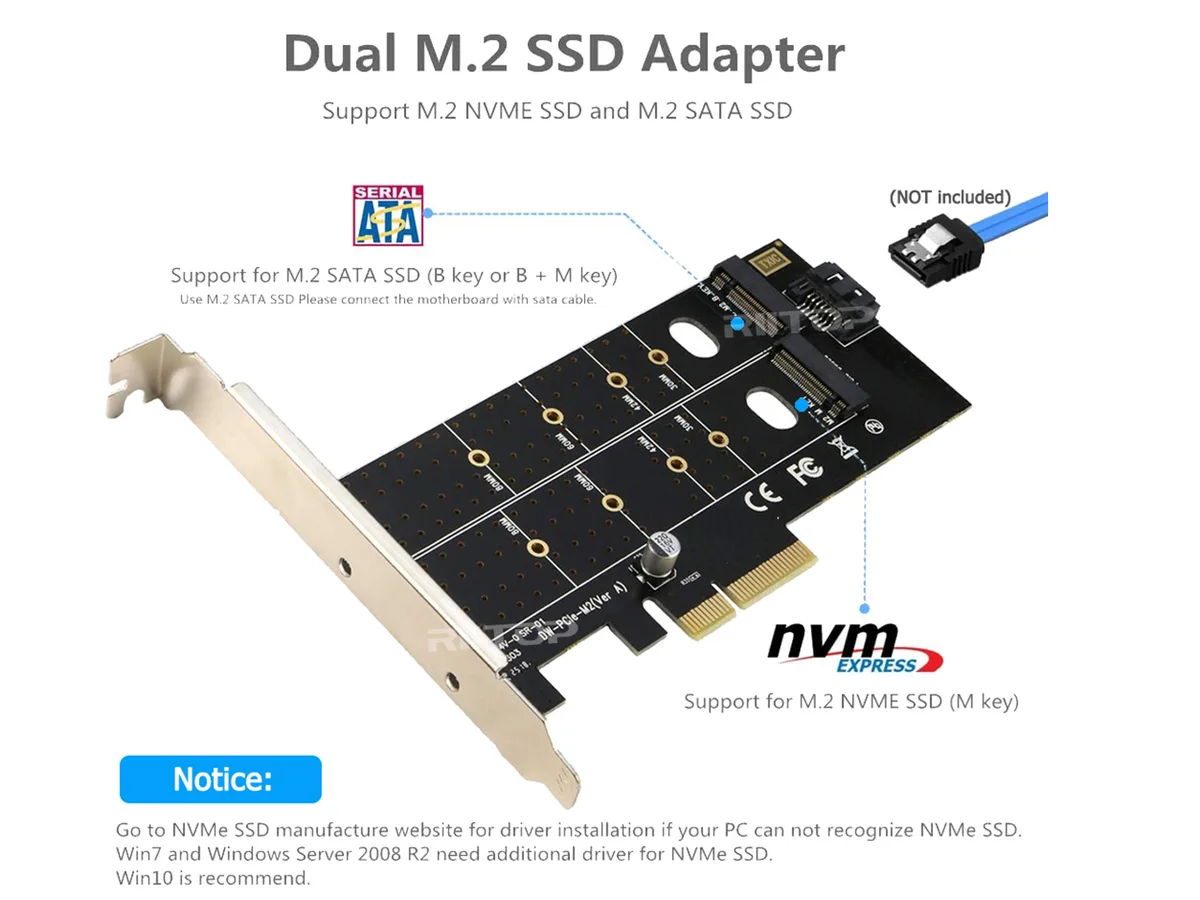

Dual M.2 NVMe and SATA adapter

This RIITOP controller card adds one M.2 NVMe slot and one M.2 SATA slot to a desktop via a PCIe 4x connection. It targets builders whose motherboards lack native M.2 connectors or need an extra drive without occupying a 2.5 inch bay. The card fits PCIe x4, x8 or x16 slots and does not work in x1 slots.

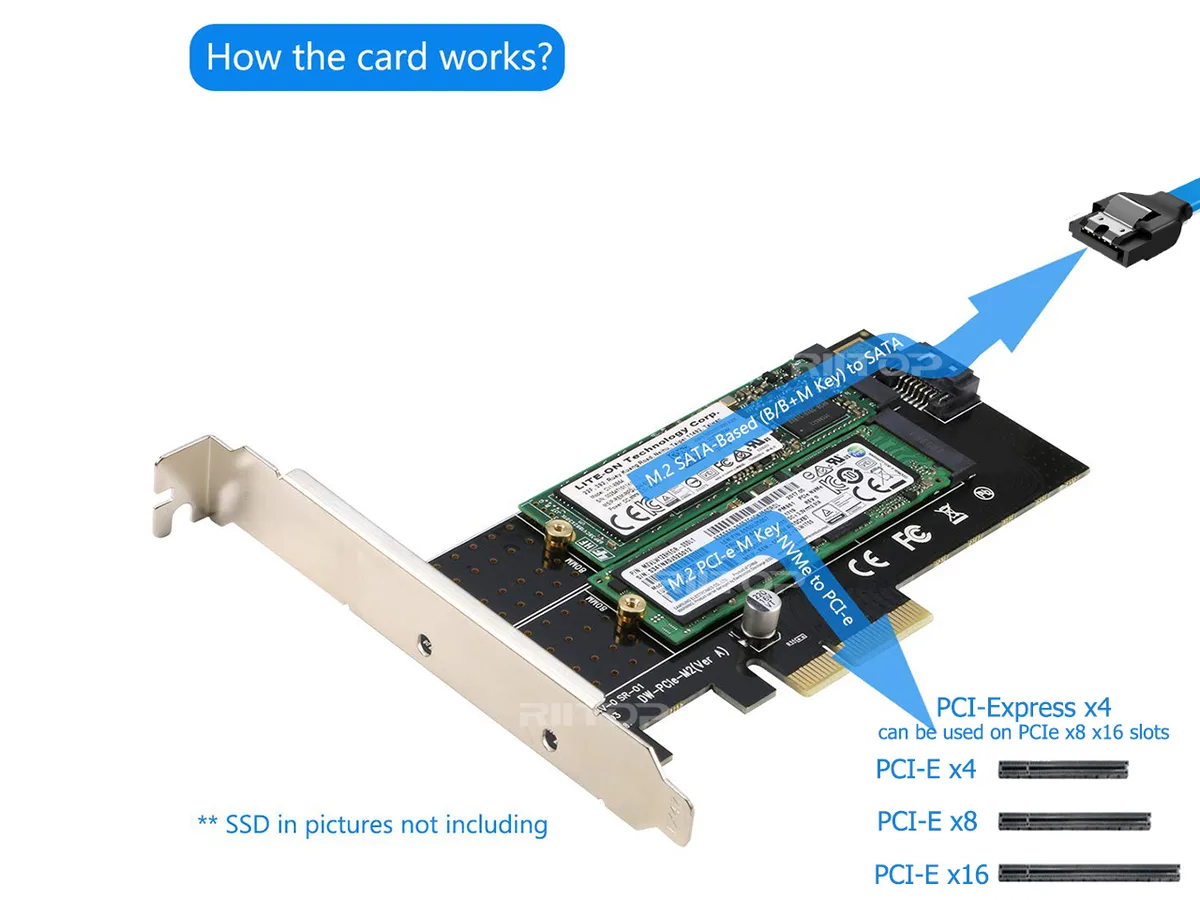

One NVMe plus one SATA drive

The M key socket runs at PCIe 3.0 4x speeds while the B key socket uses the SATA 3.0 interface capped at 6.0 Gb/s. Ten screw holes accept 2230, 2242, 2260, 2280 and 22110 form factors. A SATA cable to the motherboard is mandatory for the SATA drive; the NVMe drive needs no extra cable. The adapter draws all power from the PCIe slot.

Low-profile bracket and screwdriver included

The bundle supplies a low-profile bracket for slim chassis, a screwdriver and mounting screws. An on-board LED shows power and data activity. Vented gold-finish PCB helps dissipate heat from both SSDs. No driver is required for the adapter itself, though the NVMe SSD vendor may supply its own driver.

Besonderheiten

  • Add one NVMe and one SATA M.2 SSD simultaneously
  • Fits 2230 to 22110 mm drives via 10 screw holes
  • PCIe 3.0 x4 for NVMe and SATA 3.0 for SATA
  • LED shows power and data activity for both drives
  • Low-profile bracket included for slim chassis builds

Technische Daten

BrandRIITOP
Model2 Ports
TypePCI Express Controller Card
External USB PortsNo
CompatibilityM Key PCIe M.2 NMVe, B Key SATA M.2 NGFF SSD (2230/2242/2260/2280/22110mm)
Specifications1.Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard. 2.Compliant with PCI Express M.2 specification 1.0. 3.Compliant with SATA 3.0 specification for B key. 4.Compliant with PCI-E 4X 3.0 specification for M key.
Features1. One NGFF B Key and one NGFF M key sockets available. 2. 8 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards. 3.Easy installation & no driver required. 4.No additional power required.
Dimensions5.52x4.73x0.79 inch.
Weight90g / 0.2 lb.
Package Contents1x Dual M.2 PCIe & SATA Adapter Card. 1x Low Profile Bracket. 1x Screwdriver. Screws.

Fragen zu diesem Artikel

Will the RIITOP adapter fit in my older PCIe 3.0 x16 slot?

The card is compliant with PCI-E 4X 3.0 specification and works in x4, x8 or x16 slots; it does not support x1 slots.

How do I know the NVMe and SATA SSDs are active after install?

An on-board LED indicator shows power and data-transfer status for both the M-key NVMe and B-key SATA sockets.

Does the box include the SATA cable I need for the B-key drive?

The package contains the adapter card, a low-profile bracket, a screwdriver and mounting screws; a 7-pin SATA cable must be purchased separately.
