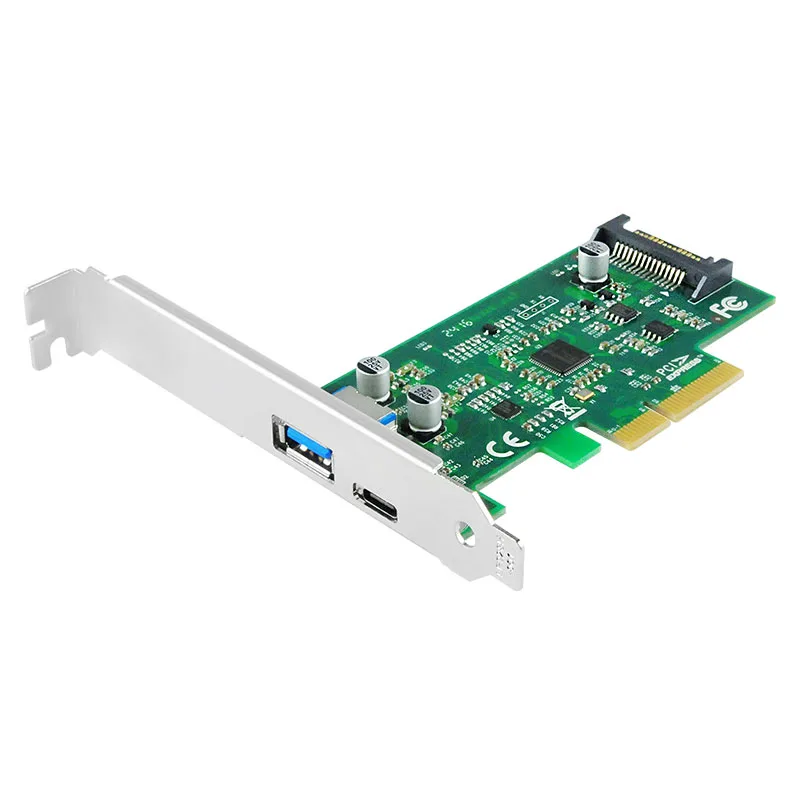

Green PCB add-in card with one USB-A and one USB-C port on a metal bracket, SATA power connector on board

Shenzhen Lianrui Information Technology

Shenzhen Lianrui Information Technology LRSU9A42-AC PCIe 3.0 x4 USB 3.1 Type-A + Type-C expansion card

SKU CH-2PT8-5DZPX MPN LRSU9A42-AC

Adds one USB 3.1 Type-A and one Type-C port via PCIe 3.0 x4 with ASM1142 and ASM1543 controllers for up to 10 Gbps throughput

  • TypePCI Express to USB Card
  • External USB Ports2 Port
  • Internal USB Ports2x USB Ports
  • External Ports2 port USB 3.0
  • Internal Ports1X USB-A + 1 XUSB-C
  • StandardUSB 3.1
  • Adds one USB 3.1 Type-A and one Type-C port at up to 10 Gbps
  • PCIe 3.0 x4 host interface fits x4, x8 or x16 slots
  • ASM1142 and ASM1543 controllers deliver two independent 10 Gbps channels
  • Backward compatible with USB 2.0 devices at 480 Mbps
  • Each port supplies up to 900 mA at 5 V from SATA power

PCIe 3.0 x4 USB 3.1 Adapter Card

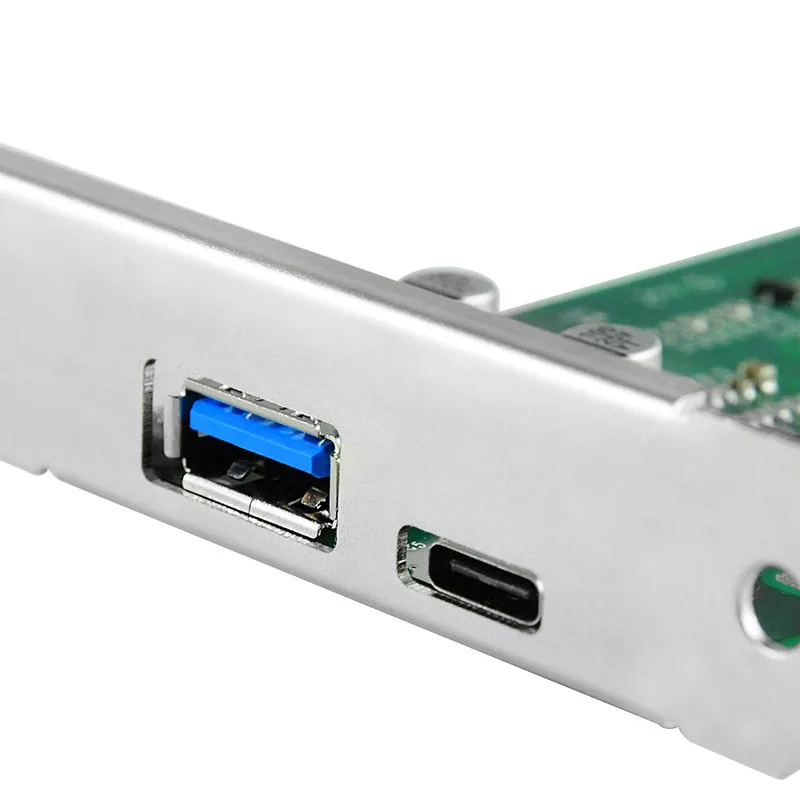

This expansion card adds one USB 3.1 Type-A and one USB 3.1 Type-C port to a desktop PC via a PCIe 3.0 x4 slot. It uses ASM1142 and ASM1543 controllers to deliver up to 10 Gbps bandwidth. The bracket includes two external ports and the board provides two internal headers. A 15-pin SATA power connection is required for operation.

Builders Adding Front-Panel USB-C

The card suits system builders who need modern Type-C and Type-A ports on a case front panel or rear bracket. It fits PCIe x4, x8 or x16 slots and supports Windows 98SE through Vista. Buyers running Windows 7 or later should verify driver availability before purchase. Systems without a spare SATA power connector cannot supply the required 5 V 900 mA per port.

ASM1142 Controller With 10 Gbps Peak

The ASM1142 host controller bridges PCIe 3.0 to two USB 3.1 Gen 2 lanes for a combined 10 Gbps throughput. Each port supplies up to 900 mA at 5 V for bus-powered devices. The x4 link is backward compatible with x8 and x16 slots. Hot-plug and wake-on-USB keyboard or mouse functions are supported.

Besonderheiten

  • Adds one USB 3.1 Type-A and one Type-C port at up to 10 Gbps
  • PCIe 3.0 x4 host interface fits x4, x8 or x16 slots
  • ASM1142 and ASM1543 controllers deliver two independent 10 Gbps channels
  • Backward compatible with USB 2.0 devices at 480 Mbps
  • Each port supplies up to 900 mA at 5 V from SATA power

Technische Daten

BrandLinkreal
SeriesPCI Express USB Controller Card
Model1 x USB-A + 1 x USB-C
TypePCI Express to USB Card
External USB Ports2 Port
Internal USB Ports2x USB Ports
External Ports2 port USB 3.0
Internal Ports1X USB-A + 1 XUSB-C
StandardUSB 3.1
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 98SE/ME/2000/XP/Vista
Dimensions4.17" x2.20" x0.24"
Weight0.35lb

Fragen zu diesem Artikel

Does the LRSU9A42-AC need a SATA power cable from my PSU to work?

Yes, the card requires a 15-pin SATA power connection to supply up to 900mA per USB port.

Will USB 2.0 devices still function when plugged into the Type-A or Type-C ports?

The ASM1142 controller is backward compatible with USB 2.0, so older peripherals operate at 480Mbps.

How can I verify the card is delivering 10Gbps bandwidth after installation?

Check Device Manager for an ASM1142 xHCI controller on a PCIe 3.0 x4 link and test with a USB 3.1 Gen2 drive.
