Sony

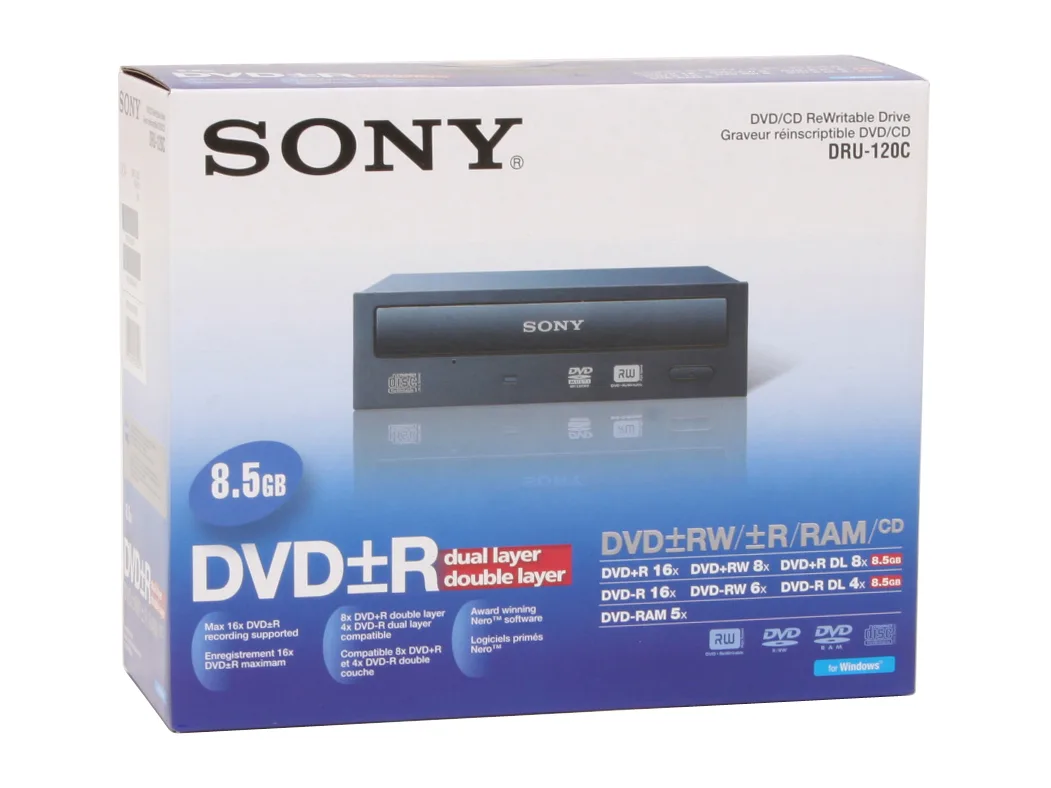

Sony DRU120C 16X DVD burner 5.25" IDE black tray
A 5.25" IDE DVD burner with 16X DVD±R write speed, 48X CD-R write speed and a black tray
- TypeDVD Burner
- Cache2MB
- DVD+R16X
- DVD+RW8X
- DVD-R16X
- DVD-RW6X
- Writes DVD±R at 16X for fast disc creation
- Reads DVD-ROM at 16X and CD-ROM at 40X for quick data access
- Supports DVD-RAM at 5X for reliable random-access storage
- 2 MB cache smooths data flow during burns
- Standard 5.25" tray-load IDE drive fits desktop bays
5.25" IDE DVD burner for legacy systems
The Sony DRU120C is an internal optical drive that fits a standard 5.25 inch bay and connects through an IDE interface. It writes DVD+R and DVD-R at 16X, DVD+RW at 8X and DVD-RW at 6X. Dual-layer media are supported at 8X for DVD+R DL and 4X for DVD-R DL. CD-R and CD-RW reach 48X and 24X respectively.
Thermal behaviour and power draw
Optical drives of this class run from the system power supply and generate modest heat during sustained write sessions. The tray-load mechanism operates quietly at read speeds of 16X for DVD-ROM and 40X for CD-ROM. No active cooling is required beyond normal case airflow.

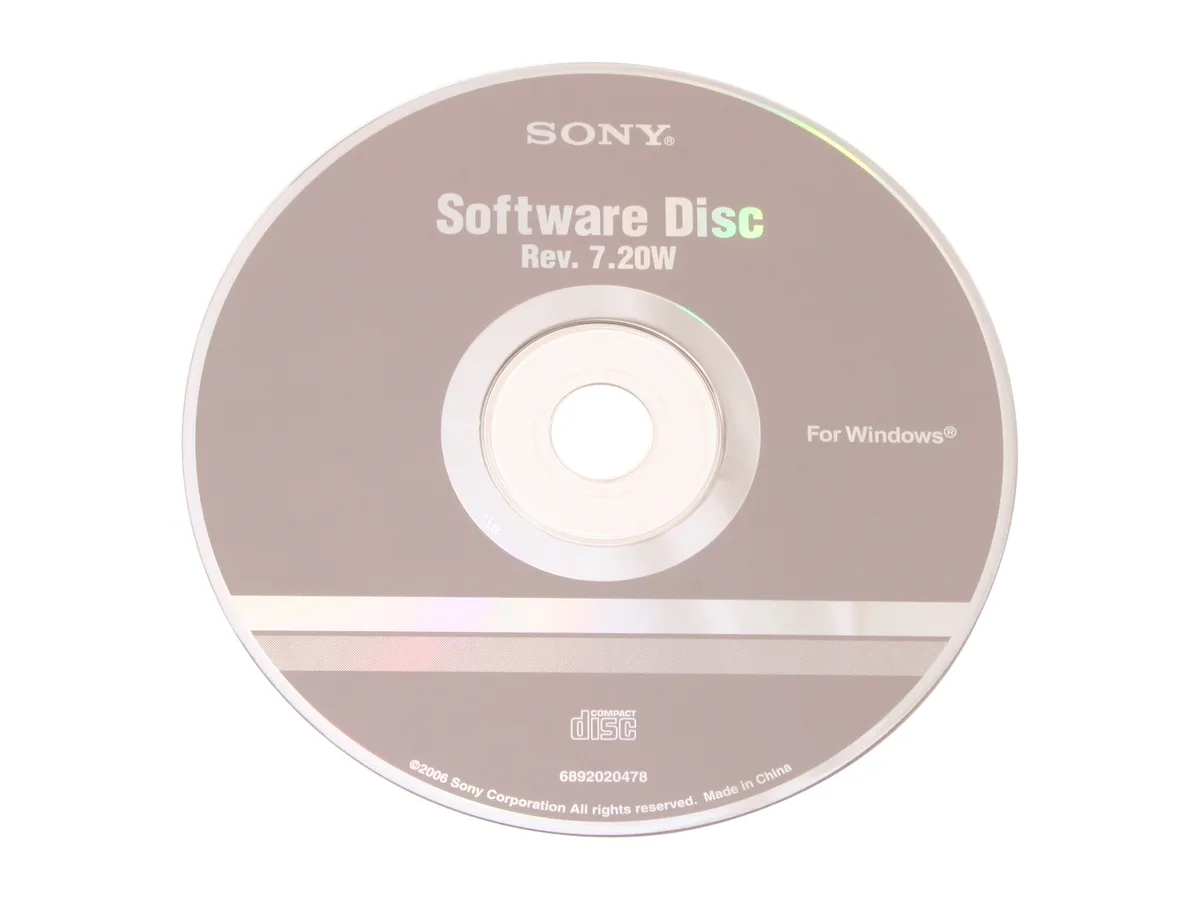

Bundled software disc
A software disc is included in the package alongside the drive itself. The disc provides burning and authoring applications that enable disc creation immediately after installation. No additional cables, mounting screws or faceplates are supplied.
Besonderheiten
- Writes DVD±R at 16X for fast disc creation
- Reads DVD-ROM at 16X and CD-ROM at 40X for quick data access
- Supports DVD-RAM at 5X for reliable random-access storage
- 2 MB cache smooths data flow during burns
- Standard 5.25" tray-load IDE drive fits desktop bays
Technische Daten
| Brand | SONY |
|---|---|
| Model | DRU120C |
| Type | DVD Burner |
| Cache | 2MB |
| DVD+R | 16X |
| DVD+RW | 8X |
| DVD-R | 16X |
| DVD-RW | 6X |
| CD-R | 48X |
| CD-RW | 24X |
| DVD+R DL | 8X |
| DVD-R DL | 4X |
| DVD-RAM | 5X |
| DVD-ROM | 16X |
| CD-ROM | 40X |
| Form Factor | 5.25" |
| Panel Color | Black |
| Load Type | Tray |
| Interface | IDE |
| Package Contents | DRU120C Software Disc |
| Versandgewicht | 1.02 kg |
| Paketgröße | 254 × 203 × 102 mm |
Fragen zu diesem Artikel
How do I install the DRU120C into a 5.25" bay and connect the IDE cable without bending pins?
Slide the black tray unit into a free 5.25" bay, secure it with four screws, attach the 40-pin IDE ribbon aligning the red stripe to pin 1 on both drive and motherboard, then connect a Molex power plug.
Which moving parts of the DRU120C typically wear out first and need replacement?
The tray-loading mechanism and the laser pickup assembly are the main mechanical items that degrade after heavy use; the 2 MB cache and IDE interface are solid-state and do not wear.
At what sustained write speed does the DRU120C hit its buffer limit during long DVD+R sessions?
The 2 MB buffer can be exhausted at the maximum 16X DVD+R rate if the host system pauses data delivery, causing the drive to drop to a lower CLV zone until the buffer refills.
