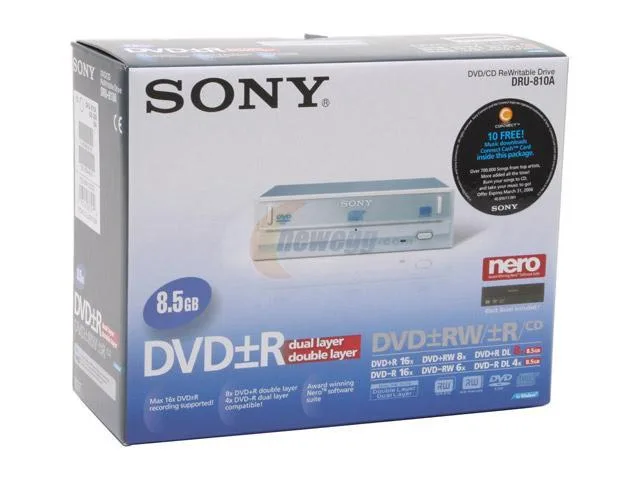

Sony DRU810A 16X DVD burner 5.25" E-IDE/ATAPI white tray
A 5.25" E-IDE/ATAPI DVD burner writing DVD±R at 16X and CD-R at 48X with 2MB cache and a white tray
- TypeDVD Burner
- DVD-ROM Access Time130ms
- CD-ROM Access Time135ms
- Cache2MB
- DVD+R16X
- DVD+RW8X
- Burns a full DVD±R in about 6 minutes at 16X max speed
- Reads DVD-ROM and CD-ROM at 16X and 48X for quick data access
- 2 MB cache buffers data to help prevent write errors during recording
- Fits standard 5.25" bays with a white tray and replaceable black front panel
- Connects via E-IDE/ATAPI for broad legacy system compatibility
Purpose and audience
The Sony DRU810A is a 5.25-inch internal DVD burner with an E-IDE/ATAPI interface. It writes DVD±R media at 16X and CD-R at 48X, suiting builders adding optical storage to legacy systems or users archiving data on physical discs. A replaceable black front panel is included alongside the white tray.
Thermals noise and power
The drive operates from standard internal power and the E-IDE bus without extra connectors. A 2MB buffer helps sustain write speeds of 16X for DVD+R and 8X for DVD+RW, keeping the mechanism running steadily during burns. Access times are 130ms for DVD-ROM and 135ms for CD-ROM reads.
Build integration
The unit fits a standard 5.25-inch bay and connects via a single E-IDE/ATAPI cable. Minimum requirements call for a Pentium III 800 MHz or equivalent CPU with 128MB RAM, though a Pentium IV 1.6GHz and 256MB are recommended for video authoring. Windows 2000 or XP is supported, and 10GB of free hard-disk space is needed for temporary files.
Besonderheiten
- Burns a full DVD±R in about 6 minutes at 16X max speed
- Reads DVD-ROM and CD-ROM at 16X and 48X for quick data access
- 2 MB cache buffers data to help prevent write errors during recording
- Fits standard 5.25" bays with a white tray and replaceable black front panel
- Connects via E-IDE/ATAPI for broad legacy system compatibility
Technische Daten
| Brand | SONY |
|---|---|
| Model | DRU810A |
| Type | DVD Burner |
| DVD-ROM Access Time | 130ms |
| CD-ROM Access Time | 135ms |
| Cache | 2MB |
| DVD+R | 16X |
| DVD+RW | 8X |
| DVD-R | 16X |
| DVD-RW | 6X |
| CD-R | 48X |
| CD-RW | 32X |
| DVD+R DL | 8X |
| DVD-R DL | 4X |
| DVD-ROM | 16X |
| CD-ROM | 48X |
| Form Factor | 5.25" |
| Panel Color | White |
| Load Type | Tray |
| Interface | E-IDE/ATAPI |
| Operating Systems Supported | Windows 2000 or Windows XP Home or Professional |
| Features | Burns DVD±R discs at 16X max, capable of burning a full disc in about 6 minutes Maximum flexibility and compatibility – Choose the optimal DVD recordable media for your project without sacrifi cing compatibility with your playback hardware |
| System Requirements | Pentium III 800 MHz or faster (or equivalent) CPU minimum. Pentium IV 1.6GHz or faster (or equivalent) CPU is recommended for real time video authoring/editing 128 MB of RAM (256 MB or more for Windows XP Systems) 10GB of hard disk space |
| Package Contents | Internal DRU-810A Double/Dual Layer DVD Drive Replaceable Black Front Panel |
| Versandgewicht | 0.91 kg |
| Paketgröße | 178 × 146 × 41 mm |
Fragen zu diesem Artikel
How do I install the DRU810A into a 5.25" bay and connect the E-IDE/ATAPI cable, and what is the step people often get wrong?
Slide the drive into the 5.25" bay, secure it with four screws, attach the 40-pin E-IDE/ATAPI ribbon cable and a 4-pin Molex power connector, then set the master/slave jumper on the rear — the step most often missed is verifying that jumper position before closing the case.
What maintenance or replacement will the DRU810A need later?
The tray-loading mechanism and laser pickup are the only moving parts that wear; clean the lens with a dry optical-disc cleaner if read errors appear, and replace the drive only when burns consistently fail verification across multiple media brands.
What limit appears first during sustained burning on the DRU810A?
The 2 MB buffer is the first bottleneck; if the host system cannot feed data fast enough during a 16X DVD±R write, the drive will invoke buffer-underrun protection and extend the burn time beyond the typical six-minute full-disc cycle.
