STARTECH
STARTECH TB31PCIEX16 Thunderbolt 3 PCIe x16 expansion card
Adds an external PCI Express 3.0 x16 slot and DisplayPort to a Thunderbolt 3 laptop at up to 40 Gbps
- TypeThunderbolt 3 to PCIe x16 and DisplayPort
- Thunderbolt 3Yes
- External Ports2 x Thunderbolt 3 USB-C (24-pin) Female 1 x DisplayPort (20
- Internal Ports1 x PCI Express x16 Female
- Data Transfer RateUp to 40 Gbps (Thunderbolt 3)
- Operating Systems SupportedWindows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7
- Add an external PCIe 3.0 x16 slot to your Thunderbolt 3 laptop
- Connect a 4K DisplayPort monitor via the Thunderbolt 3 link
- Up to 40 Gbps bandwidth for high-speed PCIe cards
- Quiet 92 mm fan rated at 24.55 dB and 14.06 CFM airflow
- Universal power adapter with NA/JP, UK, EU, ANZ plugs included

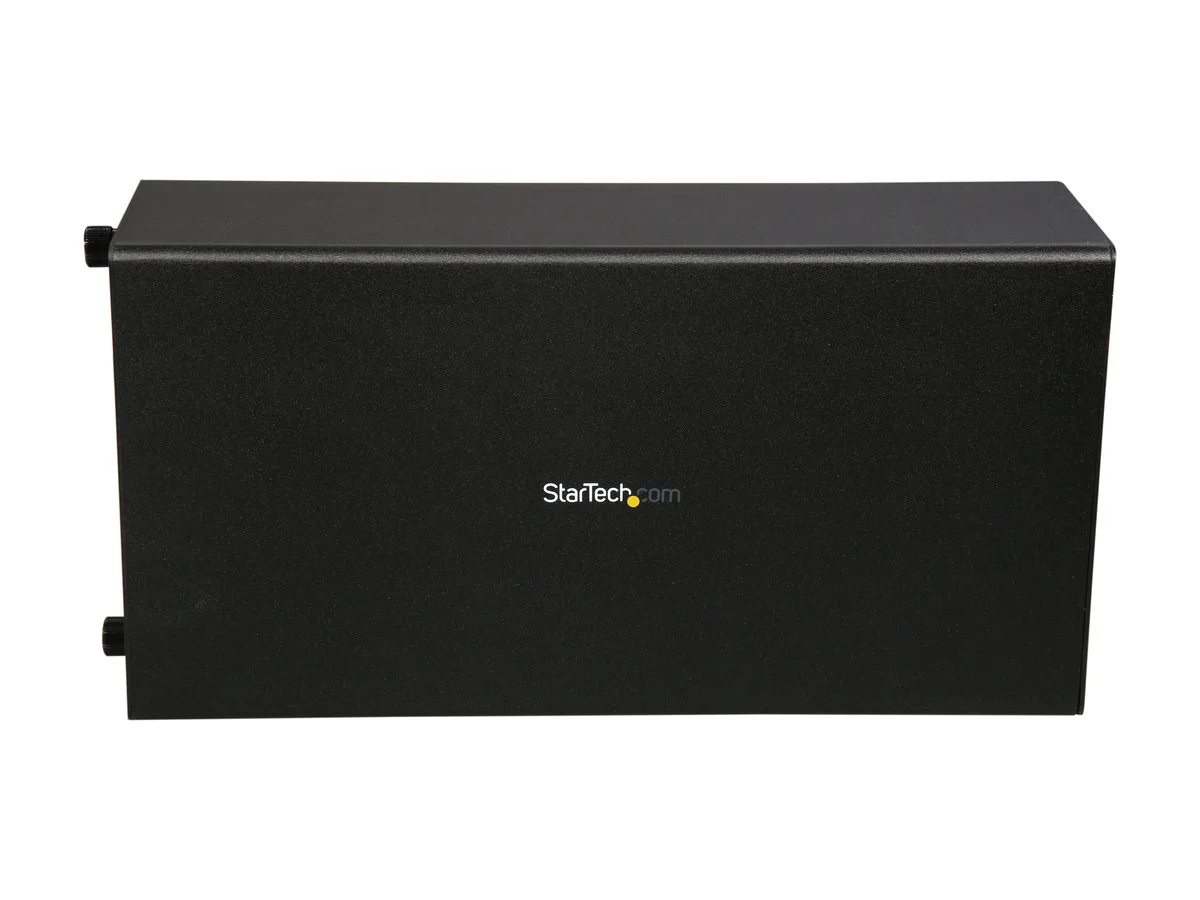

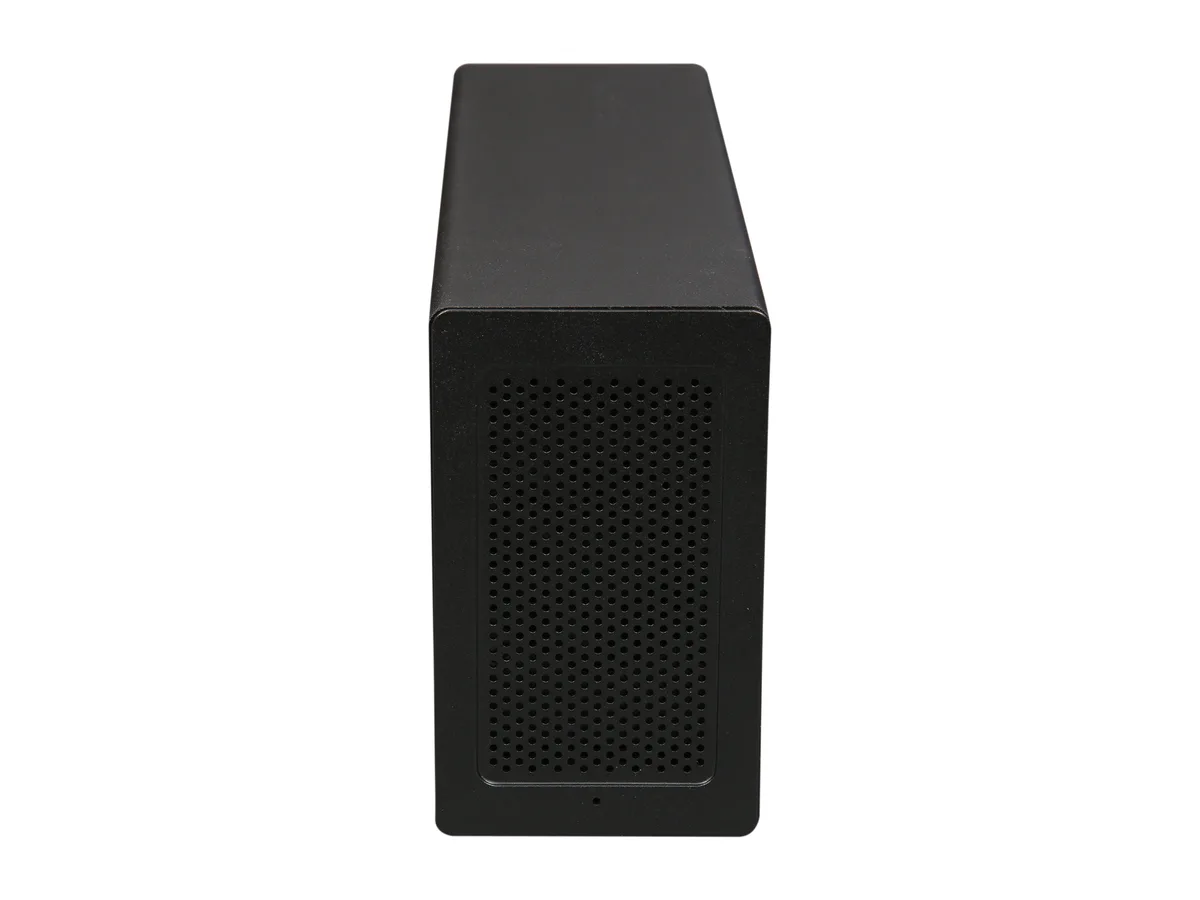

Thunderbolt 3 PCIe x16 enclosure
The StarTech TB31PCIEX16 is a Thunderbolt 3 expansion chassis that provides an external PCI Express 3.0 x16 slot and a DisplayPort connection. It connects to a host computer through two Thunderbolt 3 USB-C ports and supports up to 40 Gbps of bandwidth. The aluminium enclosure includes a 92 mm sleeve-bearing fan rated at 14.06 CFM and 24.55 dB, plus a universal power adapter and a Thunderbolt 3 cable in the box.
Suits laptops and compact PCs needing one
This enclosure serves users who want to add a single PCIe x16 card such as a capture, networking or storage controller to a Thunderbolt 3 laptop or small-form-factor system. It also adds a 4K DisplayPort output for an external monitor. Builders who need multiple PCIe slots, a larger card form factor, or an interface other than Thunderbolt 3 should consider a different chassis or an internal motherboard solution.
Deciding spec: Thunderbolt 3 40 Gbps link
The Thunderbolt 3 interface caps sustained PCIe throughput at 40 Gbps, which determines whether a given x16 card can run at its intended performance. Cards that require more bandwidth than the link provides will be limited by this connection.
Besonderheiten
- Add an external PCIe 3.0 x16 slot to your Thunderbolt 3 laptop
- Connect a 4K DisplayPort monitor via the Thunderbolt 3 link
- Up to 40 Gbps bandwidth for high-speed PCIe cards
- Quiet 92 mm fan rated at 24.55 dB and 14.06 CFM airflow
- Universal power adapter with NA/JP, UK, EU, ANZ plugs included
Technische Daten
| Brand | StarTech.com |
|---|---|
| Model | TB31PCIEX16 |
| Type | Thunderbolt 3 to PCIe x16 and DisplayPort |
| Thunderbolt 3 | Yes |

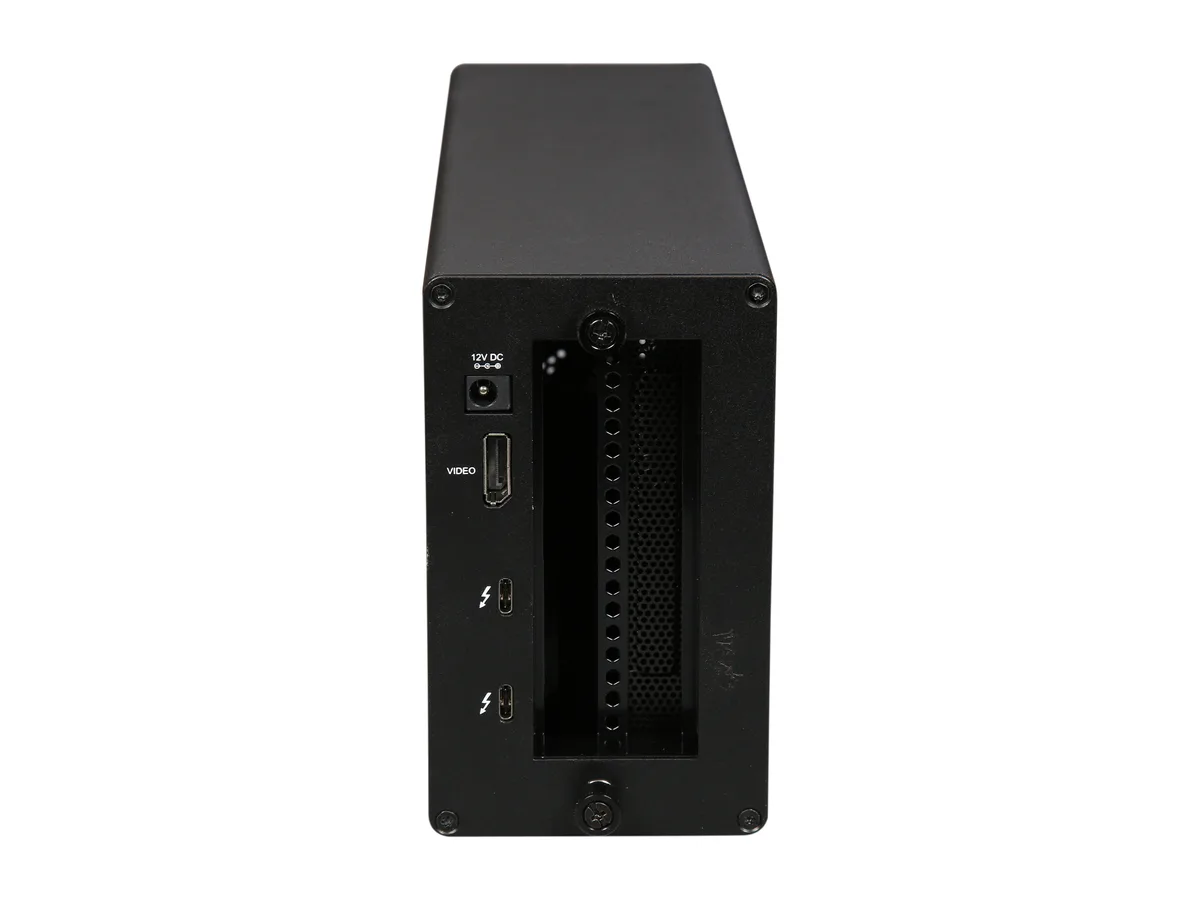

| External Ports | 2 x Thunderbolt 3 USB-C (24-pin) Female 1 x DisplayPort (20 pin) Female |
| Internal Ports | 1 x PCI Express x16 Female |
| Data Transfer Rate | Up to 40 Gbps (Thunderbolt 3) |
| Operating Systems Supported | Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit) macOS 10.12 (Sierra) |
| Specifications | Fan(s): 1 x 92 mm fan Air Flow Rate : 14.06 CFM Noise Level: 24.55 dB Fan Bearing Type: Sleeve Bearing Chipset ID: Intel - Alpine Ridge DSL6540 LED Indicators: 1 x Power(Blue) Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Power Consumption (In Watts): 65W Power Source: AC Adapter Included Note: This expansion chassis does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, such as MacBook Pro. When the dock is connected to your host laptop, a charging ic |
| Features | Increased productivity with Thunderbolt 3 and up to 40Gbps bandwidth — twice the speed of Thunderbolt 2 (20Gbps) and eight times faster than USB 3.0 (5Gbps) Supports one 4K DisplayPort monitor, and a second extended monitor display through the Thunderbolt 3 (USB-C) port Daisy chain up to six Thunderbolt 3 devices Supports 5K Thunderbolt displays Supports half-length and dual-slot PCIe card standards at all heights, with standard profile slot brackets Provides a x16 4 lane PCIe 3.0 slot or interface Durable aluminum construction Works on Mac and Windows computers Internal 60 cm coolin |
| Dimensions | 3.20" x 2.20" x 10.70" (L x W x H) |
| Weight | 3.30 lbs. |

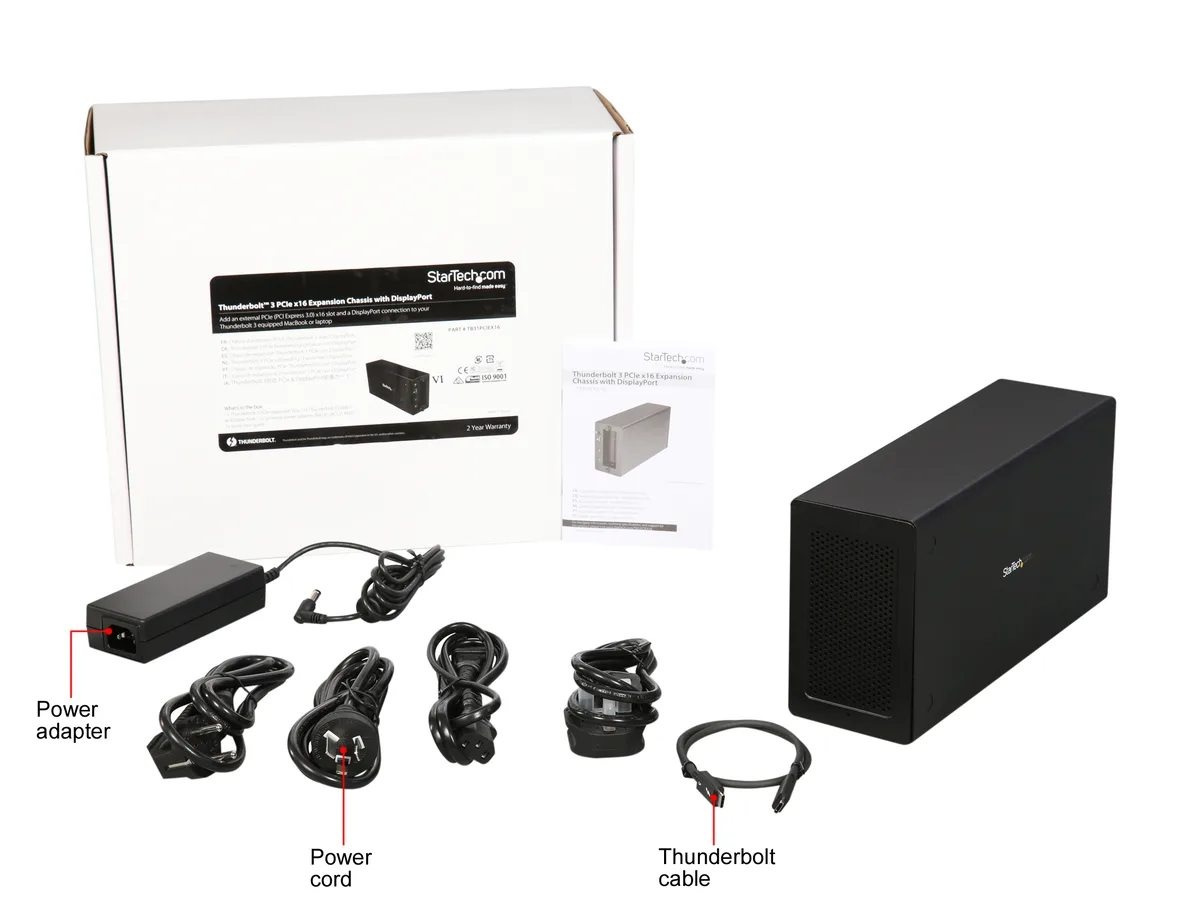

| Package Contents | 1 x Thunderbolt 3 PCIe expansion box 1 x Thunderbolt 3 cable 4 x rubber feet 1 x universal power adapter (NA/JP, UK, EU, ANZ) 1 x quick-start guide |
| Versandgewicht | 3.13 kg |
| Paketgröße | 351 × 297 × 145 mm |
Fragen zu diesem Artikel
How do I decide whether the single x16 slot or the two Thunderbolt 3 ports suit my workflow?
The enclosure provides one PCI Express 3.0 x16 slot for a full-length card and two Thunderbolt 3 ports — one connects to the host, the other can daisy-chain another Thunderbolt device.
What does the 40 Gbps Thunderbolt 3 bandwidth deliver when a GPU or capture card is installed?
The Alpine Ridge DSL6540 controller links the x16 slot to the host at up to 40 Gbps, so high-throughput cards such as GPUs or 10 GbE adapters run near their PCIe 3.0 x4 potential.
How does the Thunderbolt 3 interface limit the PCIe lane width and display output?
Thunderbolt 3 caps the link to four PCIe 3.0 lanes and carries one 4K DisplayPort stream, so the x16 slot operates electrically as x4 while still accepting x16 cards.
