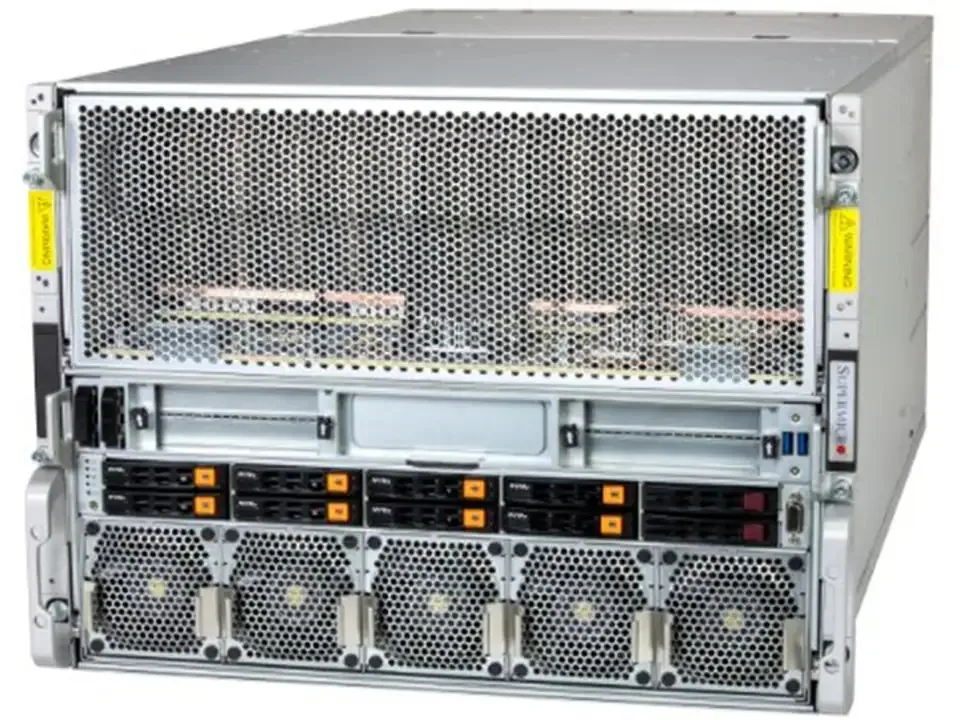

8U rack server chassis with front drive bays and LED indicators

Supermicro

Supermicro AS -8126GS-TNMR-G1 8U rack server dual EPYC 9575F 2.3TB DDR5 8×MI325X 4×3.8TB+960GB NVMe

SKU CH-EZVC-6B36S MPN AS -8126GS-TNMR-G1

An 8U rack server with dual EPYC 9575F CPUs, eight MI325X GPUs, 2.3TB DDR5-6400 memory, and 4×3.8TB plus 960GB U.2 NVMe storage

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height8U
  • LEDsHDD activity Network activity LEDs System information (overh
  • CPU TypeAMD EPYC 9005 Series
  • CPU Speed9575F (3.30 GHz)
  • Dual EPYC 9575F CPUs deliver 64 cores each at 3.30 GHz
  • Eight AMD Instinct MI325X GPUs accelerate large-scale AI and HPC workloads
  • 3 TB DDR5-6400 memory supports massive datasets with room to grow to 6 TB
  • Four 3.8 TB plus one 960 GB U.2 NVMe SSDs provide fast, high-capacity storage
  • Eight single 400 GbE QSFP112 ports plus dual 10 GbE RJ45 enable high-throughput networking

Dual EPYC 9575F 8U server

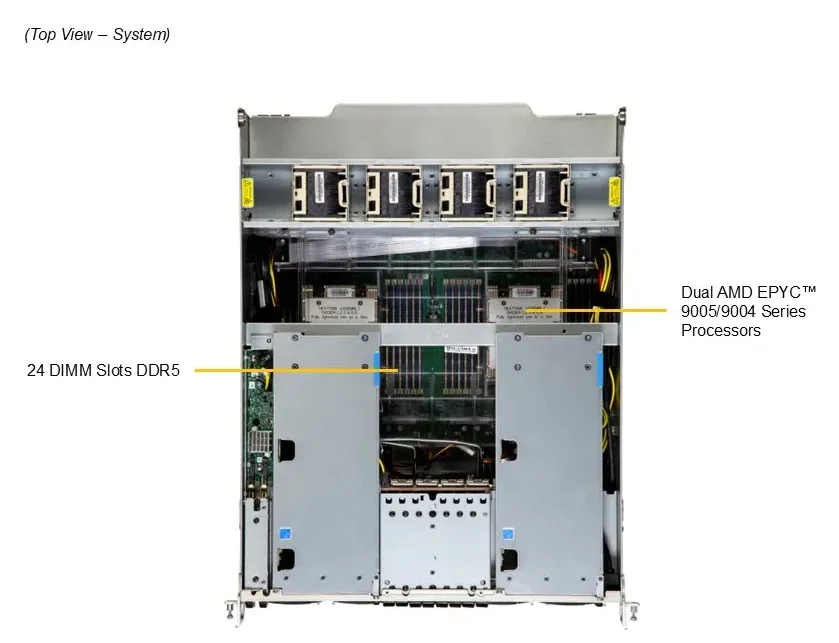

This 8U rack system ships with two AMD EPYC 9575F processors running at 3.30 GHz, each delivering 64 cores. The platform targets organisations running large-scale AI training, high-performance computing or dense virtualisation workloads that demand maximum thread count and memory bandwidth in a single chassis.

Eight MI325X GPUs with 400GbE fabric

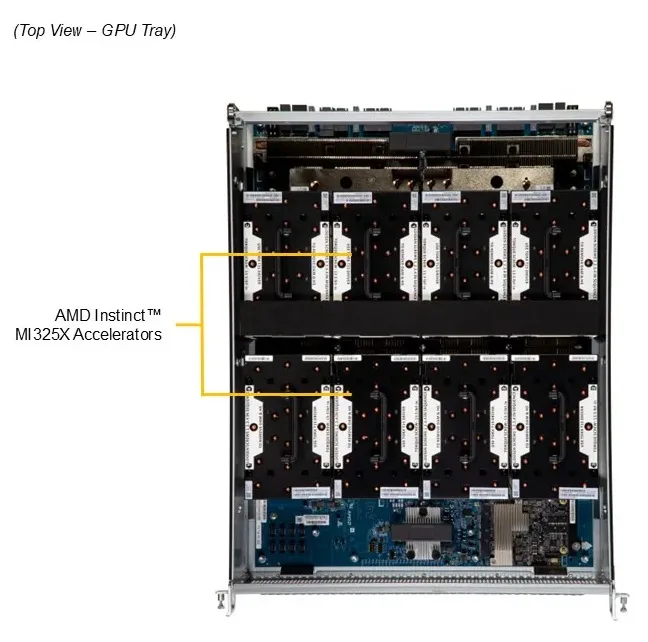

Eight AMD Instinct MI325X accelerators provide massive parallel compute for model training and inference. The network layer uses eight single 400GbE QSFP112 ports plus one dual 10GbE RJ45 connection, enabling low-latency GPU-to-GPU and GPU-to-storage communication across the cluster.

Hot-swap bays simplify drive changes

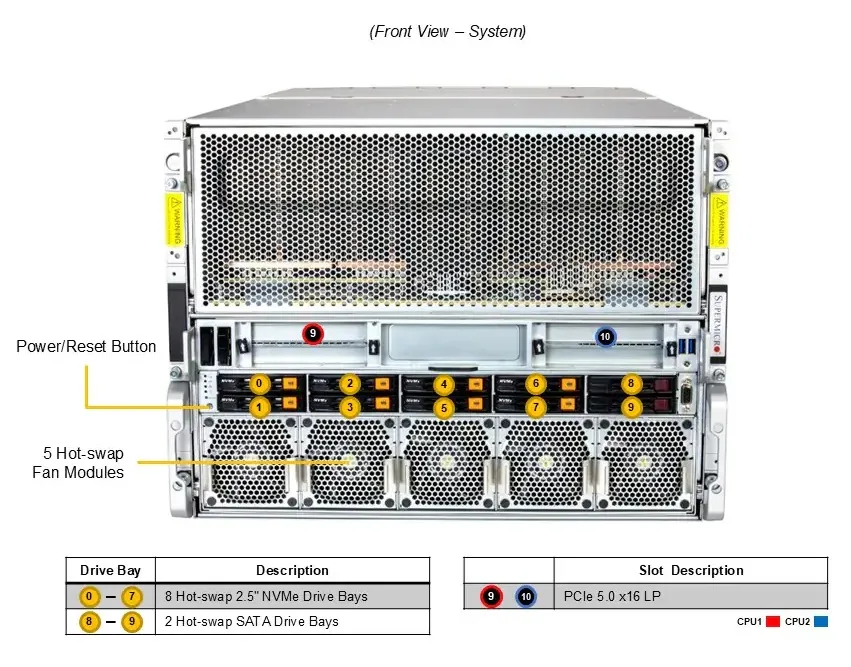

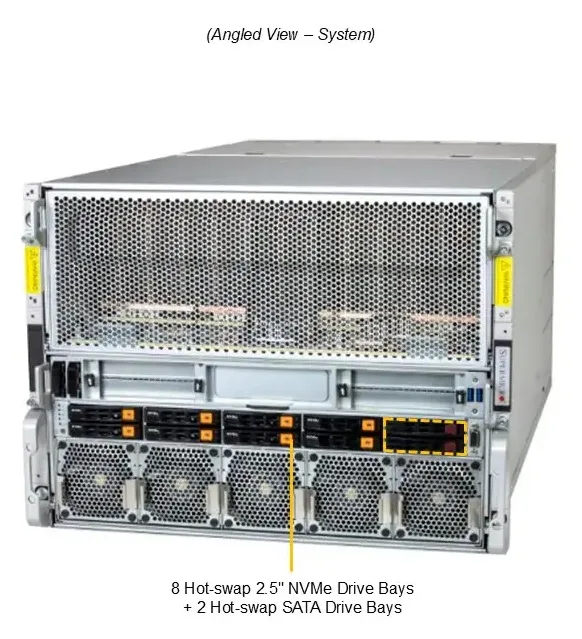

Ten front-accessible 2.5-inch bays (eight NVMe, two SATA) and two internal M.2 NVMe slots allow storage expansion without downtime. Six 5250W titanium power supplies share the load; losing one unit reduces redundancy but keeps the system running. Cable routing in an 8U depth requires planning to avoid airflow blockage.

Besonderheiten

  • Dual EPYC 9575F CPUs deliver 64 cores each at 3.30 GHz
  • Eight AMD Instinct MI325X GPUs accelerate large-scale AI and HPC workloads
  • 3 TB DDR5-6400 memory supports massive datasets with room to grow to 6 TB
  • Four 3.8 TB plus one 960 GB U.2 NVMe SSDs provide fast, high-capacity storage
  • Eight single 400 GbE QSFP112 ports plus dual 10 GbE RJ45 enable high-throughput networking

Technische Daten

BrandSUPERMICRO
ModelAS -8126GS-TNMR-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height8U
LEDsHDD activity
Network activity LEDs
System information (overheat/UID)
UID
CPU TypeAMD EPYC 9005 Series
CPU Speed9575F (3.30 GHz)
Number of CPU Cores64-Core Processor
Cache Memory256 MB
# of Processors Installed2
MAX Processors2
Installed Memory Size2.3TB
Memory TypeDDR5 6400
Max Memory Capacity6TB
Memory FeaturesMax Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Number of Memory Slots24
SSD (Installed)4 x 3.8TB U.2 NVMe SSD
1 x 960GB U.2 NVMe SSD
Servers_Graphic Installed1
GPU TypeAMD Instinct MI325X 8-GPU
Ethernet Controller8 x Single 400GbE QSFP112
1 x Dual 10GbE RJ45
Expansion Bays2 front hot-swap 2.5" SATA drive bays
8 front hot-swap 2.5" NVMe drive bays
2 M.2 NVMe slots (M-key)
Power Characteristics6 x 5250W Titanium Level
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
HumidityOperating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions13.8" x 17.6" x 33.2"
Weight105.82 lbs.
Versandgewicht102.06 kg
Paketgröße1300 × 749 × 699 mm

Fragen zu diesem Artikel

When do the six 5250W titanium PSUs need replacement?

Six hot-swap 5250W titanium units share the load; swap any module without downtime when its health LED flags a fault.

Which resource saturates first during continuous 8-GPU MI325X training?

The dual EPYC 9575F 64-core CPUs and 2.3TB DDR5-6400 memory feed eight MI325X accelerators over 400GbE QSFP112 links; sustained workloads typically hit GPU compute or interconnect bandwidth before CPU or memory limits.

What are the noise and heat levels when the system runs 24/7?

Six redundant 5250W titanium supplies and high-airflow fans keep the 8U chassis within thermal spec; acoustic output rises with GPU load but remains within typical data-centre thresholds.
