Supermicro SYS-5019S-W4TR 1U rack server Xeon E3-1280 v5 16GB DDR4

1U Xeon E3-1280 v5 Server

The Supermicro SYS-5019S-W4TR is a new 1U rackmount server system built around an Intel Xeon E3-1280 v5 processor running at 3.7 GHz with four cores. It arrives with 16 GB of DDR4 ECC memory installed across two modules and includes a MegaRAID 9361-8i controller with 1 GB cache. Dual redundant 500 W power supplies provide hot-swap reliability in a compact chassis.

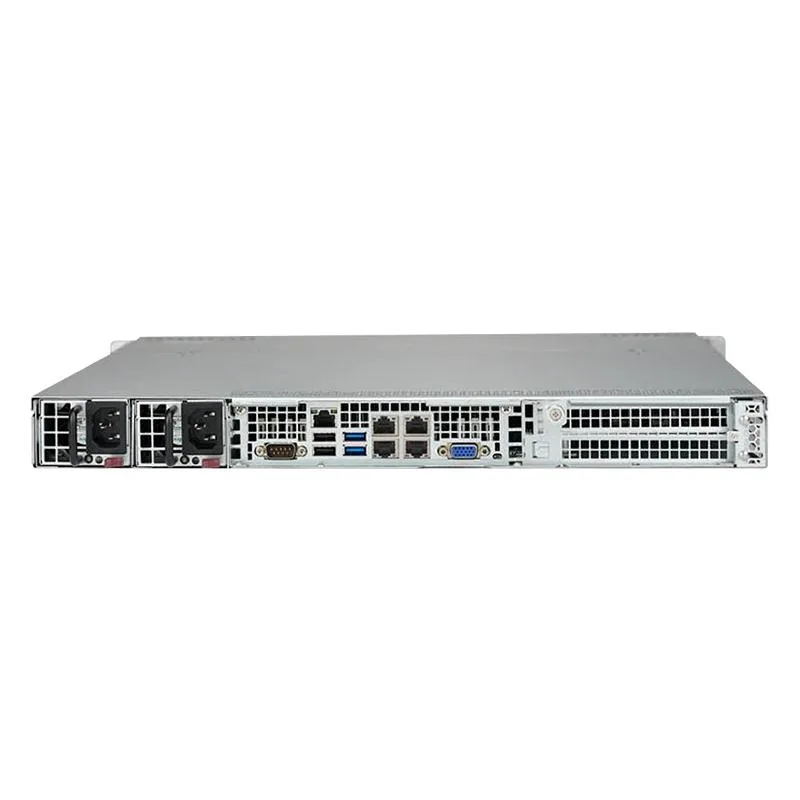

IT Teams Needing 10 GbE Density

This system suits administrators who need four 10GBase-T ports driven by an Intel X540 controller for high-throughput networking in a single rack unit. IPMI 2.0 with dedicated LAN gives full out-of-band management including KVM-over-LAN. Buyers requiring more than four 3.5-inch drive bays or a larger memory footprint from day one should evaluate alternative configurations.

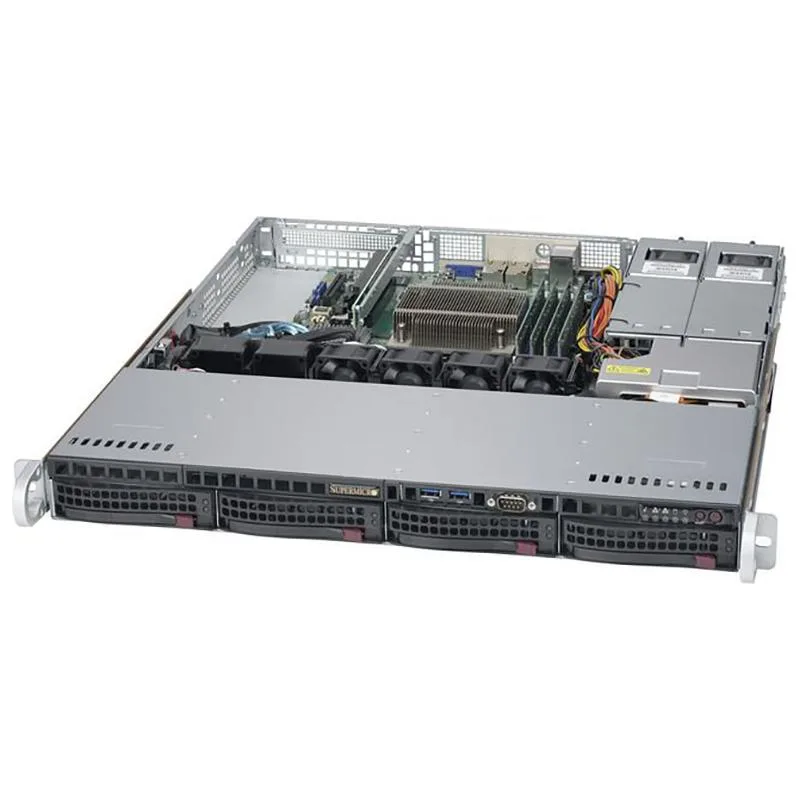

Four Hot-Swap 3.5-Inch Bays

The chassis provides exactly four front-accessible 3.5-inch trays supporting SATA and SAS drives with hot-plug capability. No drives are included in the shipment. The MegaRAID 9361-8i handles RAID 0, 1, 5, 6, 10, 50 and 60 across these bays. This bay count is the primary constraint for storage planning.
