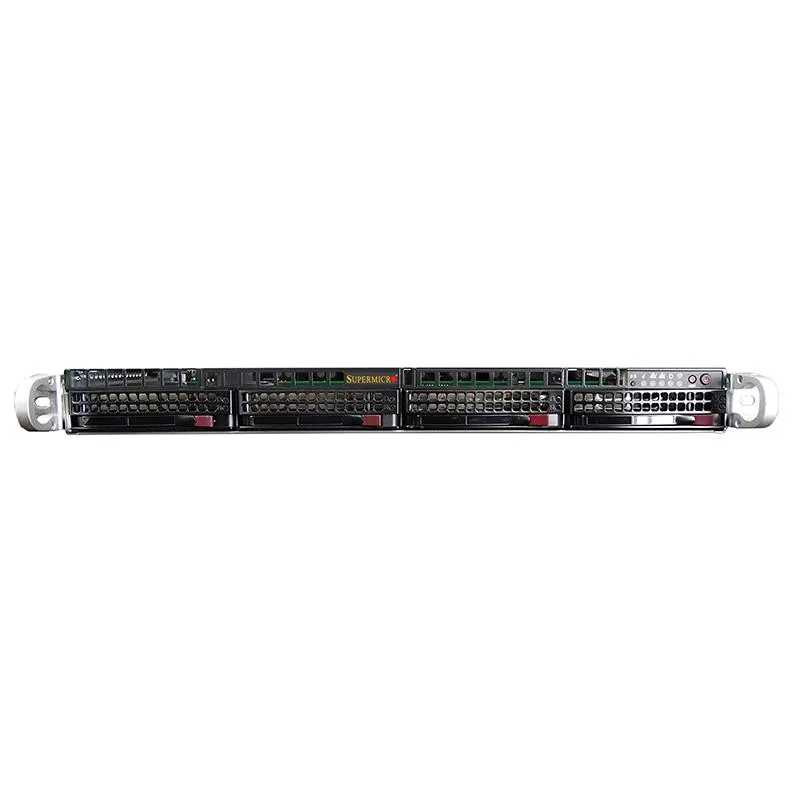

Black 1U rack server front with four 3.5 inch drive trays

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server 2x E5-2699 v4 768GB DDR4 4x 3.5" bays

SKU CH-MG22-F58HK

1U rack server with dual 22-core Xeon processors, 768GB DDR4 ECC memory, LSI MegaRAID 9361-8i controller, four 3.5-inch hot-plug bays, quad 10GBase-T ports, IPMI 2.0.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores22-Core Processor
  • Dual Xeon E5-2699 v4 22-core CPUs at 2.2 GHz with 3.6 GHz turbo for heavy compute
  • 768GB DDR4 2400MHz registered ECC memory across 24 DIMM slots for large datasets
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1GB cache and battery backup
  • Quad 10GBase-T ports via Intel X540 controller for high-speed network connectivity
  • IPMI 2.0 with dedicated LAN enables KVM-over-LAN and virtual media remote management

Dual Xeon 1U server for dense compute

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount system with two Intel Xeon E5-2699 v4 processors, each running at 2.2 GHz with 22 cores. It ships with 768 GB of DDR4 2400 MHz registered ECC memory across 24 DIMM slots. The platform targets virtualization, HPC and cloud workloads that need high core counts in minimal rack space.

Four 3.5-inch bays limit raw capacity

Only four hot-plug 3.5-inch SATA or SAS drive bays are provided, so total storage capacity is constrained by the number of large-form-factor drives you can install. The LSI MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50 and 60 with 1 GB cache and battery backup. No drives are included, and the front bezel and rack rails are not supplied.

768 GB installed memory decides fit

The system arrives with 768 GB of DDR4 ECC memory, which is half the 1.5 TB maximum the board can address. If your workload needs more than 768 GB you must add modules; if it needs less, you are paying for capacity you may not use. Dual 750 W platinum power supplies and quad 10GBase-T ports with IPMI 2.0 complete the package.

Besonderheiten

  • Dual Xeon E5-2699 v4 22-core CPUs at 2.2 GHz with 3.6 GHz turbo for heavy compute
  • 768GB DDR4 2400MHz registered ECC memory across 24 DIMM slots for large datasets
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1GB cache and battery backup
  • Quad 10GBase-T ports via Intel X540 controller for high-speed network connectivity
  • IPMI 2.0 with dedicated LAN enables KVM-over-LAN and virtual media remote management

Technische Daten

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores22-Core Processor
# of Processors InstalledE5-2699 V4
Installed Memory Size768GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

Should I pick the 768 GB configuration or add more memory later?

The system ships with 768 GB across 24 slots using 32 GB DDR4 2400 MHz registered ECC modules. All slots are populated, so any increase requires replacing existing DIMMs up to the 1.5 TB maximum.

What does the 2.2 GHz base clock with 3.6 GHz turbo mean for real workloads?

Each Xeon E5-2699 v4 runs at 2.2 GHz base and can boost to 3.6 GHz. With 22 cores per processor the server delivers high multi-threaded throughput for virtualization and compute tasks.

How does the X540 10GBase-T interface limit storage or network speed?

The quad-port X540 provides four RJ45 10GBase-T links. Network throughput caps at 10 Gb/s per port, while the MegaRAID 9361-8i handles SAS 12 Gb/s and SATA drives internally.
