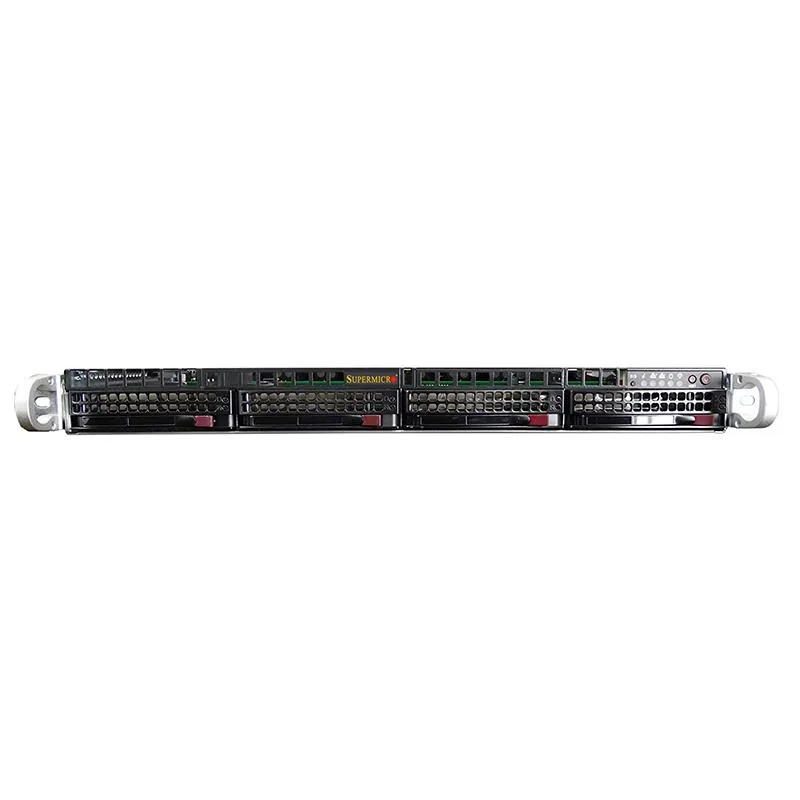

Silver 1U rack server front with four 3.5 inch drive bays

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server dual Xeon E5-2697 v4 2.3GHz 18-core 768GB DDR4

SKU CH-0ER3-YV9G7

1U rack server with dual 18-core Xeon processors at 2.3 GHz, 768 GB DDR4 ECC memory, MegaRAID 9361-8i controller, four 3.5-inch hot-swap drive bays.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores18-Core Processor
  • Dual 18-core Xeon processors at 2.3 GHz turbo to 3.6 GHz
  • 768 GB DDR4 2400 MHz ECC memory across 24 DIMM slots
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60
  • Four 10GBase-T RJ45 ports via Intel X540 controller
  • Dual 750 W platinum redundant hot-swap power supplies

Dense 1U compute platform

This Supermicro SYS-6018U-TR4T+ is a 1U rackmount server system equipped with dual Intel Xeon E5-2697 v4 processors, each running at 2.30 GHz with 18 cores, and populated with 768 GB of DDR4 memory across 24 slots. It includes a MegaRAID 9361-8i controller, four 3.5-inch SATA/SAS hot-swap drive bays, quad 10GBase-T Ethernet ports, IPMI 2.0 management, and dual 750 W redundant power supplies.

Virtualisation hosts and HPC clusters.

The dual 18-core CPUs and large memory capacity suit virtualisation hosts, high-performance computing clusters, and memory-intensive database workloads that benefit from high core counts and bandwidth. Buyers needing GPU acceleration should look elsewhere, as the only video output is a Matrox G200 with 8 MB memory and no PCIe expansion is described for add-in cards.

768 GB DDR4 registered ECC memory installed

The system ships with 768 GB (24 × 32 GB) of DDR4 2400 MHz registered ECC memory, filling all 24 DIMM slots. This maximum-populated configuration determines whether the platform meets the capacity needs of memory-bound applications without further upgrades.

Besonderheiten

  • Dual 18-core Xeon processors at 2.3 GHz turbo to 3.6 GHz
  • 768 GB DDR4 2400 MHz ECC memory across 24 DIMM slots
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60
  • Four 10GBase-T RJ45 ports via Intel X540 controller
  • Dual 750 W platinum redundant hot-swap power supplies

Technische Daten

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 2011-3
Number of CPU Cores18-Core Processor
# of Processors InstalledE5-2697 V4
Installed Memory Size768GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

Will the LSI MegaRAID 9361-8i controller battery need periodic replacement?

The 9361-8i includes a 1 GB cache module backed by a battery that typically requires replacement every few years to preserve write-cache protection during power loss.

Which component hits its limit first when all 36 cores run at sustained load in this 1U chassis?

Thermal headroom is the first constraint; the compact 1U airflow path and dual 18-core Xeons at 2.3 GHz push the cooling design before the 750 W platinum power supplies reach their capacity ceiling.

How loud are the system fans when the server runs 24/7 under typical virtualization workloads?

Expect continuous high-RPM fan noise in a 1U form factor; dual 18-core CPUs and fully populated 768 GB DDR4 keep airflow demand high, so the unit is suited for rack rooms rather than office spaces.
