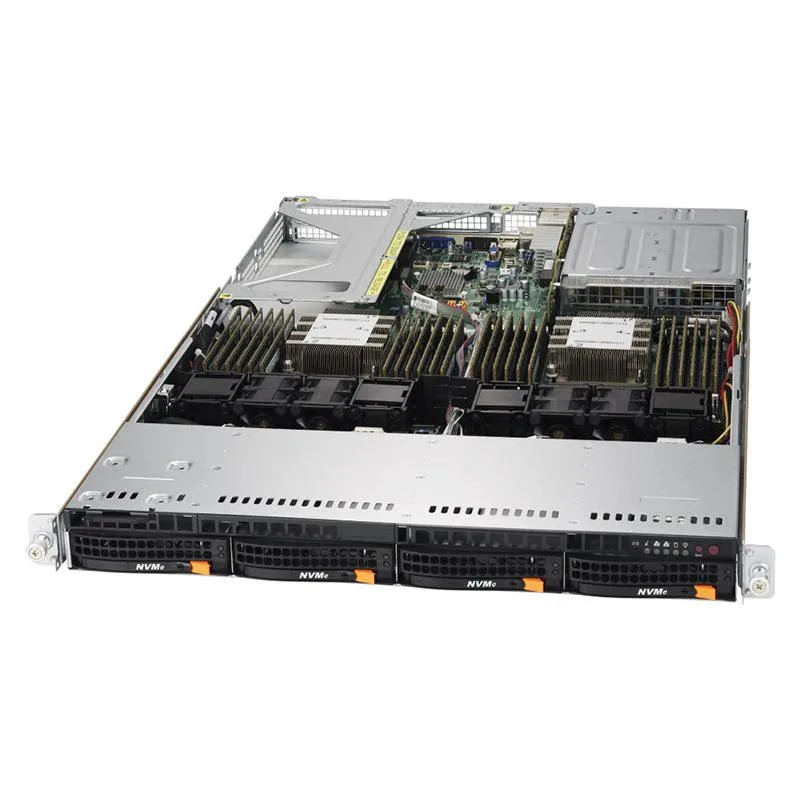

Supermicro SYS-6019U-TN4R4T 1U rack server 2× Xeon Silver 4110 128GB DDR4 4× 3.5" bays 4× 10GBase-T 2× 750W

Dense 1U compute node

The Supermicro SYS-6019U-TN4R4T is a 1U rackmount server system built around two Intel Xeon Silver 4110 processors, each running at 2.10 GHz with 8 cores. It ships with 128GB of DDR4 2400MHz registered ECC memory installed across eight 16GB modules. A MegaRAID 9361-8i controller with 1GB cache and battery backs four hot-swap 3.5-inch SATA/SAS drive bays, while an AOC-UR-i4XT add-on card provides four 10GBase-T ports via the Intel X540 controller.

Suited for virtualization hosts

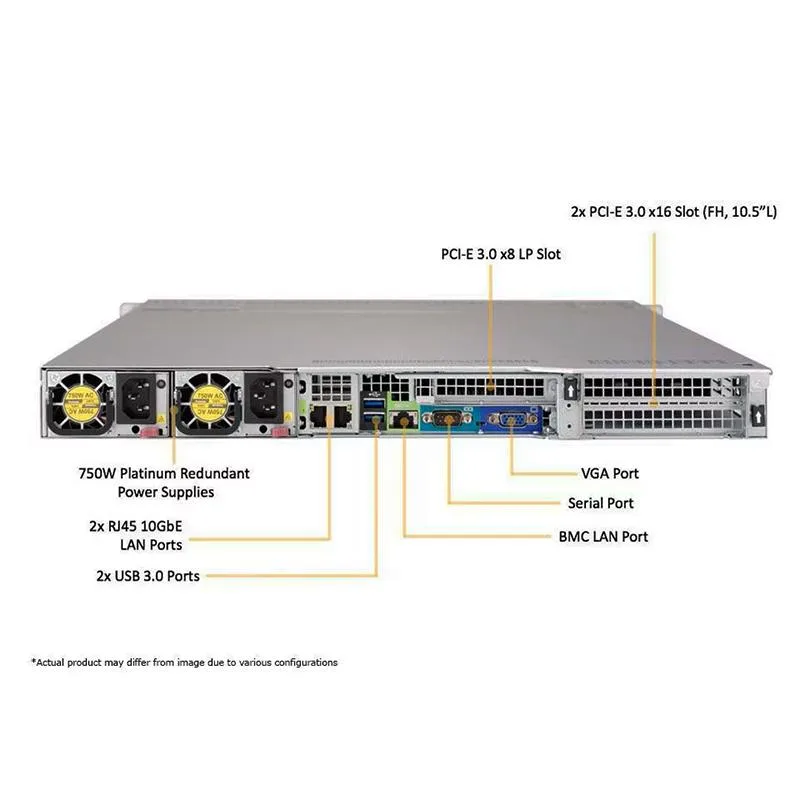

This configuration fits environments that need dual-socket compute density, redundant 750W platinum power supplies, and dedicated IPMI 2.0 management in a single rack unit. Buyers who need more drive slots, GPU acceleration, or faster networking should evaluate larger chassis or alternative configurations. The included Matrox G200 graphics with 8MB video memory covers basic console output only.

Storage-controller bottleneck check

The 9361-8i RAID controller offers eight internal SAS 12Gb/s ports supporting RAID 0, 1, 5, 6, 10, 50, and 60. Verify that eight lanes satisfy both the four front bays and any internal boot devices or rear drives you plan to add, because the controller’s port count is the hard limit for attached SATA/SAS devices.
