Supermicro SYS-6019U-TN4R4T 1U rack server 2x Xeon Gold 5118 2.3GHz 128GB DDR4 4x 3.5" bays

Compact 1U rack server for dense compute

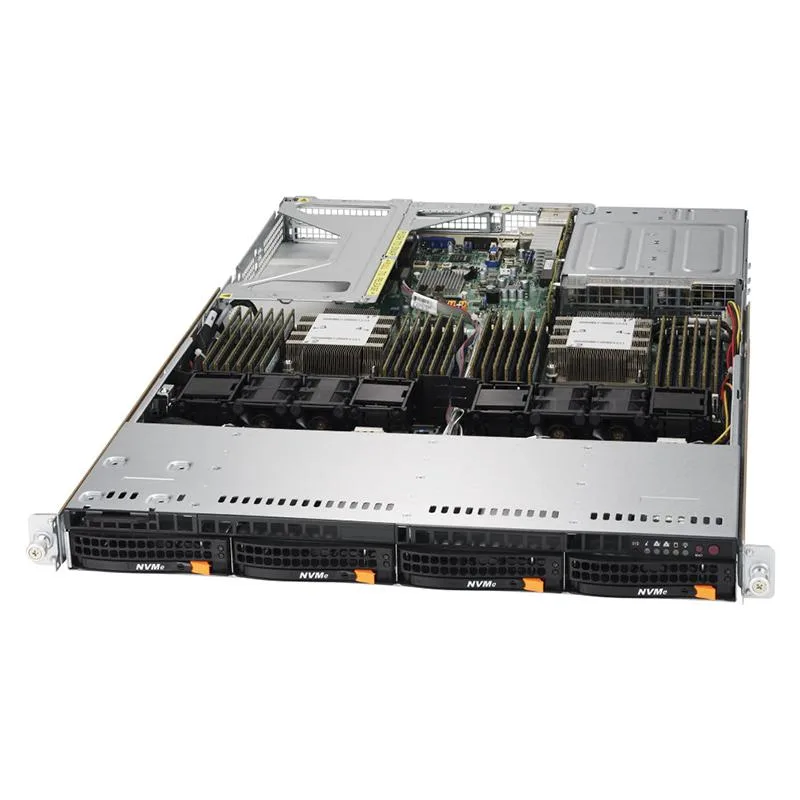

The Supermicro SYS-6019U-TN4R4T is a 1U rackmount system built for data-centre density. It ships with two Intel Xeon Gold 5118 processors, each running at 2.3 GHz with 12 cores. The platform includes 128 GB of DDR4 2400 MHz registered ECC memory across eight 16 GB modules. Four front-access 3.5-inch hot-swap bays accept SATA or SAS drives for flexible storage capacity.

Sustained load behaviour with redundant power

Dual 750 W platinum-efficiency power supplies provide redundant hot-swap power for continuous operation. The LSI MegaRAID 9361-8i controller with 1 GB battery-backed cache maintains write performance and data integrity during extended RAID 0/1/5/6/10/50/60 workloads. Four 10GBase-T ports via Intel X540 deliver consistent high-throughput networking. IPMI 2.0 with dedicated LAN enables remote KVM and virtual media management without interrupting the host.

Pre-deployment checks for integration

Verify that your rack provides 1U clearance and supports the server depth, as front bezel and rack-mount rails are not included. Confirm that the 3.5-inch drive trays match your chosen SATA or SAS media; no drives are installed. Ensure the LGA 3647 socket cooling solution fits the chassis airflow design. The Matrox G200 graphics with 8 MB video memory suits management consoles only, not graphical workloads.
