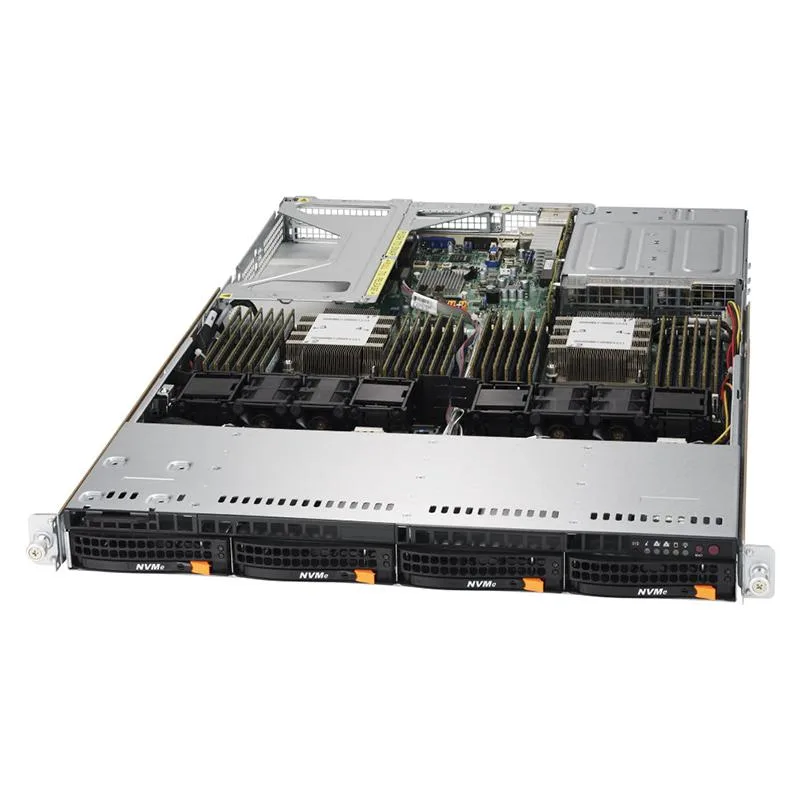

Silver 1U rack server front with four 3.5-inch drive trays

Supermicro

Supermicro SYS-6019U-TN4R4T 1U rack server 2x Xeon Gold 5118 2.3GHz 12-core 16GB DDR4 4x 3.5" bays

SKU CH-30TF-DSPP3

1U rack server with dual 12-core Xeon Gold 5118 CPUs, 16GB DDR4, four 3.5" hot-swap bays, MegaRAID 9361-8i, four 10GBase-T ports, IPMI 2.0, and dual 750W PSUs

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores12-Core Processor
  • Dual 12-core Xeon Gold 5118 CPUs deliver 24 threads at 2.3 GHz base clock
  • 16 GB DDR4 2400 MHz ECC memory protects data integrity for critical workloads
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Four 3.5-inch hot-swap bays accept SATA or SAS drives for flexible storage scaling
  • Four 10GBase-T ports via Intel X540 plus IPMI 2.0 dedicated LAN enable fast remote management

Dual Xeon 1U server for dense compute

The Supermicro SYS-6019U-TN4R4T is a 1U rackmount system built around two Intel Xeon Gold 5118 processors. Each CPU delivers 12 cores at 2.3 GHz with a 3.2 GHz turbo frequency. Sixteen gigabytes of DDR4 2400 MHz registered ECC memory are installed across two slots. The platform targets virtualization, high-performance computing and software-defined storage workloads where rack density matters.

Four hot-swap 3.5-inch bays with hardware RAID

Storage connectivity centers on the LSI MegaRAID 9361-8i controller, which provides eight SAS 12 Gb/s ports and 1 GB of battery-backed cache. The chassis exposes four front-accessible 3.5-inch drive bays that accept SATA or SAS drives. Supported RAID levels include 0, 1, 5, 6, 10, 50 and 60, giving administrators flexibility to balance capacity, performance and redundancy without adding a separate HBA.

Redundant power and 10 GbE networking included

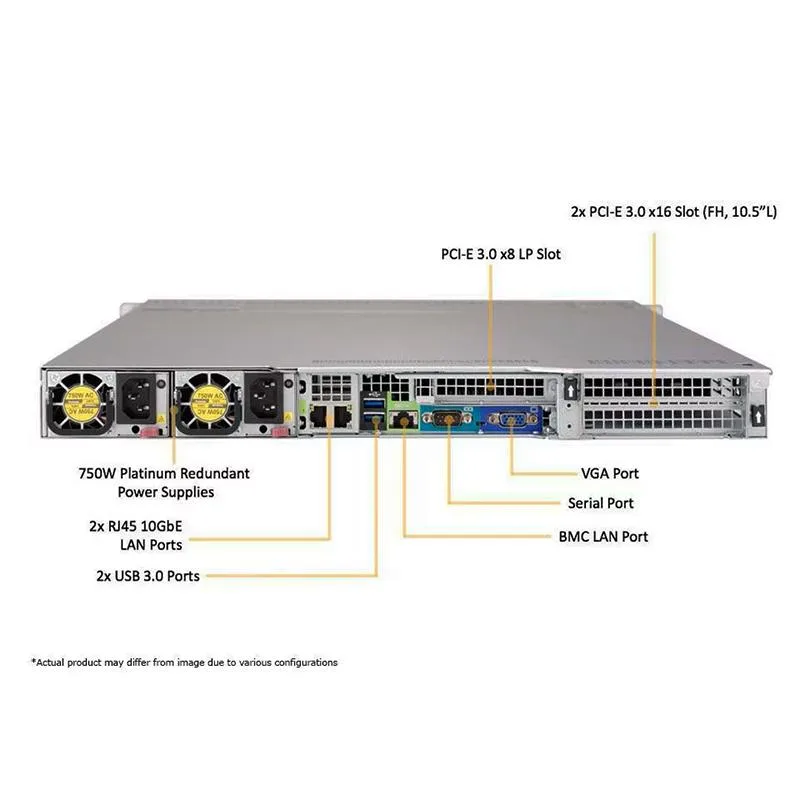

Two 750-watt platinum-efficiency power supplies operate in a hot-swap redundant configuration. Network I/O comes from an AOC-UR-i4XT add-on card that adds four 10GBase-T ports based on the Intel X540 controller. A dedicated RJ45 management port enables IPMI 2.0 with KVM-over-LAN and virtual media. The front bezel and rack rails are not included, so plan for separate mounting hardware.

Besonderheiten

  • Dual 12-core Xeon Gold 5118 CPUs deliver 24 threads at 2.3 GHz base clock
  • 16 GB DDR4 2400 MHz ECC memory protects data integrity for critical workloads
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Four 3.5-inch hot-swap bays accept SATA or SAS drives for flexible storage scaling
  • Four 10GBase-T ports via Intel X540 plus IPMI 2.0 dedicated LAN enable fast remote management

Technische Daten

BrandSUPERMICRO
SeriesCSE-819UTS-R751P-T-X11DPU
ModelSYS-6019U-TN4R4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 3647
Number of CPU Cores12-Core Processor
# of Processors InstalledGold 5118
Installed Memory Size16GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via AOC-UR-i4XT (Intel X540 10GBase-T)
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

How does the 2.3 GHz base clock with 3.2 GHz turbo affect real-world throughput in a dual-socket 1U server?

The two Xeon Gold 5118 processors run at 2.3 GHz base and can boost to 3.2 GHz, giving 24 total cores for parallel workloads while the 1U form factor limits sustained turbo under heavy load.

What does the LSI MegaRAID 9361-8i controller’s 12 Gb/s SAS interface cap at with four 3.5-inch drive bays?

The 9361-8i provides eight 12 Gb/s SAS lanes, but only four 3.5-inch hot-swap bays are wired, so the practical ceiling is four concurrent SATA or SAS drives.

What rack hardware is required to mount this 1U chassis since rails and bezel are not included?

The server needs standard 1U square-hole rack rails purchased separately; the front bezel is also absent, so the bare chassis slides directly into the rails.
