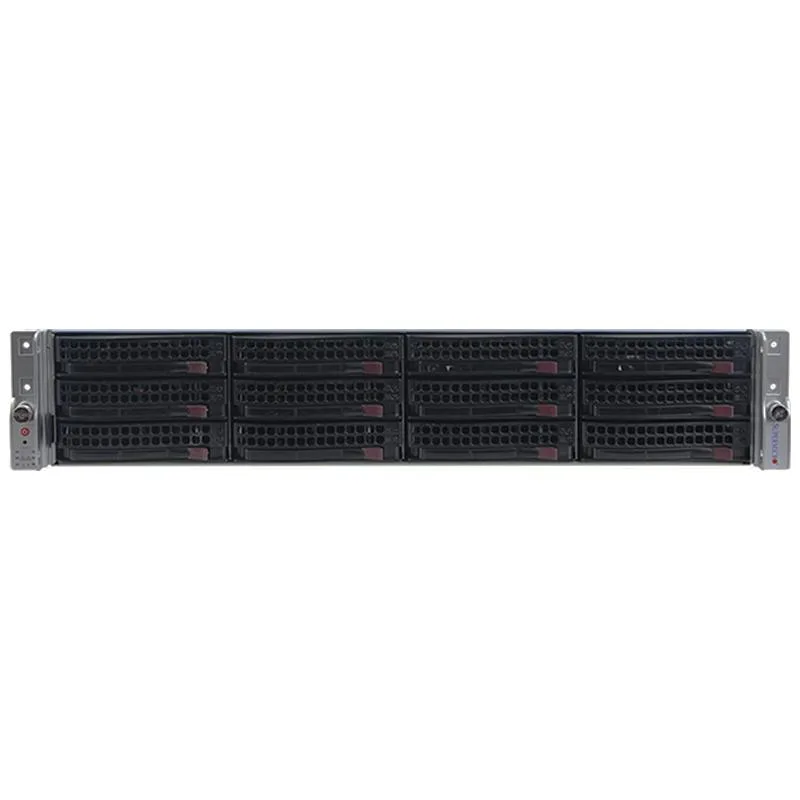

Silver 2U rack server front with twelve 3.5-inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon 8160 768GB 12 bay

SKU CH-44MM-R4VC4

A 2U rack server with dual 24-core Xeon Platinum 8160 processors, 768GB DDR4 memory, 12 hot-swap 3.5-inch drive bays, MegaRAID 9361-8i controller, four 10GBase-T ports and dual 1000W power supplies

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor
  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz base with 3.7 GHz turbo
  • 768 GB DDR4-2666 ECC registered memory installed across 24 slots for large datasets
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cached battery backup
  • Twelve hot-swap 3.5" SAS/SATA drive bays enable high-capacity storage scaling
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 LAN for remote management

Dual Xeon 8160 server

This new Supermicro SYS-6029U-E1CR4T is a 2U rackmount system built around two Intel Xeon Platinum 8160 processors running at 2.1 GHz with 24 cores each. It ships with 768 GB of DDR4-2666 ECC registered memory across 24 DIMM slots. The platform targets virtualization, hyper-converged storage and cloud workloads that demand high core counts and large memory capacity.

12 hot-swap 3.5" drive bays

Storage connectivity runs through an LSI MegaRAID 9361-8i controller supporting RAID 0, 1, 5, 6, 10, 50 and 60 across twelve SATA or SAS bays. Four of the bays can be reconfigured for NVMe with an additional add-on card. The chassis includes dual 1000 W titanium-efficiency redundant power supplies and four 10GBase-T ports via an Intel X710 controller.

768 GB DDR4 with room to 6 TB

The installed 24×32 GB modules fill every slot, leaving no empty sockets for simple expansion. Maximum supported capacity reaches 6 TB using 3DS LRDIMMs or Intel Optane DC persistent memory, but achieving that requires replacing all existing modules. Workloads fitting within 768 GB run comfortably; larger datasets will need a full memory swap.

Besonderheiten

  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz base with 3.7 GHz turbo
  • 768 GB DDR4-2666 ECC registered memory installed across 24 slots for large datasets
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cached battery backup
  • Twelve hot-swap 3.5" SAS/SATA drive bays enable high-capacity storage scaling
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 LAN for remote management

Technische Daten

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors InstalledPlatinum 8160
Installed Memory Size768GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

What does the 768 GB DDR4-2666 memory configuration mean for actual workloads?

The system ships with 24 registered ECC modules running at 2666 MT/s, giving 768 GB total capacity for large virtualisation or in-memory database tasks.

What does the LSI MegaRAID 9361-8i controller cap in practice?

The 8-port 12 Gb/s SAS controller supports RAID 0, 1, 5, 6, 10, 50 and 60 with 1 GB cache and battery backup, limiting arrays to eight connected drives.

What physical space and mounting hardware does the 2U chassis require?

The chassis fits a standard EIA rack opening and uses 2U of vertical space; front bezel and rack-mount rails are not included.
