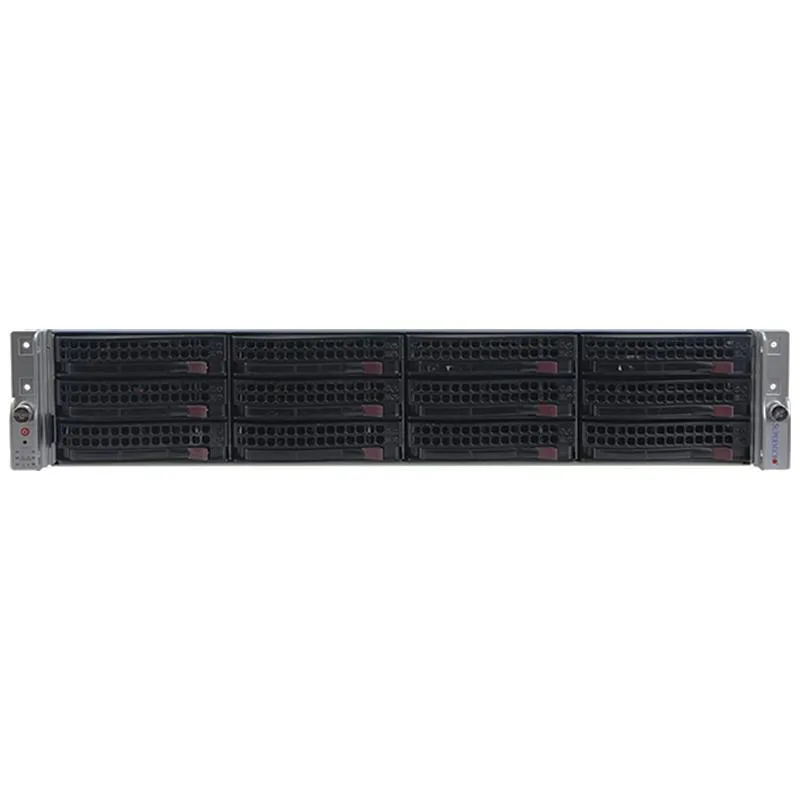

Silver 2U rack server with twelve front 3.5 inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Gold 6130 16-core 32GB DDR4 12x 3.5" bays

SKU CH-KC9W-W645H

2U rack server with dual 16-core Xeon Gold 6130 CPUs, 32GB DDR4, 12 hot-swap 3.5" bays, LSI 9361-8i RAID, 4×10GBase-T and IPMI 2.0

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores16-Core Processor
  • Dual Xeon Gold 6130 CPUs provide 32 total cores for parallel workloads
  • 32 GB DDR4-2666 ECC registered memory protects data integrity
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Twelve hot-swap 3.5" bays accept SAS or SATA drives
  • Four 10GBase-T ports via Intel X710 deliver high-speed networking

Dual 16-core Xeon 2U server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount system built around two Intel Xeon Gold 6130 processors. Each CPU runs at 2.10 GHz with a 3.7 GHz turbo frequency and provides 16 cores. The chassis includes 32 GB of DDR4-2666 ECC registered memory and dual 1000 W titanium power supplies.

Virtualisation hosts needing 10 GbE density

This server suits teams running virtualised workloads, hyper-converged storage or cloud nodes that require four 10GBase-T ports and twelve 3.5-inch hot-swap bays. Buyers who need GPU compute, more than 24 DIMM slots populated, or front bezel and rails included should evaluate other platforms.

Twelve 3.5-inch hot-swap drive bays

The defining specification is the count of twelve 3.5-inch SATA/SAS hot-plug bays backed by an LSI MegaRAID 9361-8i controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. Confirm the bay count and controller match your storage design before ordering.

Besonderheiten

  • Dual Xeon Gold 6130 CPUs provide 32 total cores for parallel workloads
  • 32 GB DDR4-2666 ECC registered memory protects data integrity
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Twelve hot-swap 3.5" bays accept SAS or SATA drives
  • Four 10GBase-T ports via Intel X710 deliver high-speed networking

Technische Daten

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores16-Core Processor
# of Processors InstalledGold 6130
Installed Memory Size32GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

How do I install the MegaRAID 9361-8i controller and what step is often missed?

The 9361-8i installs in a PCIe 3.0 x8 slot; the step often missed is connecting the SAS cables from the controller to the backplane for all 12 bays.

What maintenance will the MegaRAID 9361-8i battery need?

The 9361-8i includes a 1 GB cache with battery backup; the battery should be checked periodically and replaced when it no longer holds charge to protect cached writes.

What thermal limit appears first under sustained load with the 2.1 GHz 16-core Xeons?

Each Xeon Gold 6130 has a 205 W TDP; the dual 1000 W titanium power supplies and 2U cooling are designed to handle the combined processor heat under continuous operation.
