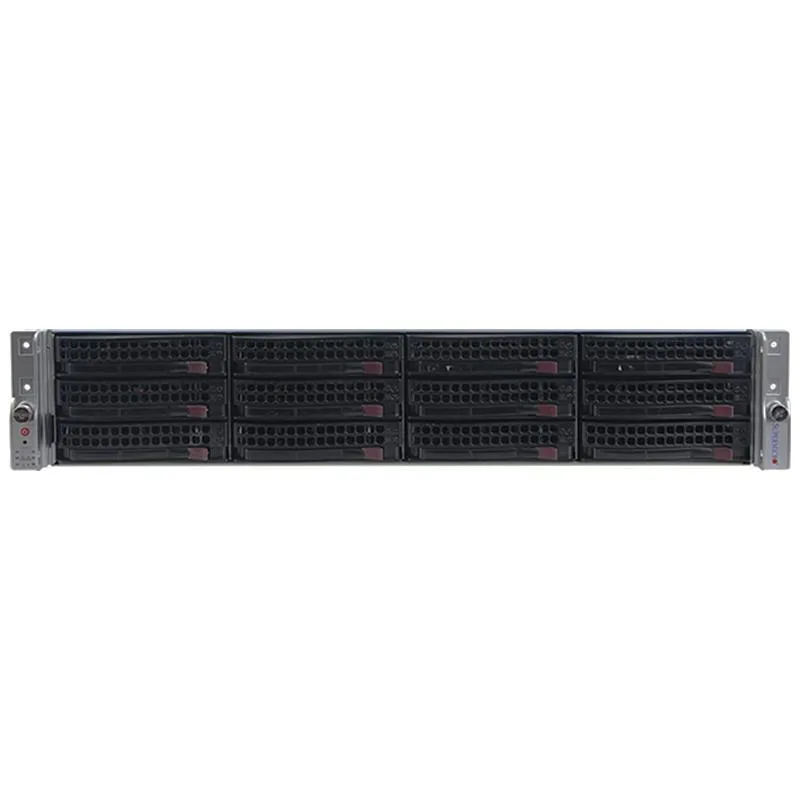

Silver 2U rack server front with twelve 3.5 inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Silver 4110 128GB DDR4 12x 3.5" bays

SKU CH-BTEK-2FPJJ

2U rack server with dual 8-core Xeon Silver 4110 CPUs, 128 GB DDR4 ECC memory, MegaRAID 9361-8i controller, twelve 3.5" hot-swap bays, four 10GBase-T ports.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores8-Core Processor
  • Dual Xeon Silver 4110 CPUs deliver 16 cores at 2.1 GHz for multi-threaded workloads
  • 128 GB DDR4 2400 MHz ECC memory supports large virtualisation and database tasks
  • MegaRAID 9361-8i controller enables RAID 0, 1, 5, 6, 10, 50, 60 across 12 hot-swap 3.5" bays
  • Four 10GBase-T ports via Intel X710 provide high-speed network connectivity
  • Dual 1000 W titanium-efficiency power supplies with hot-swap redundancy ensure continuous uptime

12-Bay 2U Server with Dual Xeon Silver 4110

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount server system built for virtualisation, hyper-converged storage and cloud workloads. It ships with two Intel Xeon Silver 4110 processors at 2.1 GHz, 128 GB of DDR4-2400 ECC memory and a MegaRAID 9361-8i controller with battery-backed cache. Twelve hot-plug 3.5" drive bays support SATA and SAS media.

Suits teams needing dense 10GbE storage nodes.

Four onboard 10GBase-T ports via the Intel X710 controller and a dedicated IPMI 2.0 LAN port make this chassis a natural fit for software-defined storage clusters or virtualisation hosts that rely on fast Ethernet fabrics. The Matrox G200 graphics and lack of installed GPUs mean buyers who need hardware-accelerated AI, rendering or VDI should look at a different platform.

12 hot-plug 3.5" bays decide storage density

The twelve front-accessible bays accept SATA or SAS hard drives and SSDs, and the 9361-8i RAID controller supports RAID 0, 1, 5, 6, 10, 50 and 60. If your dataset requires more than twelve 3.5" spindles, or you need native NVMe U.2 bays without an additional add-in card, this server will not meet that requirement.

Besonderheiten

  • Dual Xeon Silver 4110 CPUs deliver 16 cores at 2.1 GHz for multi-threaded workloads
  • 128 GB DDR4 2400 MHz ECC memory supports large virtualisation and database tasks
  • MegaRAID 9361-8i controller enables RAID 0, 1, 5, 6, 10, 50, 60 across 12 hot-swap 3.5" bays
  • Four 10GBase-T ports via Intel X710 provide high-speed network connectivity
  • Dual 1000 W titanium-efficiency power supplies with hot-swap redundancy ensure continuous uptime

Technische Daten

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores8-Core Processor
# of Processors InstalledSilver 4110
Installed Memory Size128GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

What comes in the box and what must I source separately?

The system ships with two Xeon Silver 4110 processors, 128GB DDR4 ECC memory, MegaRAID 9361-8i controller, twelve 3.5-inch drive trays, four 10GBase-T ports, IPMI 2.0, and two 1000W titanium power supplies. Hard drives, front bezel, and rack rails are not included.

Which memory configuration is installed and how far can it grow?

Eight 16GB DDR4 2400MHz registered ECC modules fill eight of the 24 DIMM slots, leaving 16 slots free for expansion up to the platform maximum.

What does the 12-bay 3.5-inch layout mean for actual storage builds?

Twelve hot-swap bays accept SATA or SAS drives through the 9361-8i controller; four bays can be converted to NVMe with an additional storage add-on card.
