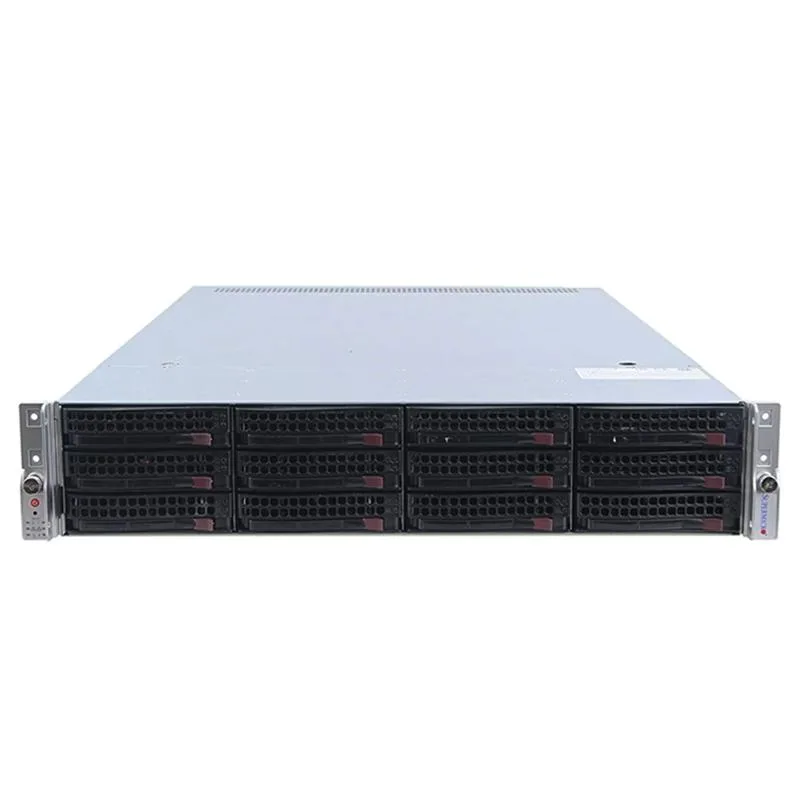

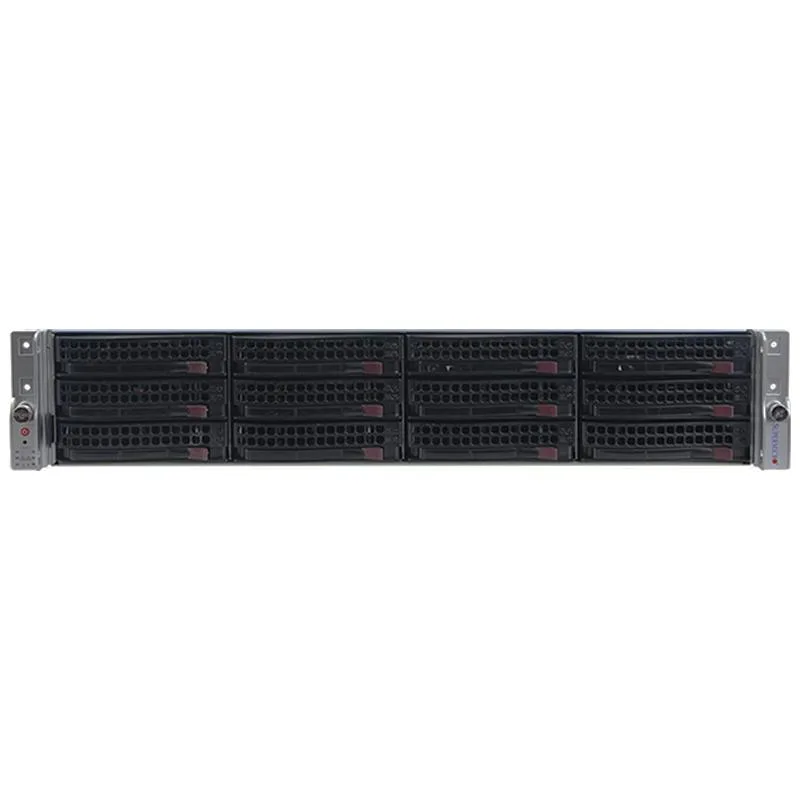

Silver 2U rack server with twelve front 3.5-inch drive bays and dual power supplies

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Silver 4110 768GB DDR4 12x 3.5" bays

SKU CH-W51S-7KXSM

2U rack server with dual Xeon Silver 4110 processors, 768GB DDR4, twelve 3.5-inch hot-swap bays, MegaRAID 9361-8i controller, four 10GBase-T ports and dual 1000W power supplies

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores8-Core Processor
  • Dual Xeon Silver 4110 CPUs deliver 16 cores at 2.1 GHz
  • 768 GB DDR4 2400 MHz ECC memory supports heavy virtualization workloads
  • MegaRAID 9361-8i controller enables RAID 0, 1, 5, 6, 10, 50, 60
  • Twelve 3.5" hot-swap bays provide high-capacity SAS/SATA storage density
  • Four 10GBase-T ports via Intel X710 plus IPMI 2.0 for remote management

Dual Xeon Silver 4110 2U server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount server system built for enterprise workloads such as virtualization, hyper-converged storage and cloud computing. It ships with two Intel Xeon Silver 4110 processors running at 2.1 GHz, 768 GB of DDR4 ECC memory across 24 DIMM slots and a MegaRAID 9361-8i controller with 1 GB cache and battery backup. Dual 1000 W titanium hot-swap power supplies provide redundancy.

Suited for dense storage and 10G networking

This server suits buyers who need twelve 3.5-inch hot-swap drive bays with SAS/SATA support and four 10GBase-T Ethernet ports via an Intel X710 add-in card. IPMI 2.0 with dedicated LAN enables remote KVM and virtual media management. It is not for buyers who require NVMe support without adding a storage card, who need front bezel and rack rails included, or who want integrated GPU performance beyond the Matrox G200 with 8 MB video memory.

LGA 3647 dual-socket platform

The motherboard uses two LGA 3647 sockets populated with Silver 4110 8-core CPUs and offers 24 DDR4 slots populated with 32 GB modules at 2400 MHz. Expansion includes two PCIe 3.0 x16 slots, four PCIe 3.0 x8 full-height slots, one low-profile PCIe 3.0 x8 slot and one internal PCIe 3.0 x8 slot. Maximum memory capacity reaches 6 TB with 3DS modules and the platform supports Intel Optane DC persistent memory.

Besonderheiten

  • Dual Xeon Silver 4110 CPUs deliver 16 cores at 2.1 GHz
  • 768 GB DDR4 2400 MHz ECC memory supports heavy virtualization workloads
  • MegaRAID 9361-8i controller enables RAID 0, 1, 5, 6, 10, 50, 60
  • Twelve 3.5" hot-swap bays provide high-capacity SAS/SATA storage density
  • Four 10GBase-T ports via Intel X710 plus IPMI 2.0 for remote management

Technische Daten

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores8-Core Processor
# of Processors InstalledSilver 4110
Installed Memory Size768GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

Does the server ship with any 3.5-inch drives, or do I need to buy 12 SATA or SAS drives separately?

The chassis includes 12 hot-swap trays but no hard disk drives are installed; you must supply 12 SATA or SAS drives yourself.

The spec lists 768 GB across 24 DIMM slots — is that the maximum capacity or can I expand beyond it?

768 GB is the installed amount using 24 × 32 GB modules; the platform supports up to 6 TB with larger RDIMM or LRDIMM kits.

With the dual Xeon Silver 4110 CPUs at 2.1 GHz, what all-core turbo frequency can I expect under sustained load?

Each 8-core Silver 4110 has a 3.0 GHz all-core turbo, so the system runs at 3.0 GHz across all 16 cores when thermal headroom allows.
