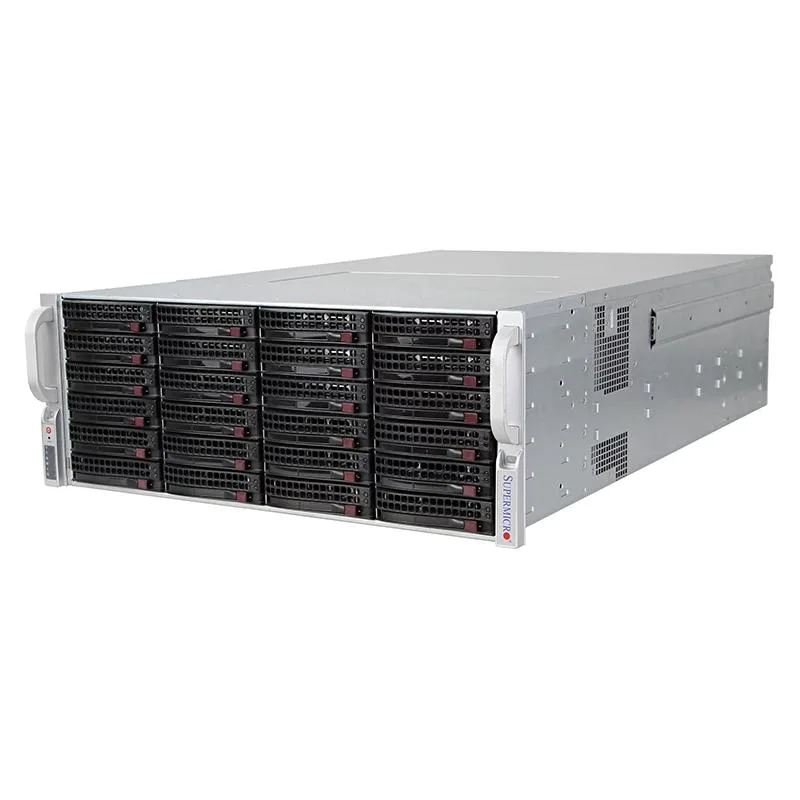

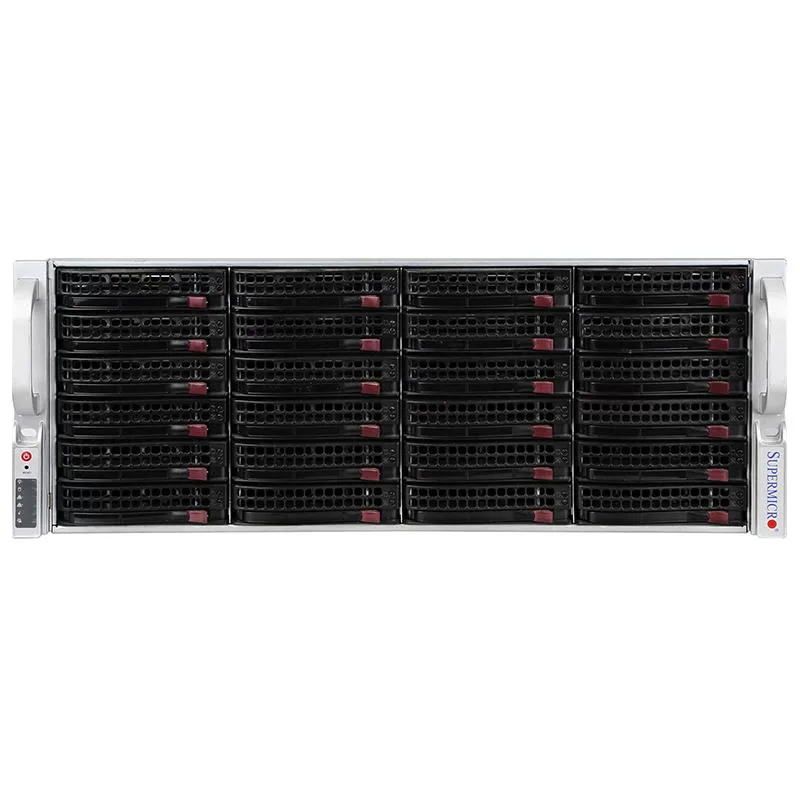

Silver 4U rack server front with 36 drive bays

Supermicro

Supermicro SYS-6048R-E1CR36N 36-bay 4U rack server 2x Xeon E5-2683 v4 16-core 768GB DDR4

SKU CH-TA1F-TJVYH

36 hot-swap 3.5" drive bays, dual Xeon 16-core CPUs, 768GB DDR4 ECC, MegaRAID 9361-8i, quad 10GbE and IPMI 2.0 in a 4U rack server

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores16-Core Processor
  • Dual Xeon E5-2683 v4 16-core CPUs deliver 2.1 GHz base and 3.0 GHz turbo performance
  • 768 GB DDR4 2400 MHz registered ECC memory across 24 slots supports demanding workloads
  • MegaRAID 9361-8i controller with 1 GB cache enables RAID 0, 1, 5, 6, 10, 50, 60
  • 36 hot-swap 3.5-inch SAS/SATA drive bays provide massive storage density in 4U
  • Quad 10GBase-T LAN via Intel X540 plus IPMI 2.0 dedicated management port

Storage Density

This 4U rack server delivers 36 hot-swap 3.5-inch drive bays driven by dual 16-core Intel Xeon E5-2683 v4 processors at 2.1 GHz and 768 GB of DDR4 ECC memory. The LSI MegaRAID 9361-8i controller supports RAID levels 0, 1, 5, 6, 10, 50 and 60 across SATA and SAS interfaces. Quad 10GBase-T ports and IPMI 2.0 management complete the package.

Ideal Use Cases

Archive teams and media libraries needing massive raw capacity in a single chassis will benefit from the 36-bay layout and hardware RAID flexibility. Buyers who require more than eight internal RAID ports or more than 768 GB of installed memory should look elsewhere.

Deciding Specification

The eight-port MegaRAID 9361-8i controller limits the number of drives that can be grouped in a single hardware RAID array. If your design needs more than eight drives per array you will need an additional controller.

Besonderheiten

  • Dual Xeon E5-2683 v4 16-core CPUs deliver 2.1 GHz base and 3.0 GHz turbo performance
  • 768 GB DDR4 2400 MHz registered ECC memory across 24 slots supports demanding workloads
  • MegaRAID 9361-8i controller with 1 GB cache enables RAID 0, 1, 5, 6, 10, 50, 60
  • 36 hot-swap 3.5-inch SAS/SATA drive bays provide massive storage density in 4U
  • Quad 10GBase-T LAN via Intel X540 plus IPMI 2.0 dedicated management port

Technische Daten

BrandSUPERMICRO
SeriesCSE-847BE1C-R1K28LPB-X10DRi-T4+
ModelSYS-6048R-E1CR36N
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors InstalledE5-2683 V4
Installed Memory Size768GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T LAN with Intel X540 Ethernet Controller
Management PortRJ 45
Features36 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

How do I install the 36 drive trays and what step is often missed?

Slide each tray into the 24 front and 12 rear 3.5" bays until the latch clicks; the step often missed is seating the tray fully so the SAS/SATA backplane connector engages and the LED shows activity.

What maintenance will the MegaRAID 9361-8i controller need later?

The controller includes a 1GB cache with battery; monitor the battery health via the MegaRAID utility and replace the battery module when the controller logs a degradation alert to avoid write-cache loss.

What limit appears first under sustained load with the 1280W power supplies?

Each 1280W 80 Plus Platinum PSU delivers up to 1280W; with dual 145W TDP processors, 768GB DDR4, 36 drives and the 9361-8i card, the combined draw can approach the PSU rating, so power headroom is the first constraint.
