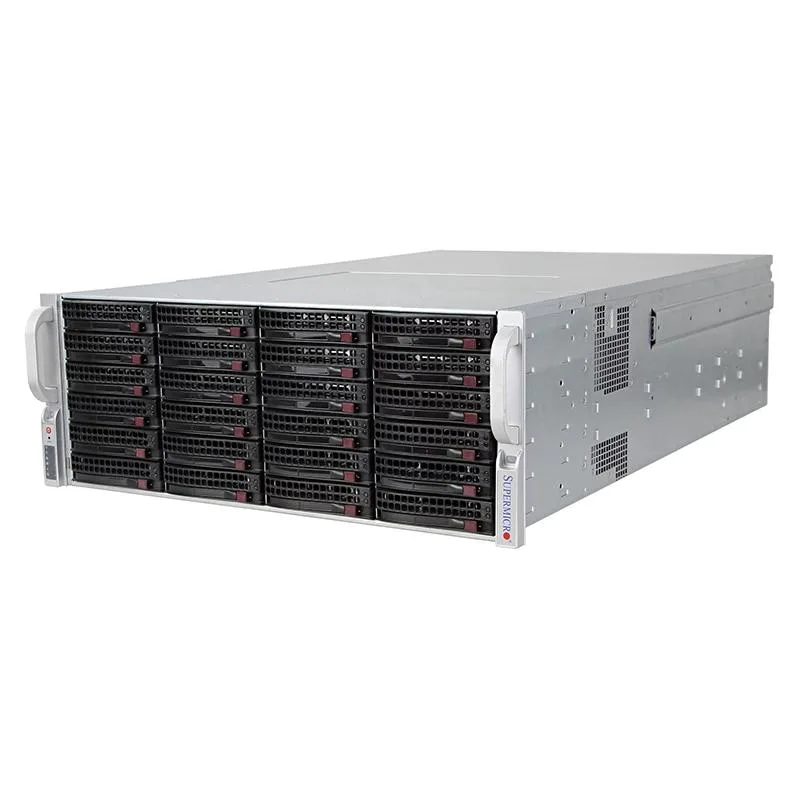

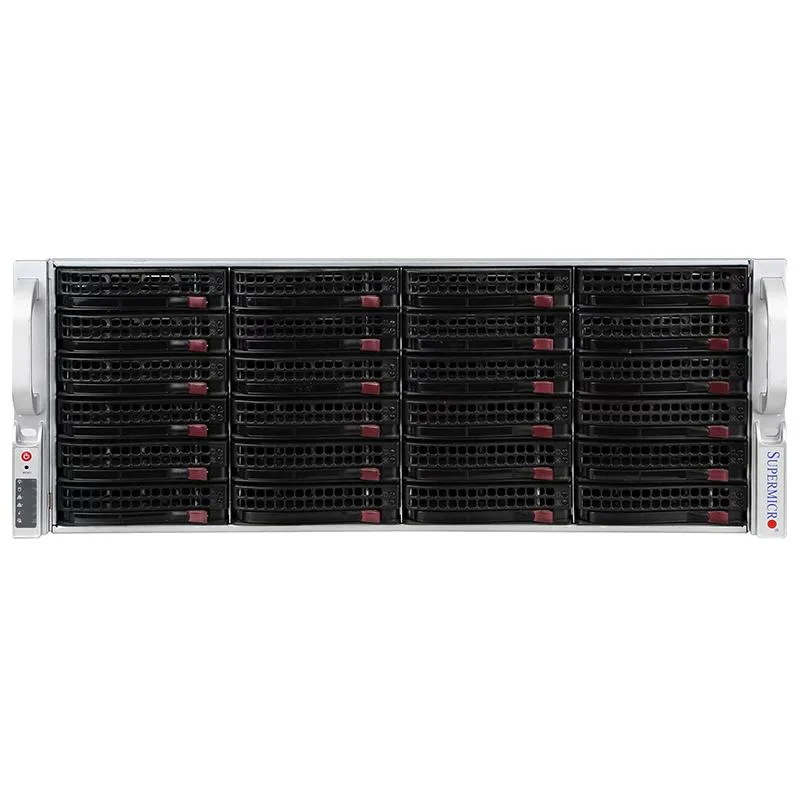

Silver 4U rack server with 36 front drive bays and dual power supplies

Supermicro

Supermicro SYS-6048R-E1CR36N 36-bay 4U rack server 2x Xeon E5-2683 v4 16-core 2.1GHz 32GB DDR4

SKU CH-HBGZ-8WQ7T

A 4U rack server with 36 hot-swap 3.5-inch drive bays, dual 16-core Xeon processors at 2.1GHz and 32GB DDR4 memory

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores16-Core Processor
  • Dual Xeon E5-2683 v4 16-core CPUs deliver 2.1 GHz base and 3.0 GHz turbo for demanding workloads
  • 32 GB DDR4 2400 MHz registered ECC memory across 4 modules ensures data integrity
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60 with 1 GB cache and battery backup
  • 36 hot-swap 3.5" SAS/SATA drive bays provide massive storage density in a 4U chassis
  • Quad 10GBase-T LAN ports via Intel X540 controller enable high-speed network connectivity

SuperStorage 36-bay 4U rack server

The Supermicro SYS-6048R-E1CR36N is a 4U rackmount server system built for high-density storage workloads. It ships with two Intel Xeon E5-2683 v4 16-core processors running at 2.1 GHz and 32 GB of DDR4 registered ECC memory. A MegaRAID 9361-8i controller provides hardware RAID across 36 hot-swap 3.5-inch drive bays.

Ideal for archive and throughput workloads

This platform suits organisations that need massive SAS or SATA capacity in a single chassis with quad 10GBase-T networking and IPMI 2.0 remote management. Buyers who require more than eight internal RAID ports or who need GPU compute density should evaluate other configurations.

36 hot-swap 3.5-inch drive bays

The defining specification is the 36-bay 3.5-inch hot-plug backplane supporting SATA and SAS drives. It determines whether the chassis matches your storage density and drive-type requirements before considering CPU, memory or networking details.

Besonderheiten

  • Dual Xeon E5-2683 v4 16-core CPUs deliver 2.1 GHz base and 3.0 GHz turbo for demanding workloads
  • 32 GB DDR4 2400 MHz registered ECC memory across 4 modules ensures data integrity
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60 with 1 GB cache and battery backup
  • 36 hot-swap 3.5" SAS/SATA drive bays provide massive storage density in a 4U chassis
  • Quad 10GBase-T LAN ports via Intel X540 controller enable high-speed network connectivity

Technische Daten

BrandSUPERMICRO
SeriesCSE-847BE1C-R1K28LPB-X10DRi-T4+
ModelSYS-6048R-E1CR36N
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors InstalledE5-2683 V4
Installed Memory Size32GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T LAN with Intel X540 Ethernet Controller
Management PortRJ 45
Features36 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

What SAS speed does the MegaRAID 9361-8i controller support, and how many drives can it address directly?

The MegaRAID 9361-8i is an 8-port SAS 12Gb/s controller with 1GB cache and battery backup; it connects to eight drives directly, and the remaining 28 bays are served through expanders on the backplane.

What physical parts are missing from the chassis that I must supply for rack installation?

The front bezel and rack-mount rails are not included; you will need to provide compatible rails and a bezel if you want a finished front panel.

How do I access the IPMI 2.0 interface for the first time, and what default credential mistake should I avoid?

Connect the dedicated RJ45 management port to your network, then browse to the DHCP-assigned address; the default user is ADMIN with password ADMIN, which must be changed on first login.
